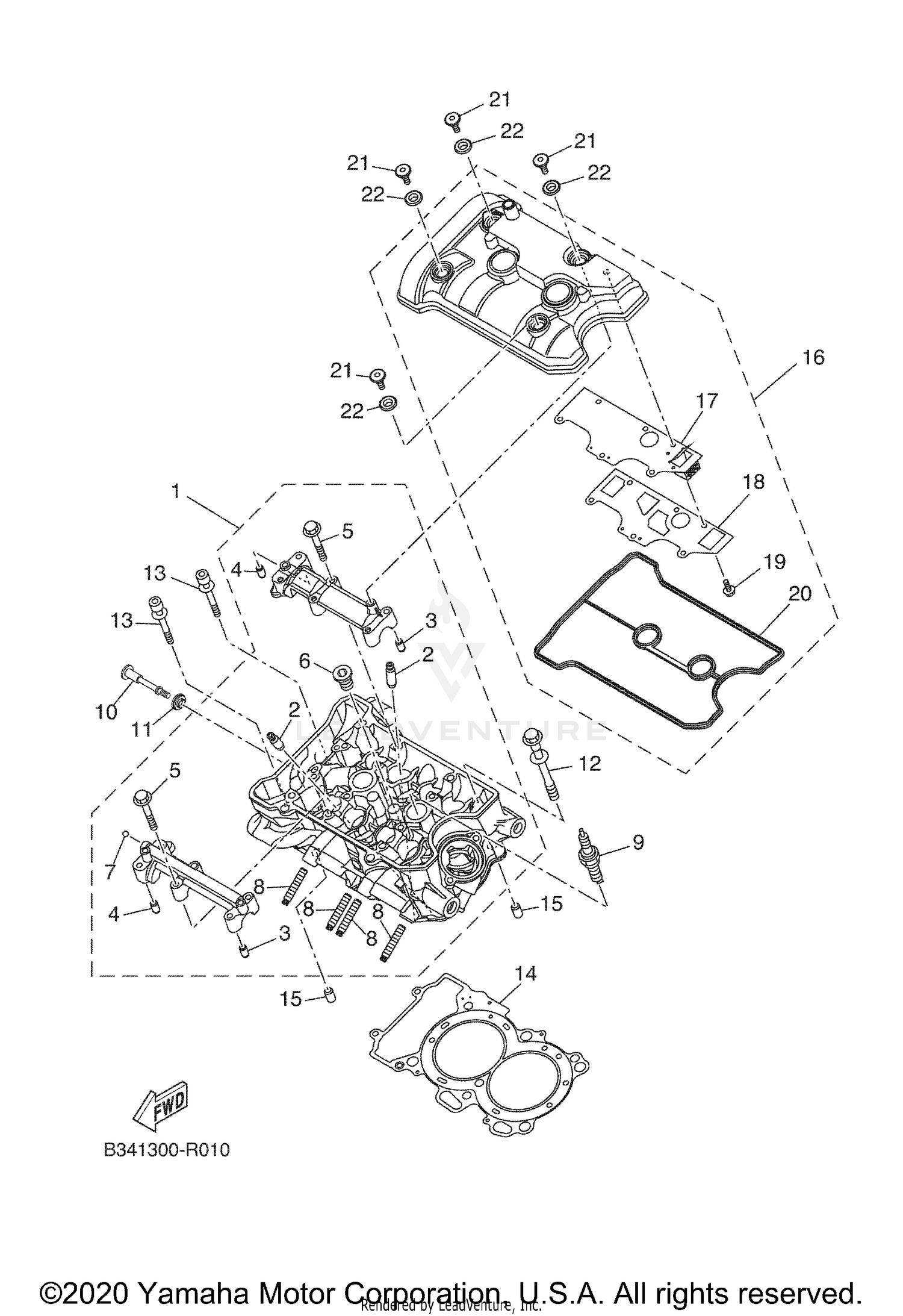

| Ref | Part Number | Description |
|---|
| 1 |
1WS-11101-08-00 |
CYLINDER HEAD ASSY This part replaces 1WS-11101-09-00. Price: $1,321.99 |
| 2 |
4D9-11133-10-00 |
GUIDE, VALVE 1 Price: $79.99 |
| 3 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 4 |
91808-16023-00 |
PIN, DOWEL Price: $7.99 |
| 5 |
90105-06027-00 |
BOLT, FLANGE Price: $8.49 |
| 6 |
90340-18002-00 |
PLUG, STRAIGHT SCREW Price: $11.49 |
| 7 |
93501-04011-00 |
BALL Price: $9.49 |
| 8 |
90116-08087-00 |
BOLT, STUD Price: $9.49 |
| 9 |
LMA-R8A9S-00-00 |
PLUG, SPARK (NGK LMAR8A-9) Price: $14.99 |
| 10 |
90109-06293-00 |
BOLT Price: $15.49 |
| 11 |
5VY-1111G-00-00 |
RUBBER, MOUNT 1 Price: $13.49 |
| 12 |
90119-10056-00 |
BOLT, WITH WASHER Price: $11.49 |
| 13 |
90110-06081-00 |
BOLT, HEXAGON SOCKET HEAD Price: $2.99 |
| 14 |
1WS-11181-00-00 |
GASKET, CYLINDER HEAD 1 Price: $56.99 |
| 15 |
99530-10114-00 |
PIN, DOWEL Price: $2.65 |
| 17 |
1WS-11165-01-00 |
PLATE, BREATHER Price: $16.49 |
| 18 |
1WS-11169-00-00 |
GASKET, BREATHER COVER Price: $12.99 |
| 19 |
90105-05025-00 |
BOLT, FLANGE This part replaces 90105-05024-00. Price: $1.15 |
| 20 |
1WS-11193-01-00 |
GASKET, HEAD COVER 1 Price: $28.99 |
| 21 |
90109-066F0-00 |
BOLT Price: $9.49 |
