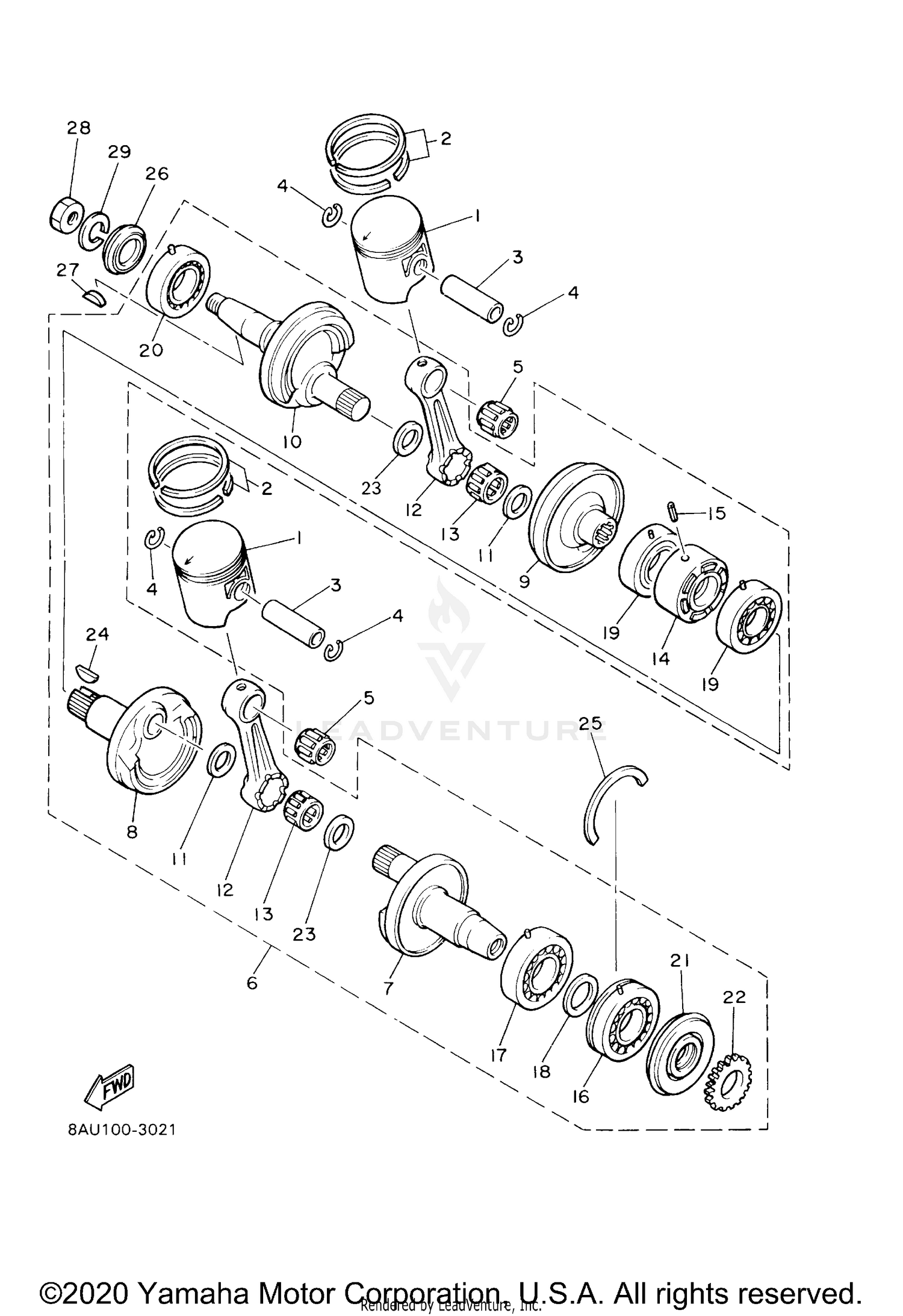

| Ref | Part Number | Description |
|---|
| 1 |
8R6-11631-00-95 |
PISTON (STD) Price: $185.99 |
| 2 |
8R6-11601-00-00 |
PISTON RING SET (STD) Price: $76.99 |
| 3 |
8H8-11633-00-00 |
PIN, PISTON Price: $39.99 |
| 4 |
93450-21053-00 |
CIRCLIP Price: $3.85 |
| 5 |
93310-320G0-00 |
BEARING Price: $51.99 |
| 6 |
8AT-11400-01-00 |
CRANKSHAFT ASSY Price: $1,284.99 |
| 7 |
83R-11412-01-00 |
CRANK 1 Price: $347.99 |
| 8 |
8H8-11422-01-00 |
CRANK 2 Price: $249.99 |
| 9 |
8H8-11432-01-00 |
CRANK 3 Price: $234.99 |
| 10 |
8AT-11442-00-00 |
CRANK 4 Price: $323.99 |
| 11 |
90209-24073-00 |
WASHER, SPECIAL SHAPE Price: $16.49 |
| 12 |
8R6-11651-00-00 |
ROD, CONNECTING Price: $127.99 |
| 13 |
93310-524K4-00 |
BEARING Price: $129.99 |
| 14 |
8H8-11515-00-00 |
SEAL, LABYRINTH 1 Price: $40.99 |
| 15 |
91690-30010-00 |
PIN, SPRING This part replaces 91609-30010-00. Price: $6.15 |
| 16 |
93306-30627-00 |
BEARING Price: $108.99 |
| 17 |
93306-30627-00 |
BEARING This part replaces 93306-30628-00. Price: $108.99 |
| 18 |
90201-34683-00 |
WASHER, PLATE (90201-33299-00) This part replaces 90201-33299-00. Price: $11.49 |
| 19 |
93306-20617-00 |
BEARING (B6206) Price: $82.99 |
| 20 |
93306-20617-00 |
BEARING (B6206) This part replaces 93306-20620-00. Price: $82.99 |
| 21 |
93103-32095-00 |
OIL SEAL Price: $37.99 |
| 22 |
8K2-13178-00-00 |
GEAR, PUMP DRIVE Price: $49.99 |
| 23 |
8A7-11685-00-00 |
WASHER, CRANK PIN Price: $13.49 |
| 24 |
90280-05014-00 |
KEY, WOODRUFF Price: $10.49 |
| 25 |
93440-78069-00 |
CIRCLIP Price: $8.49 |
| 26 |
93103-32156-00 |
OIL SEAL Price: $34.99 |
| 27 |
90280-05002-00 |
KEY, WOODRUFF Price: $4.60 |
| 28 |
90170-16425-00 |
NUT Price: $10.49 |
