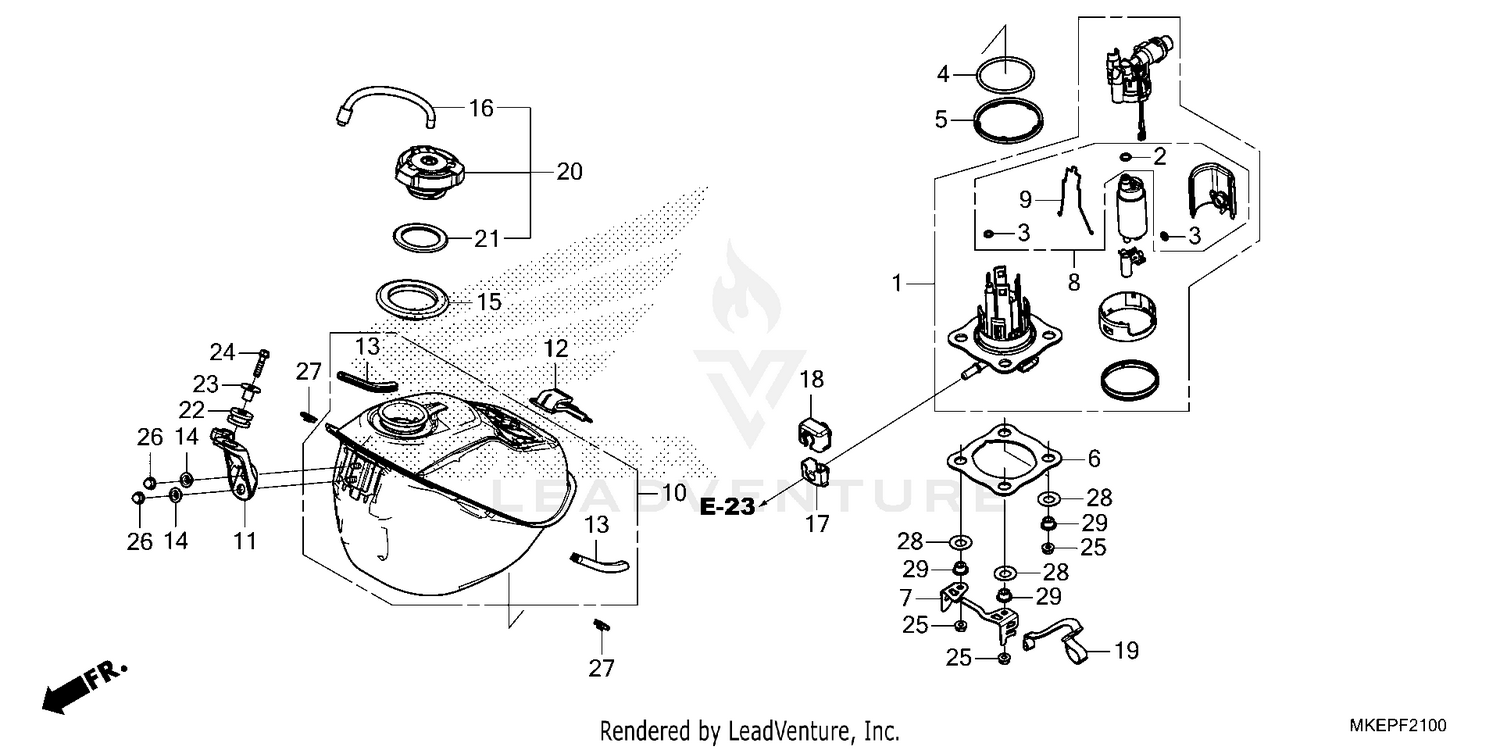

| Ref | Part Number | Description |
|---|
| 1 |
16700-MKE-AF3 |
PUMP ASSY., FUEL (MSDS) Price: $469.18 |
| 2 |
16702-KPC-D50 |
O-RING (8.6X1.9) Price: $0.64 |
| 3 |
16706-GGL-J01 |
O-RING (6.8X1.9) Price: $6.09 |
| 4 |
16711-MKE-AF0 |
O-RING (3.7X57.8) Price: $16.85 |
| 5 |
16712-MKE-AF0 |
DUST SEAL Price: $13.27 |
| 6 |
16713-MKE-AF0 |
PLATE, FUEL PUMP Price: $15.89 |
| 7 |
16714-MKE-AF0 |
GUARD, FUEL JOINT Price: $20.98 |
| 8 |
16715-MKE-AF3 |
FILTER SET Price: $87.51 |
| 9 |
16719-MKE-AF1 |
CLIP Price: $4.00 |
| 10 |
17500-MKE-AF0 |
TANK ASSY., FUEL Price: $1,070.27 |
| 11 |
17516-MKE-AF0 |
STAY, FR. FUEL TANK Price: $8.93 |
| 12 |
17517-MKE-AF0 |
BAND, RR. TANK Price: $16.71 |
| 13 |
17518-MFN-D00 |
TRIM, FUEL TANK Price: $3.20 |
| 14 |
17518-MKE-AF0 |
COLLAR, FR. TANK STAY Price: $5.05 |
| 15 |
17519-MKE-AF0 |
DUST SEAL Price: $7.95 |
| 16 |
17521-MKE-A70 |
TUBE, FUEL CAP BREATHER Price: $6.49 |
| 17 |
17575-MKE-AF0 |
COVER, FUEL CONNECTOR Price: $6.85 |
| 18 |
17576-KRN-A90 |
RUBBER, FUEL CONNECTOR Price: $7.40 |
| 19 |
17577-MKE-AF0 |
STRAP, FUEL TANK Price: $5.91 |
| 20 |
17620-MKE-AF0 |
CAP ASSY., FUEL TANK Price: $104.11 |
| 21 |
17624-KT1-781 |
GASKET, FUEL CAP Price: $6.05 |
| 22 |
18334-KA3-830 |
RUBBER, MUFFLER Price: $4.89 |
| 23 |
19052-MAC-680 |
COLLAR, RADIATOR MOUNTING Price: $6.45 |
| 24 |
90020-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.58 |
| 25 |
90217-HW1-670 |
NUT, FLANGE (6MM) (Honda Code 7039662) Price: $2.04 |
| 26 |
90301-MKE-A00 |
NUT, FLANGE CAP (6MM) Price: $4.33 |
| 27 |
90301-MKE-AF0 |
NUT, CLIP (5MM) Price: $3.18 |
| 28 |
90502-MEN-A30 |
WASHER, CONICAL SPRING FUEL PUMP Price: $3.04 |
