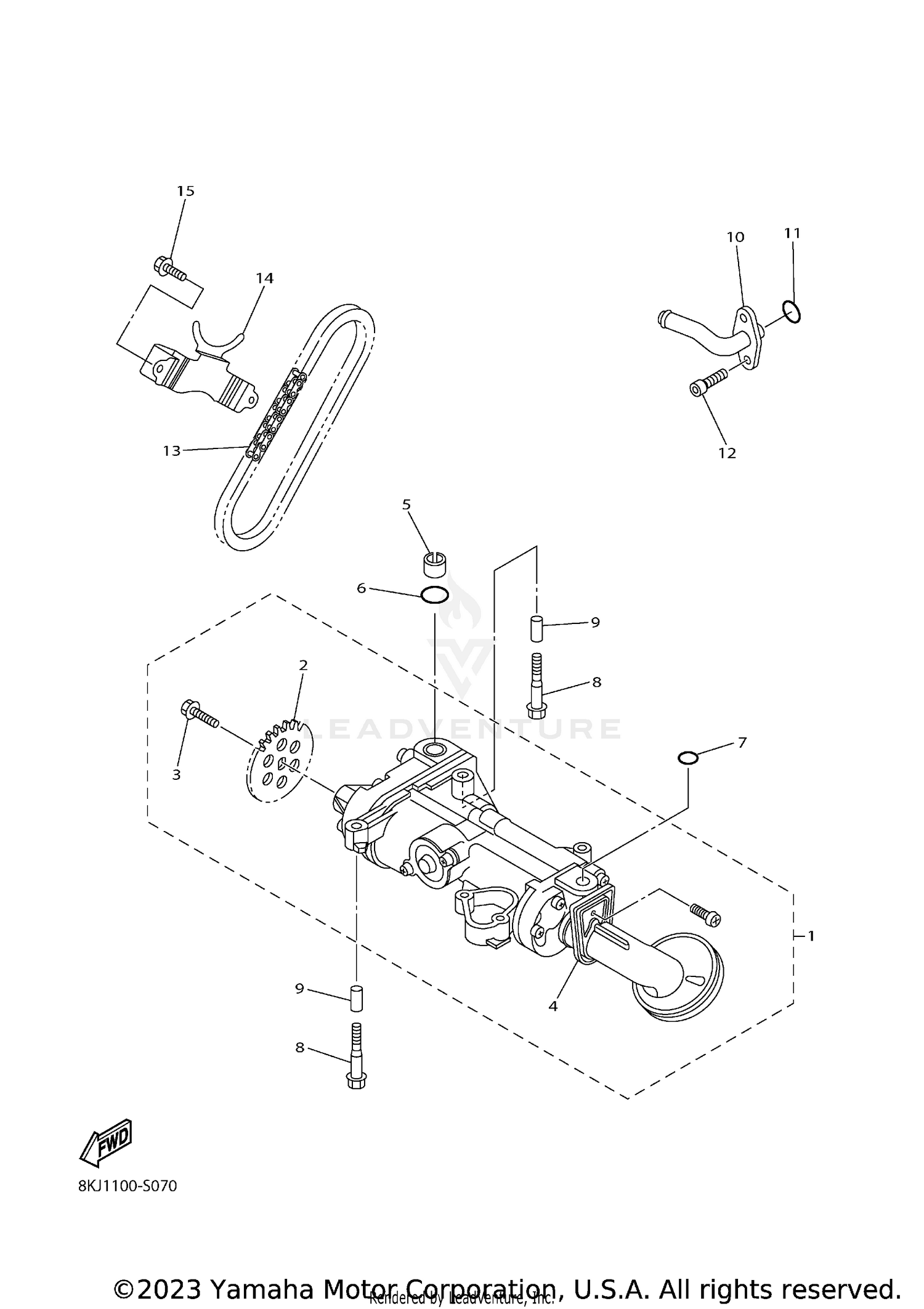

OIL PUMP
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8KJ-13300-00-00 | OIL PUMP ASSY Price: $624.99 |
| 2 | 8KJ-13355-00-00 | SPROCKET, DRIVEN Price: $51.99 |
| 3 | 90105-06066-00 | BOLT, FLANGE Price: $9.49 |
| 4 | 8ES-13427-00-00 | SPACER, STRAINER Price: $19.99 |
| 5 | 8ES-13284-00-00 | PIPE Price: $5.49 |
| 6 | 93210-18322-00 | O-RING Price: $5.60 |
| 7 | 93210-14579-00 | O-RING Price: $7.49 |
| 8 | 95817-06040-00 | BOLT, FLANGE This part replaces 95812-06040-00. Price: $6.49 |
| 9 | 91808-22019-00 | PIN, DOWEL Price: $10.49 |
| 10 | 8KJ-13115-00-00 | CONNECTOR, SUCTION PIPE Price: $36.99 |
| 11 | 93210-16629-00 | O-RING Price: $8.49 |
| 12 | 91312-06016-00 | BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 13 | 94580-25064-00 | CHAIN (DID25 64LE) Price: $12.49 |
| 14 | 8ES-13898-01-00 | HOLDER Price: $32.99 |
