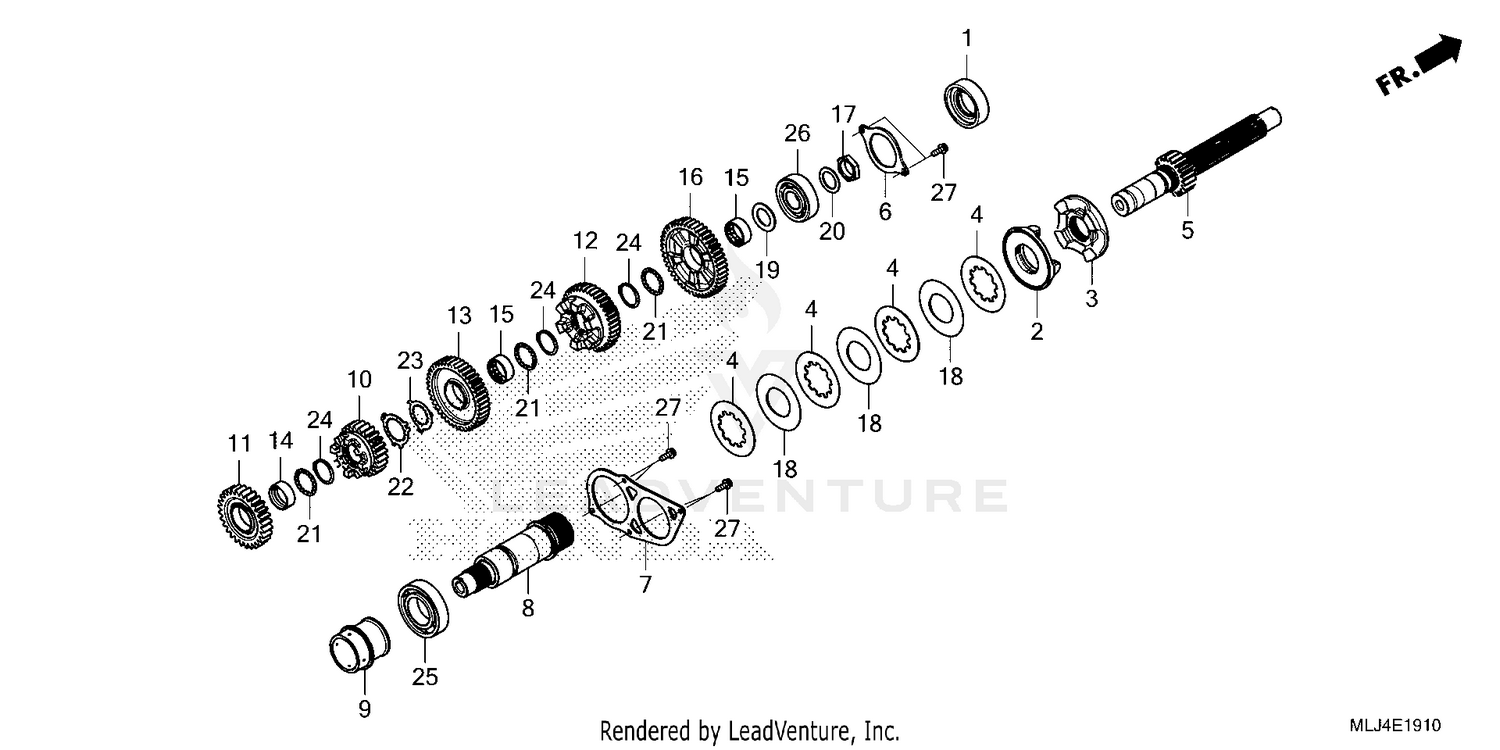

| Ref | Part Number | Description |
|---|
| 1 |
11371-MKC-A20 |
RUBBER A, BEARING Price: $10.96 |
| 2 |
23112-MKC-A20 |
LIFTER, MAIN DAMPER Price: $51.02 |
| 3 |
23113-MKC-A20 |
CAM, MAIN DAMPER Price: $49.75 |
| 4 |
23114-MKC-A20 |
SPRING, MAIN DAMPER Price: $13.36 |
| 5 |
23211-MKC-A20 |
MAINSHAFT (20T) Price: $248.67 |
| 6 |
23212-MKC-A00 |
PLATE A, BEARING SETTING Price: $17.20 |
| 7 |
23213-MKC-A00 |
PLATE B, BEARING SETTING Price: $23.25 |
| 8 |
23231-MKC-A20 |
MAINSHAFT (OUTER) (23T) Price: $280.29 |
| 9 |
23235-MKC-A00 |
COLLAR, CLUTCH (OUTER) Price: $47.33 |
| 10 |
23431-MKC-A20 |
GEAR, MAINSHAFT SECOND (24T) Price: $135.07 |
| 11 |
23451-MKC-A20 |
GEAR, MAINSHAFT THIRD (28T) Price: $126.13 |
| 12 |
23471-MKC-A20 |
GEAR, MAINSHAFT FOURTH (39T) Price: $152.55 |
| 13 |
23491-MKC-A20 |
GEAR, MAINSHAFT FIFTH (42T) Price: $143.02 |
| 14 |
23492-HL4-000 |
COLLAR (32X35X13.5) Price: $18.87 |
| 15 |
23492-MKC-A20 |
COLLAR, SPLINE (32X35X14) Price: $21.16 |
| 16 |
23531-MKC-A00 |
GEAR, MAINSHAFT TOP (46T) Price: $149.36 |
| 17 |
90231-MCH-000 |
NUT, LOCK (25MM) Price: $8.53 |
| 18 |
90410-MKC-A20 |
WASHER (42.2X81X1) Price: $9.16 |
| 19 |
90417-HL4-000 |
WASHER, SPECIAL (25X40X2) Price: $5.56 |
| 20 |
90451-VM0-000 |
WASHER, THRUST (25X40X2) Price: $6.85 |
| 21 |
90452-MCA-000 |
WASHER, SPLINE (32X17X1.667) Price: $3.15 |
| 22 |
90466-MKC-A20 |
WASHER, SPLINE (32MM) Price: $7.11 |
| 23 |
90469-MKC-A20 |
WASHER, LOCK (32MM) Price: $4.87 |
| 24 |
90604-MCA-780 |
CIRCLIP (32MM) Price: $3.95 |
| 25 |
91023-MKC-A01 |
BEARING, RADIAL BALL (40X76X18) Price: $45.71 |
| 26 |
91024-MKC-A01 |
BEARING, RADIAL BALL (25X62X17) (EC) Price: $31.98 |
