| Ref | Part Number | Description |
|---|
| 1 |
31200-MKC-A01 |

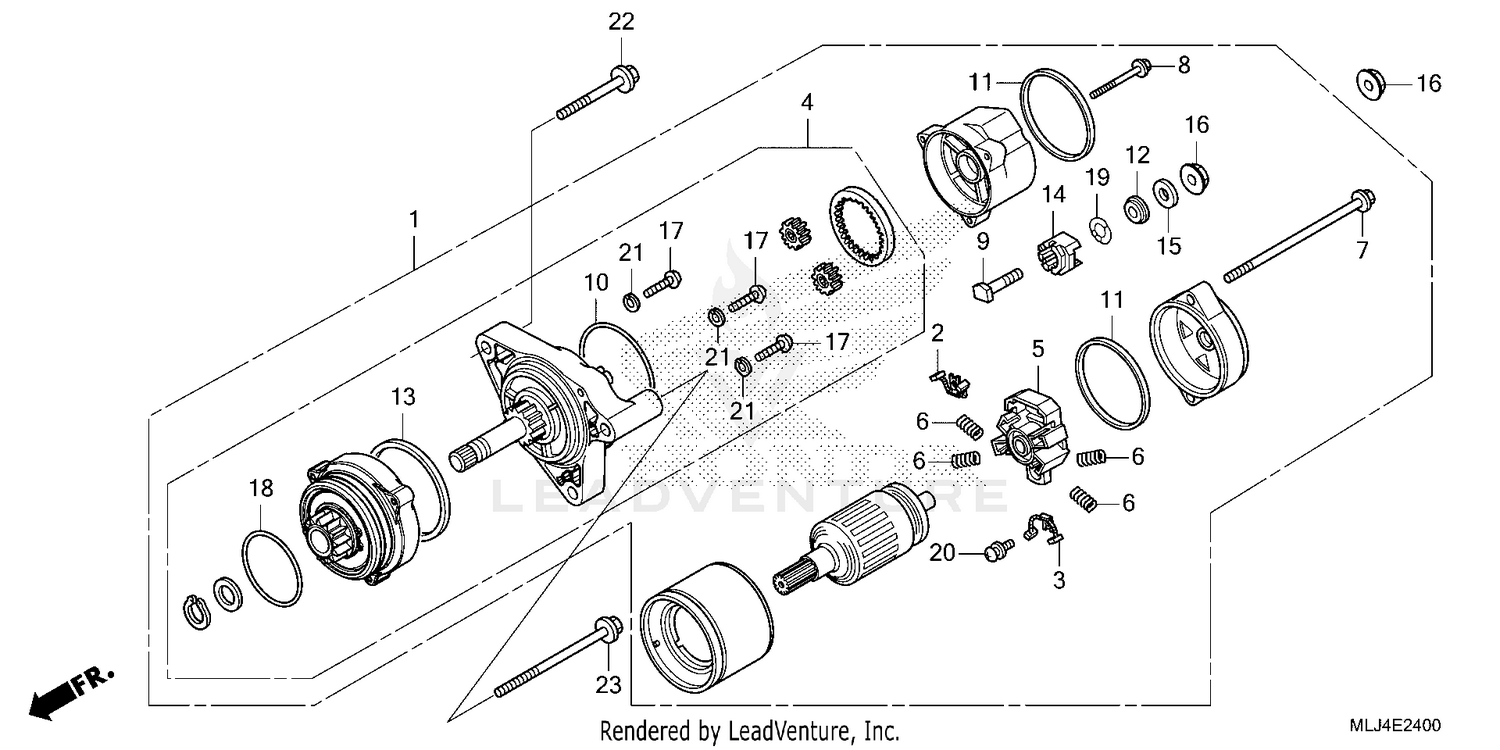

MOTOR ASSY., REVERSE Price: $745.36 |
| 2 |
31201-MEW-921 |
BRUSH SET A, CARBON (Honda Code 8476772) Price: $9.78 |
| 3 |
31202-MEW-921 |
BRUSH SET B, CARBON (Honda Code 8476780) Price: $15.85 |
| 4 |
31202-MKC-A01 |
GEAR ASSY. Price: $429.98 |
| 5 |
31203-MEW-921 |
HOLDER, BRUSH (Honda Code 8614117) Price: $9.40 |
| 6 |
31204-MEW-921 |
SPRING, CARBON BRUSH (Honda Code 8476798) Price: $15.30 |
| 7 |
31205-HM8-B61 |
BOLT SET Price: $4.78 |
| 8 |
31205-MKC-A01 |
BOLT (M5X30) Price: $2.35 |
| 9 |
31206-MEW-921 |
BOLT, TERMINAL Price: $3.35 |
| 10 |
31207-179-711 |
RING, SEAL Price: $5.31 |
| 11 |
31207-HP5-601 |
RING Price: $2.45 |
| 12 |
31208-MEW-921 |
INSULATOR (Honda Code 8476822) Price: $8.75 |
| 13 |
31208-MG9-004 |
RING Price: $6.35 |
| 14 |
31209-MEW-921 |
STOPPER, TERMINAL (Honda Code 8476830) Price: $12.98 |
| 15 |
31210-MEW-921 |
WASHER Price: $2.07 |
| 16 |
90071-MB0-000 |
NUT-WASHER (6MM) Price: $2.36 |
| 17 |
91001-MN5-008 |
BOLT (5X39) Price: $3.60 |
| 18 |
91309-MN5-008 |
O-RING (59.6X2.4) Price: $10.49 |
| 19 |
91320-MB0-000 |
O-RING (Honda Code 1292184) Price: $2.76 |
| 20 |
93892-05012-08 |
SCREW-WASHER (5X12) (Honda Code 0368621) Price: $1.20 |
| 21 |
94111-05000 |
WASHER, SPRING (5MM) Price: $1.18 |
| 22 |
95701-08038-00 |
BOLT, FLANGE (8X38) Price: $1.73 |
