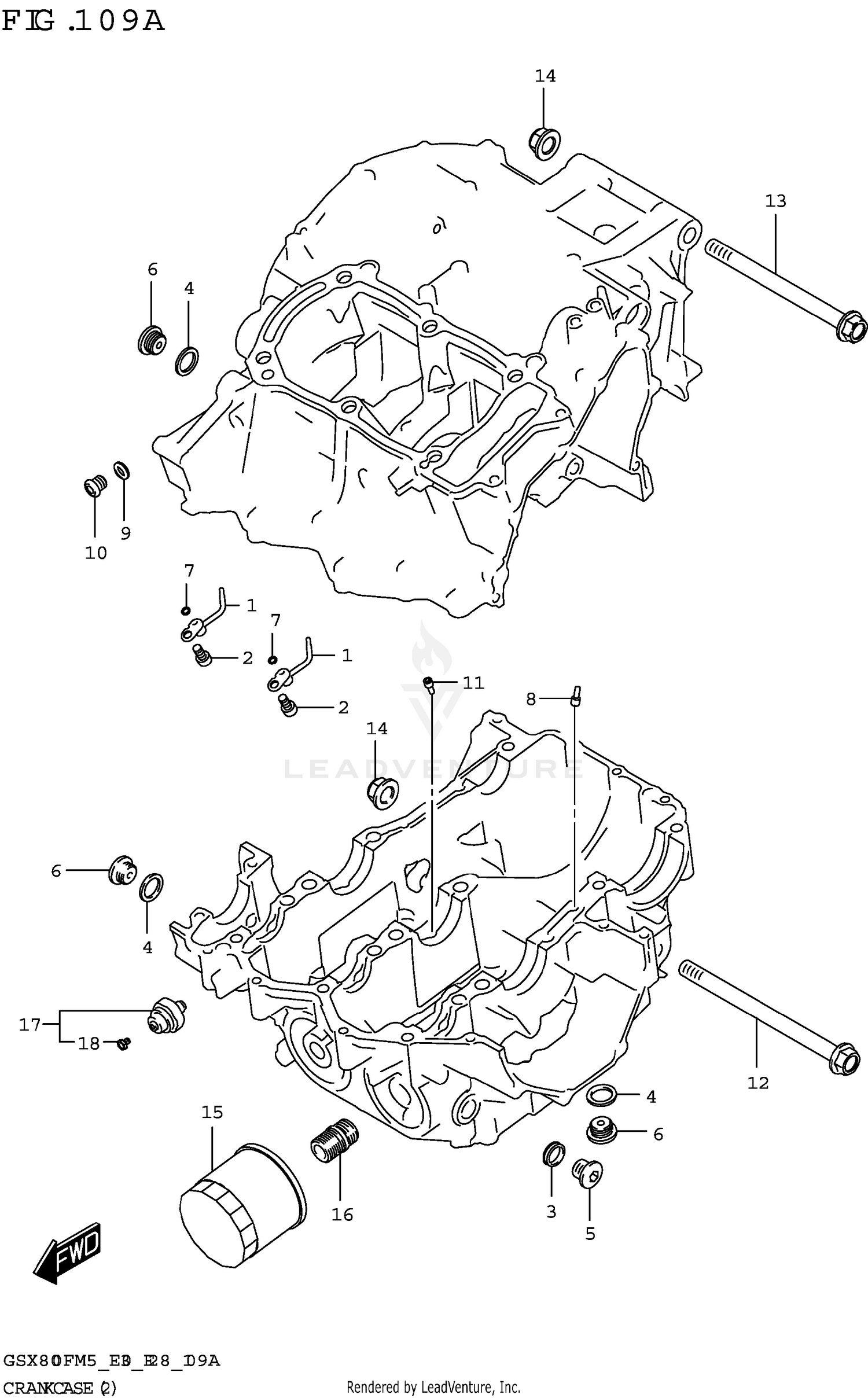

CRANKCASE (2)
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11390-25L00 | JET,PISTON COOLING Price: $30.30 |
| 2 | 09106-06075 | BOLT (6X12) Price: $3.02 |
| 3 | 09168-14002 | GASKET (13.8X18.8X4.8) Price: $2.75 |
| 4 | 09168-16002 | GASKET (16X22X2) Price: $2.30 |
| 5 | 09248-14011 | PLUG (14X12) Price: $3.68 |
| 6 | 09248-16012 | PLUG (16X8) Price: $5.66 |
| 7 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 8 | 09493-28012 | JET (#140) Price: $17.72 |
| 9 | 09168-10002 | GASKET (10X14X3.6) Price: $2.22 |
| 10 | 09248-10010 | PLUG (10X10) Price: $5.16 |
| 11 | 09493-22010 | JET Price: $10.82 |
| 12 | 09103-12143 | BOLT (L:165) Price: $12.46 |
| 13 | 09103-12144 | BOLT (L:145) Price: $9.93 |
| 14 | 09159-12072 | NUT Price: $9.98 |
| 15 | 16510-07J10 | FILTER ASSY, ENGINE OIL This part replaces 16510-07J00. Price: $16.18 |
| 16 | 16591-06B01 | UNION,OIL STAND Price: $8.70 |
| 17 | 37820-33D11 | SWITCH ASSY,OIL PRESSURE Price: $26.40 |
