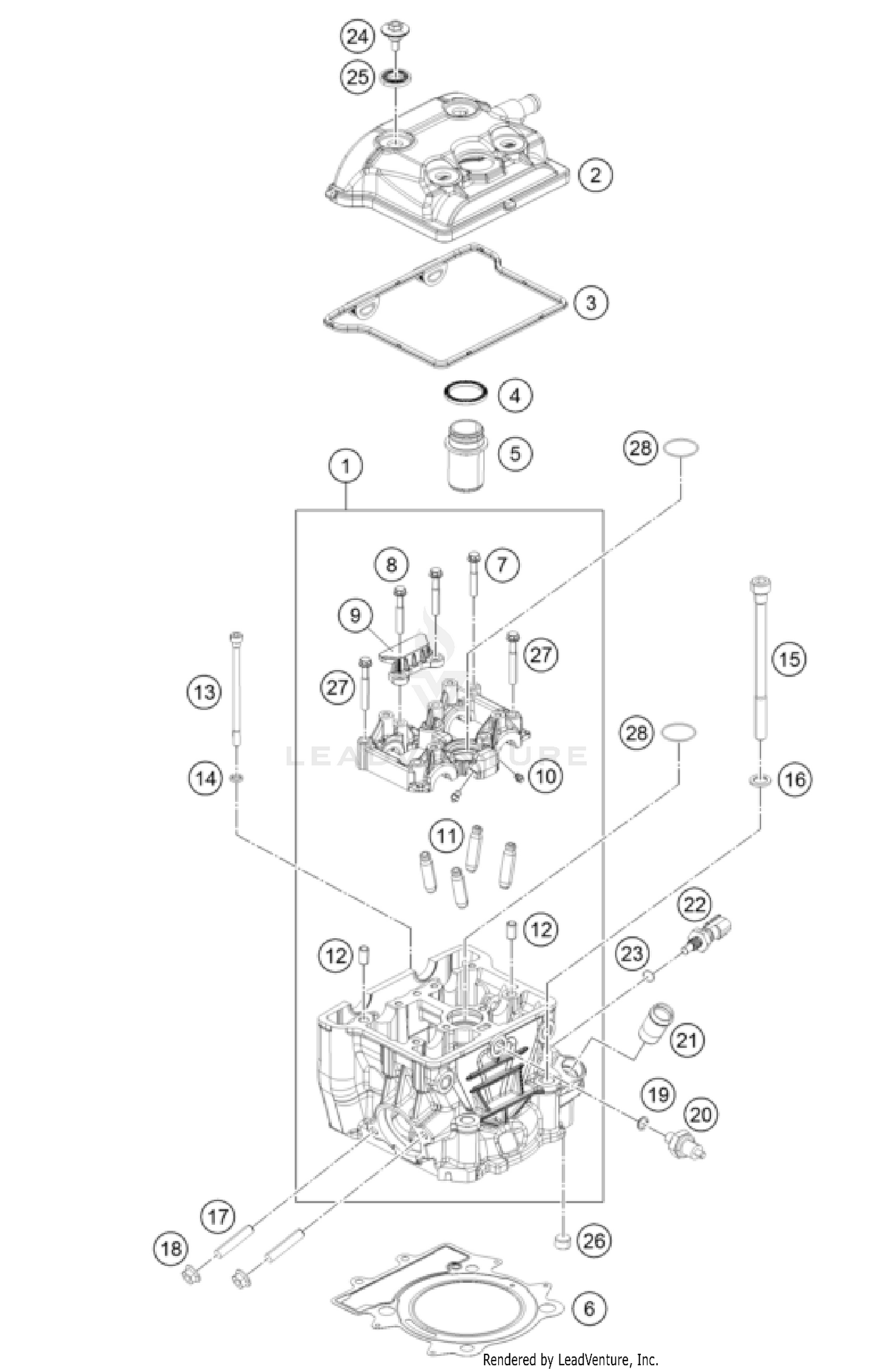

CYLINDER HEAD
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 93836020033C1 | CYL. HEAD WITH CAMHOLDER JY511137- BLACK Price: $373.22 |
| 2 | 93336052100C1 | CYLINDER HEAD COVER ASSLY Price: $42.67 |
| 3 | 93836053000 | Gasket rubber Price: $25.63 |
| 4 | 90236054000 | GASKET SPARK PLUG SHAFT Price: $3.99 |
| 5 | 90236074000 | SPARK PLUG SHAFT Price: $21.59 |
| 6 | 93830036000 | Gasket Cylinder Head Price: $43.65 |
| 7 | J025060359 | Hexagon screw M6X35 Price: $1.99 |
| 8 | J025060453 | HH COLLAR SCREW M6X45 Price: $1.99 |
| 9 | 90236018000 | CHAIN GUIDE TOP Price: $4.99 |
| 10 | 90130064000 | OIL JET Price: $7.14 |
| 11 | 90236025100 | Valve guide This part replaces 90236025000. Price: $3.99 |
| 12 | 90130024000 | PIN DOWEL 8X6,4X14MM Price: $1.99 |
| 14 | J125070003 | WASHER 7X11X2 Price: $1.99 |
| 15 | J912101449 | SOCKET HEAD SCREW M10X144 Price: $7.84 |
| 16 | J125110003 | WASHER 11,2X18X2 Price: $1.99 |
| 17 | 90136020001 | STUD M8 Price: $2.99 |
| 18 | 90136038000 | FLANGED NUT M8 H7,5 WS12 Price: $1.99 |
| 19 | 90138091001 | O-RING Price: $2.99 |
| 20 | 90138091000 | OIL PRESSURE SENSOR Price: $19.74 |
| 21 | 90235019000 | PIPE COOLANT Price: $3.99 |
| 22 | 90135047000 | TEMPERATURE SENSOR Price: $27.59 |
| 23 | 90135047001 | O-RING Price: $2.41 |
| 24 | 90136052020 | VALVE COVER SCREW Price: $3.99 |
| 25 | 90136052010 | DECOUPLING ELEMENT Price: $3.99 |
| 26 | 90236024000 | PLUG Price: $2.99 |
| 27 | J025060401 | HH COLLAR SCREW M6X40 Price: $1.99 |
