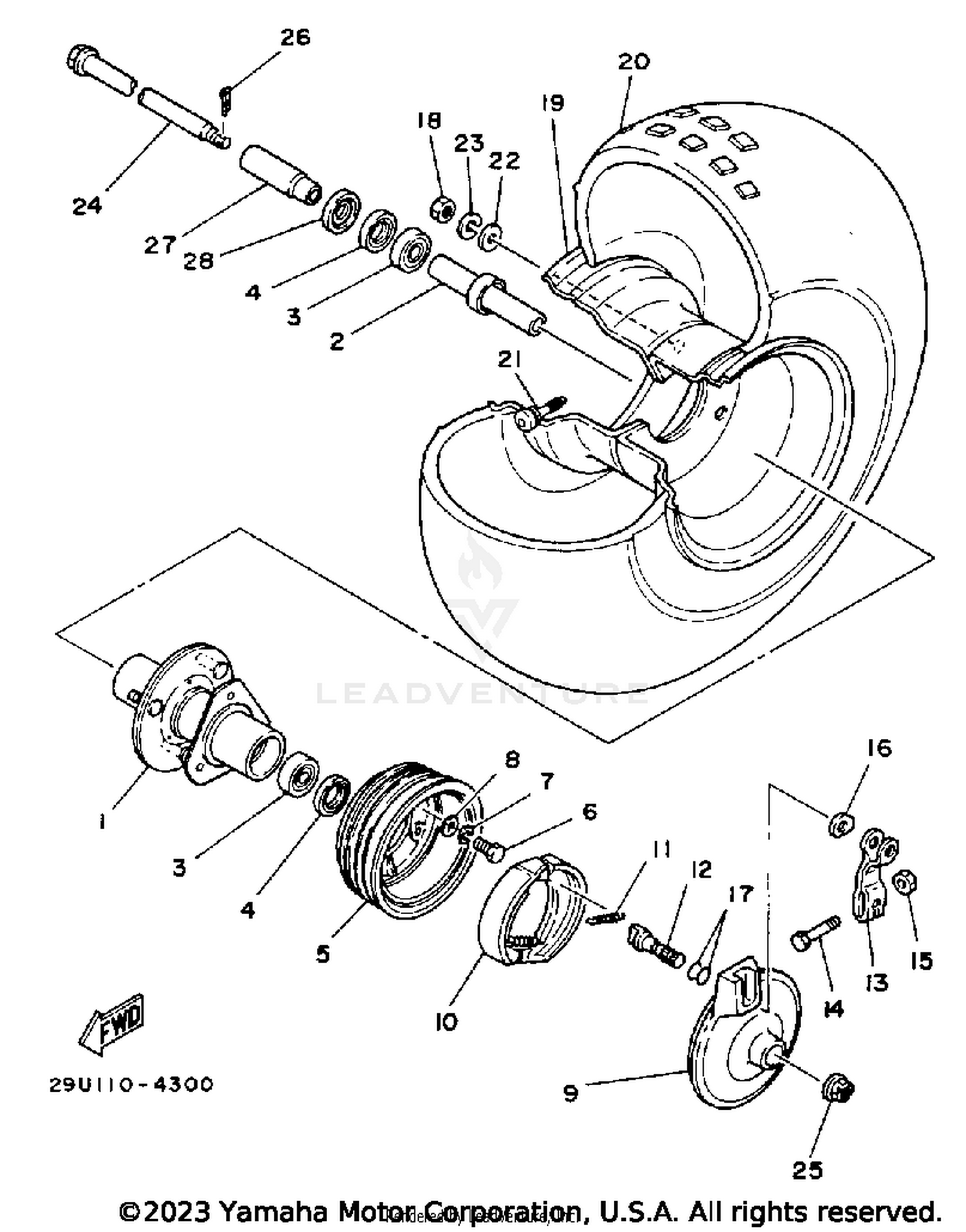

FRONT WHEEL YTM200L
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 29U-25111-00-00 | HUB,FRONT Price: $199.99 |
| 2 | 29U-25117-00-00 | SPACER, BEARING Price: $32.99 |
| 3 | 93306-20310-00 | BEARING (B6203DU) Price: $41.99 |
| 4 | 93102-23252-00 | OIL SEAL Price: $16.49 |
| 5 | 5V7-2511E-00-35 | DRUM, BRAKE This part replaces 5V7-2511E-00-00. Price: $239.99 |
| 6 | 97013-08020-00 | BOLT (661) This part replaces 97313-08020-00. Price: $1.80 |
| 7 | 92990-08100-00 | WASHER, SPRING Price: $5.60 |
| 15 | 95380-06600-00 | NUT, HEXAGON Price: $4.80 |
| 16 | 5V7-2513A-00-00 | PLATE, INDICATOR Price: $7.49 |
| 17 | 93210-14579-00 | O-RING This part replaces 93210-14104-00. Price: $7.49 |
| 18 | 95314-10600-00 | NUT This part replaces 95311-10600-00. Price: $2.55 |
| 21 | 93900-00030-00 | VALVE, RIM (TR412) Price: $18.49 |
