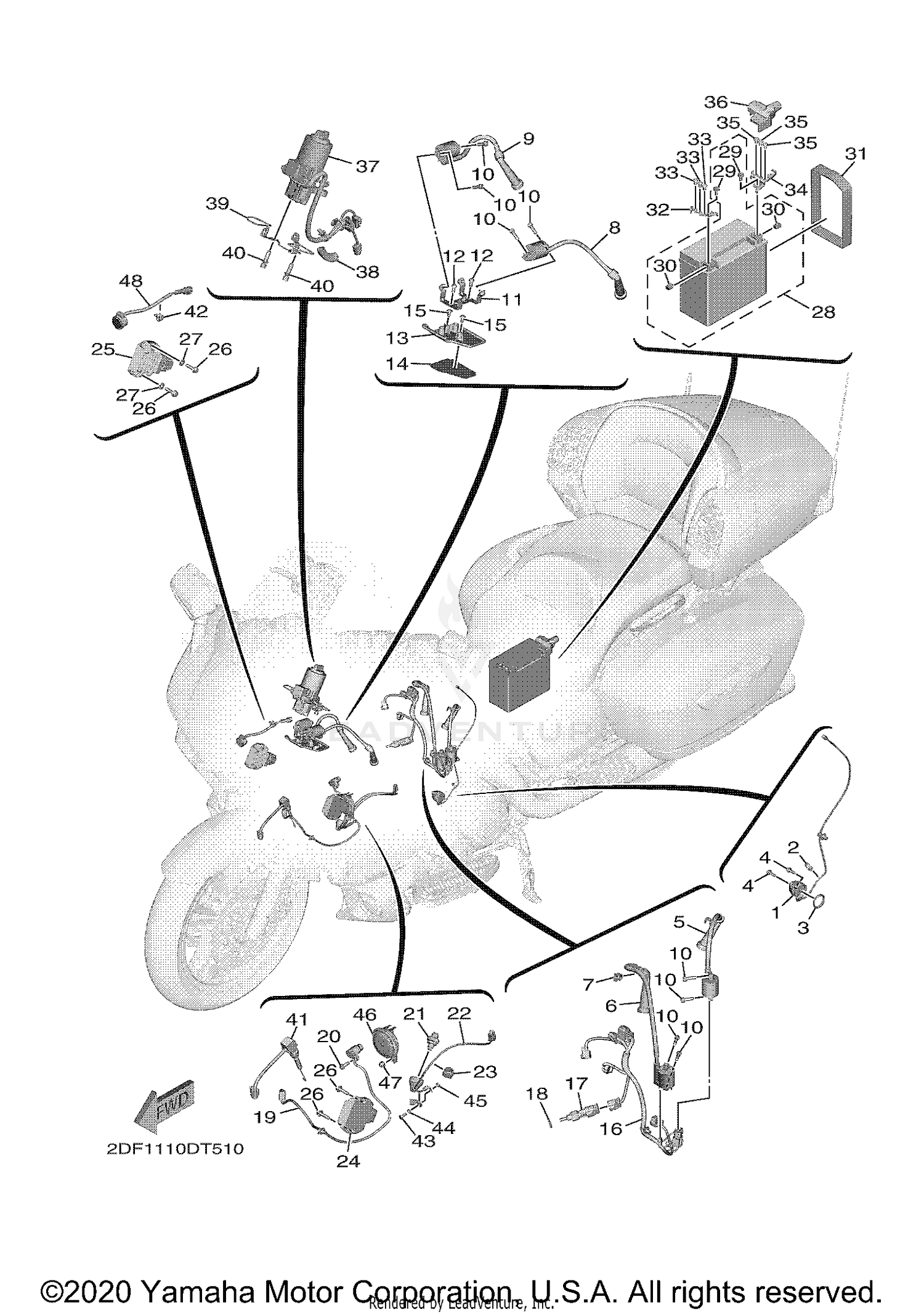

| Ref | Part Number | Description |
|---|
| 1 |
2DF-82540-00-00 |
NEUTRAL SWITCH ASSY Price: $41.99 |
| 2 |
90464-14003-00 |
CLAMP Price: $39.99 |
| 3 |
93210-29196-00 |
O-RING Price: $9.49 |
| 4 |
90110-05038-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-05067-00. Price: $8.49 |
| 5 |
2DF-82330-00-00 |
IGNITION COIL SUB-ASSY This part replaces 2DF-82330-01-00. Price: $76.99 |
| 6 |
2DF-82330-10-00 |
IGNITION COIL SUB-ASSY This part replaces 2DF-82330-11-00. Price: $86.99 |
| 7 |
90464-13133-00 |
CLAMP Price: $9.49 |
| 8 |
2DF-82330-00-00 |
IGNITION COIL SUB-ASSY This part replaces 2DF-82330-01-00. Price: $76.99 |
| 9 |
2DF-82330-30-00 |
IGNITION COIL SUB-ASSY This part replaces 2DF-82330-31-00. Price: $62.99 |
| 10 |
90110-06114-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06213-00. Price: $11.49 |
| 11 |
2DF-21359-00-00 |
BRACKET, COIL Price: $15.49 |
| 12 |
92017-06012-00 |
BOLT, BUTTON HEAD Price: $2.65 |
| 13 |
2DF-28397-00-00 |
PLATE 2 Price: $12.99 |
| 14 |
2DF-21266-00-00 |
SHEET 1 Price: $3.70 |
| 15 |
97707-50014-00 |
SCREW, TRUSS HEAD TAPPING This part replaces 97702-50014-00. Price: $9.49 |
| 16 |
2DF-81441-00-00 |
LEAD WIRE ASSY Price: $81.99 |
| 17 |
5PX-83591-00-00 |
THERMO UNIT Price: $201.99 |
| 18 |
90201-12172-00 |
WASHER, PLATE Price: $3.45 |
| 19 |
2DF-85896-01-00 |
SENSOR, CAM POSITION This part replaces 2DF-85896-00-00. Price: $99.99 |
| 20 |
91317-06016-00 |
BOLT (4MY) This part replaces 90110-06193-00. Price: $1.25 |
| 21 |
1WS-82504-01-00 |
OIL PRESSURE SWITCH ASSY This part replaces 1WS-82504-00-00. Price: $76.99 |
| 22 |
2DF-81315-00-00 |
LEAD WIRE ASSY Price: $41.99 |
| 23 |
90464-16003-00 |
CLAMP Price: $7.60 |
| 24 |
2CR-81960-01-00 |
RECTIFIER & REGULATOR ASSY This part replaces 2CR-81960-00-00. Price: $183.99 |
| 25 |
2CR-81960-01-00 |
RECTIFIER & REGULATOR ASSY This part replaces 2CR-81960-00-00. Price: $183.99 |
| 26 |
95817-06025-00 |
BOLT, FLANGE This part replaces 90105-06092-00. Price: $1.75 |
| 27 |
90201-063A5-00 |
WASHER, PLATE Price: $10.49 |
| 28 |
YTX-20LBS-00-00 |
YTX20LBS YUASA BATT This part replaces 2DF-82100-22-00. Price: $165.99 |
| 29 |
2DF-81892-00-00 |
BOLT, SPECIAL Price: $13.49 |
| 30 |
2DF-82557-00-00 |
NUT Price: $13.49 |
| 31 |
4AS-82131-01-00 |
BAND, BATTERY Price: $16.49 |
| 32 |
2DF-82103-00-00 |
TERMINAL 1 Price: $15.99 |
| 33 |
98502-06008-00 |
SCREW, PAN HEAD Price: $9.49 |
| 34 |
2DF-8215C-00-00 |
TERMINAL Price: $24.99 |
| 35 |
98502-06008-00 |
SCREW, PAN HEAD Price: $9.49 |
| 36 |
2DF-82532-00-00 |
CAP Price: $21.99 |
| 37 |
2DF-82510-00-00 |
MAIN SWITCH ASSY Price: $319.99 |
| 38 |
2D1-82589-02-00 |
PROTECTER, WIRE HARNESS This part replaces 2D1-82589-00-00. Price: $11.99 |
| 39 |
2DF-23389-00-00 |
GUIDE, CABLE Price: $37.99 |
| 40 |
90109-08196-00 |
BOLT This part replaces 90109-08195-00. Price: $9.49 |
| 41 |
2DF-82530-00-00 |
STOP SWITCH ASSY Price: $47.99 |
| 42 |
90464-06005-00 |
CLAMP Price: $1.55 |
| 43 |
97017-05012-00 |
BOLT, HEXAGON This part replaces 97027-05012-00. Price: $9.49 |
| 44 |
92907-05600-00 |
WASHER, PLATE Price: $1.00 |
| 45 |
95317-05600-00 |
NUT This part replaces 95307-05600-00. Price: $2.50 |
| 46 |
2DF-83371-00-00 |
HORN Price: $39.99 |
| 47 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
