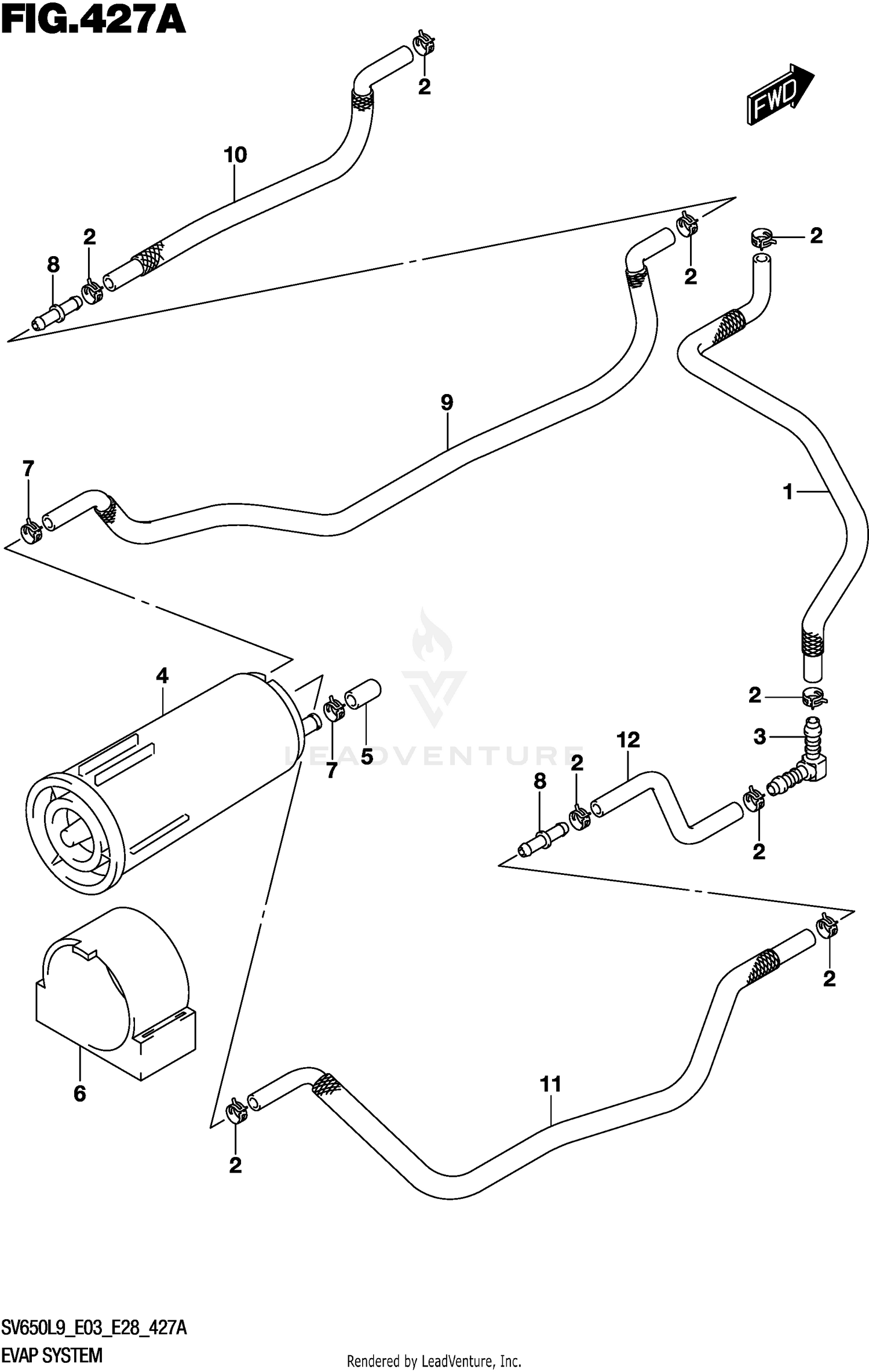

EVAP SYSTEM (SV650L9 E33)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 44434-18K00 | HOSE,TANK & BREATHER VALVE Price: $42.28 |
| 2 | 09401-11413 | CLIP (ID:11,H:8) Price: $2.72 |
| 3 | 09367-06011 | JOINT,HOSE Price: $15.27 |
| 4 | 17210-15H10 | CANISTER Price: $305.51 |
| 5 | 09251-07003 | CAP (OD:11.5) Price: $2.68 |
| 6 | 44883-06G01 | CUSHION,CANISTER This part replaces 44883-06G00. Price: $16.45 |
| 7 | 09401-12404 | CLIP (ID:12) Price: $2.85 |
| 8 | 09367-06009 | JOINT Price: $2.80 |
| 9 | 18563-18K00 | HOSE,PURGE NO.1 Price: $46.00 |
| 10 | 18564-18K00 | HOSE,PURGE NO.2 Price: $34.58 |
| 11 | 18562-18K00 | HOSE,SURGE NO.2 Price: $34.58 |
