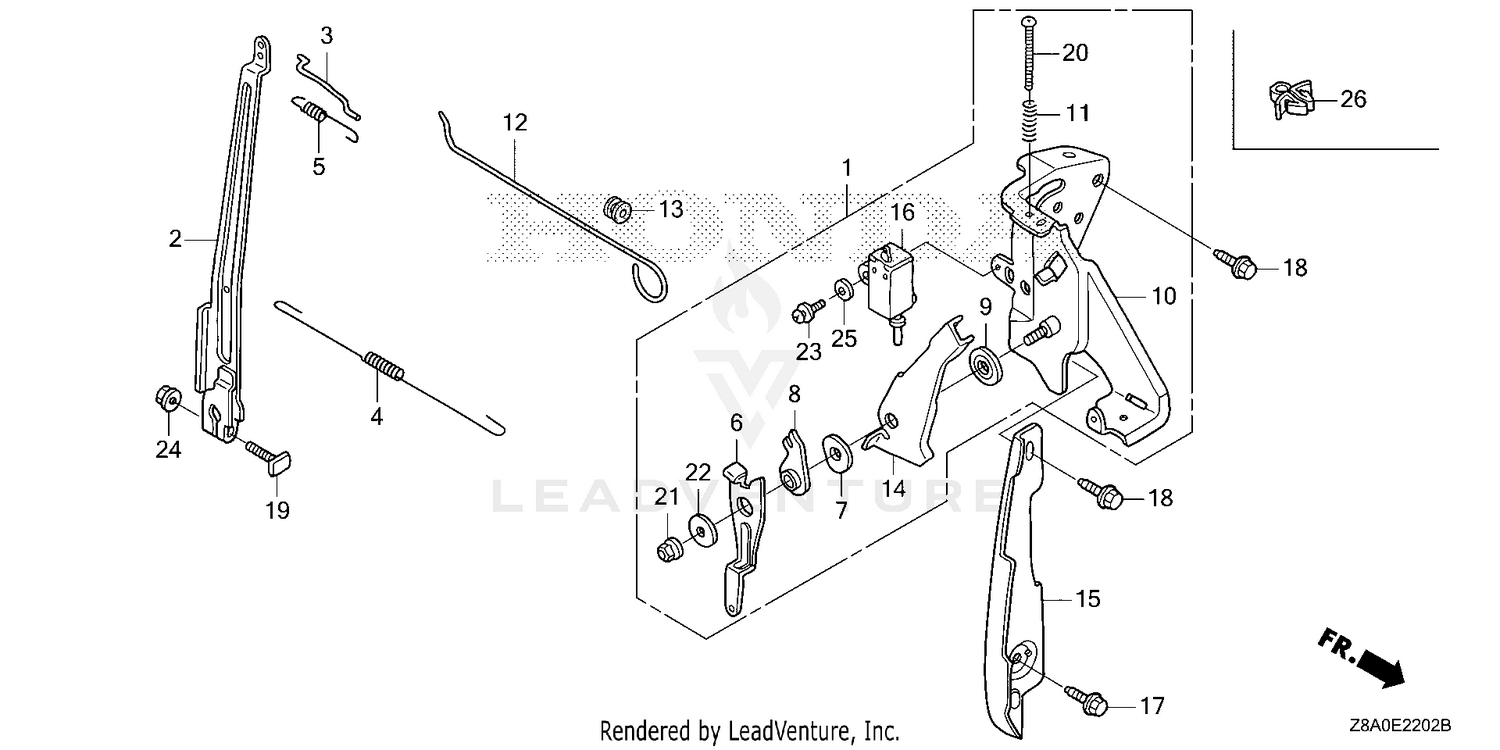

| Ref | Part Number | Description |
|---|
| 1 |
16500-ZL8-850 |
CONTROL ASSY. Price: $53.08 |
| 2 |
16551-ZL8-010 |
SEE PART DETAILS - PRI; ARM, GOVERNOR Price: $3.16 |
| 3 |
16555-ZL8-000 |
ROD, GOVERNOR Price: $2.80 |
| 4 |
16561-ZL8-810 |
SPRING, GOVERNOR Price: $4.48 |
| 5 |
16562-ZL8-800 |
SPRING, THROTTLE RETURN Price: $2.32 |
| 6 |
16571-ZL8-850 |
LEVER, CONTROL Price: $14.88 |
| 7 |
16574-ZE1-000 |
SPRING, LEVER (Honda Code 1427384). Price: $4.12 |
| 8 |
16575-ZL8-000 |
WASHER, CONTROL LEVER Price: $2.38 |
| 9 |
16578-ZE1-000 |
SPACER, CONTROL LEVER (Honda Code 1427400). Price: $5.38 |
| 10 |
16580-ZL8-000 |
BASE, CONTROL Price: $37.26 |
| 11 |
16584-883-300 |
SPRING, CONTROL ADJUSTING Use from Engine SN 2327377. Price: $5.00 |
| 12 |
16611-ZL8-000 |
ROD, CHOKE CONTROL Price: $2.50 |
| 13 |
16613-893-000 |
SEE PART DETAILS - PRI; GROMMET, CHOKE ROD Price: $3.84 |
| 14 |
16631-ZL8-850 |
LEVER, STOP Price: $12.40 |
| 15 |
19612-Z0L-000 |
PLATE, SIDE Price: $15.72 |
| 16 |
35120-ZL8-003 |
SWITCH ASSY., ENGINE STOP (N.O) Price: $14.32 |
| 17 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 18 |
90014-952-000 |
BOLT, FLANGE (6X14) (Honda Code 0803619). Price: $2.94 |
| 19 |
90015-ZE5-010 |
SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671). Price: $3.16 |
| 20 |
90031-ZL8-850 |
SCREW, ADJUST Price: $2.10 |
| 21 |
90114-SA0-000 |
SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182). Price: $4.02 |
| 22 |
90563-355-000 |
SEE PART DETAILS - PRI; WASHER, WHEEL (6MM) (Honda Code 0326306). Price: $4.72 |
| 23 |
93892-04012-00 |
SCREW-WASHER (4X12) (Honda Code 0485946). Price: $0.84 |
| 24 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 25 |
94103-04000 |
WASHER, PLAIN (4MM) (Honda Code 1510361). Price: $0.90 |
