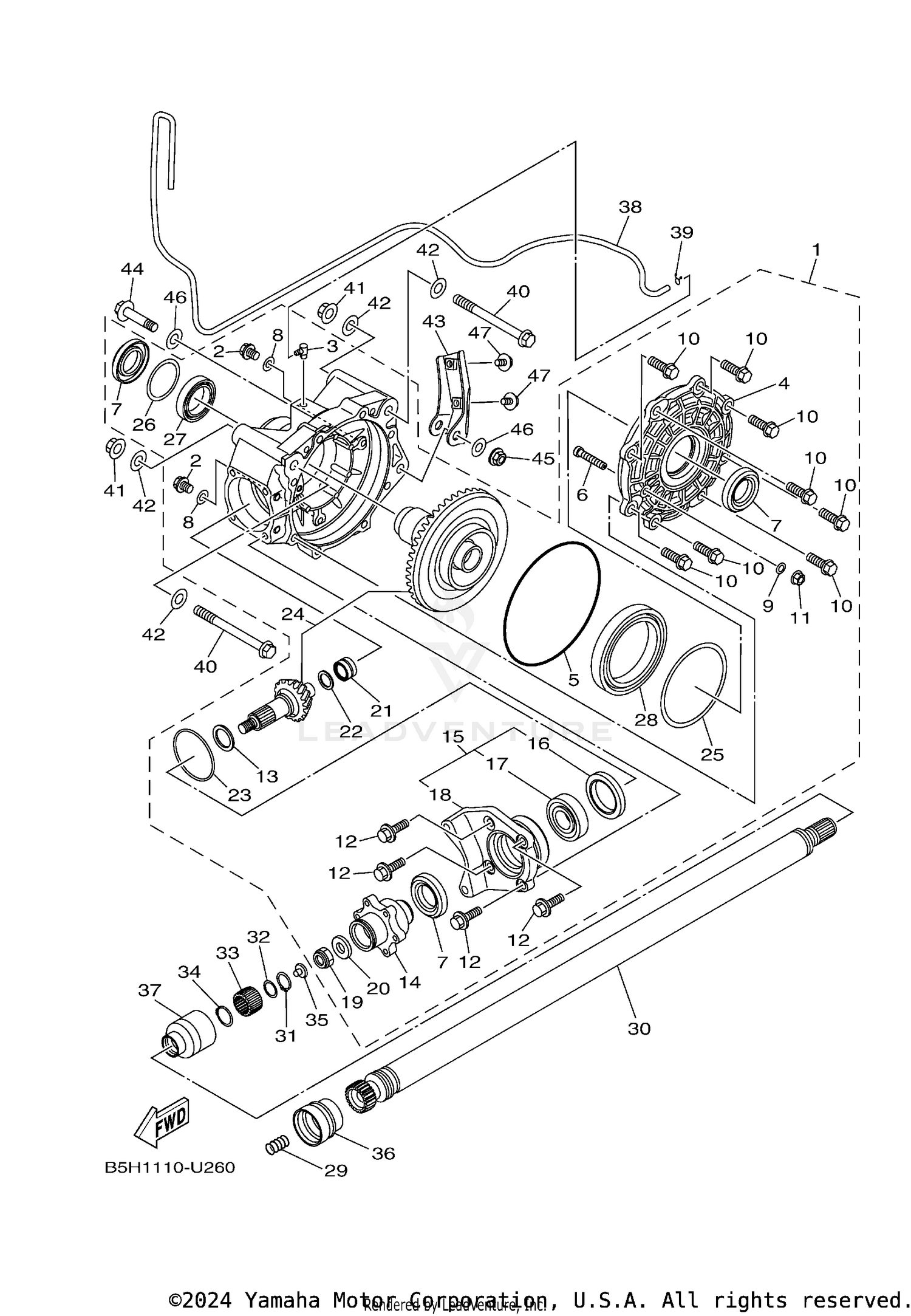

| Ref | Part Number | Description |
|---|
| 1 |
B5H-G6101-00-00 |
REAR AXLE GEAR CAS Price: $1,029.99 |
| 2 |
1XD-E2228-00-00 |
BOLT Price: $5.49 |
| 3 |
1CT-E5371-00-00 |
BREATHER Price: $3.90 |
| 4 |
2HC-G6152-00-00 |
HOUSING, BEARING Price: $76.99 |
| 5 |
2HC-G613A-00-00 |
O-RING Price: $15.49 |
| 6 |
2HC-G6156-00-00 |
STOPPER, RING GEAR Price: $22.99 |
| 7 |
1XD-E511B-00-00 |
OIL SEAL Price: $9.99 |
| 8 |
1CT-E1195-00-00 |
GASKET Price: $6.99 |
| 9 |
1CT-G6819-00-00 |
GASKET Price: $4.95 |
| 10 |
2HC-E2157-00-00 |
BOLT Price: $4.40 |
| 11 |
1CT-E3275-00-00 |
NUT, ADJUSTING Price: $1.40 |
| 12 |
1XD-G2478-00-00 |
BOLT, LOCK PLATE Price: $2.50 |
| 13 |
1XD-G7531-00-00 |
WHEEL, SPROCKET 1 Price: $64.99 |
| 14 |
2HC-G6126-00-00 |
COUPLING Price: $230.99 |
| 15 |
B5H-G6331-00-00 |
GEAR, INPUT 1 Price: $217.99 |
| 16 |
2HC-G4583-00-00 |
NUT Price: $34.99 |
| 17 |
93306-30574-00 |
BEARING Price: $79.99 |
| 18 |
B5H-G2134-00-00 |
COVER Price: $200.99 |
| 19 |
2HC-G7579-00-00 |
NUT Price: $39.99 |
| 20 |
2HC-G5677-00-00 |
WASHER Price: $20.99 |
| 21 |
B5H-E1428-00-00 |
BEARING 1 Price: $69.99 |
| 22 |
B5H-F2149-00-00 |
WASHER Price: $3.00 |
| 23 |
1XD-E1614-00-00 |
OIL RING, PISTON Price: $3.85 |
| 24 |
B5H-G61A0-00-00 |
RING GEAR SET Price: $800.99 |
| 25 |
2HC-G5567-00-00 |
SHIM Price: $24.99 |
| 26 |
1XD-G5577-00-00 |
SHIM Price: $21.99 |
| 27 |
1XD-E7051-00-00 |
BEARING This part replaces 1XD-E142B-00-00. Price: $34.99 |
| 28 |
B5H-E1429-00-00 |
BEARING 2 Price: $300.99 |
| 29 |
90501-20361-00 |
SPRING, COMPRESSION Price: $14.49 |
| 30 |
B5H-46172-10-00 |
SHAFT, DRIVE Price: $281.99 |
| 31 |
99009-22400-00 |
CIRCLIP Price: $9.49 |
| 32 |
90201-23016-00 |
WASHER, PLATE Price: $6.49 |
| 33 |
2HC-46126-00-00 |
COUPLING Price: $44.99 |
| 34 |
93410-26067-00 |
CIRCLIP Price: $9.49 |
| 35 |
5KM-46559-00-00 |
DAMPER Price: $8.49 |
| 36 |
2HC-46137-01-00 |
SEAL 2 Price: $10.99 |
| 37 |
B5H-46136-00-00 |
SEAL 1 Price: $32.99 |
| 38 |
90445-070G6-00 |
HOSE (L1700) This part replaces 90445-074F6-00. Price: $44.99 |
| 39 |
90467-07029-00 |
CLIP Price: $2.60 |
| 40 |
95812-12130-00 |
BOLT, FLANGE Price: $10.49 |
| 41 |
90185-12002-00 |
NUT, SELF-LOCKING Price: $13.49 |
| 42 |
92990-12200-00 |
WASHER, PLAIN This part replaces 92902-12200-00. Price: $9.49 |
| 43 |
2HC-F1981-03-00 |
BRKT., RR. AXLE This part replaces 2HC-F1981-02-00. Price: $10.99 |
| 44 |
90105-12082-00 |
BOLT, FLANGE Price: $11.49 |
| 45 |
90185-12002-00 |
NUT, SELF-LOCKING Price: $13.49 |
| 46 |
92990-12200-00 |
WASHER, PLAIN This part replaces 92902-12200-00. Price: $9.49 |
