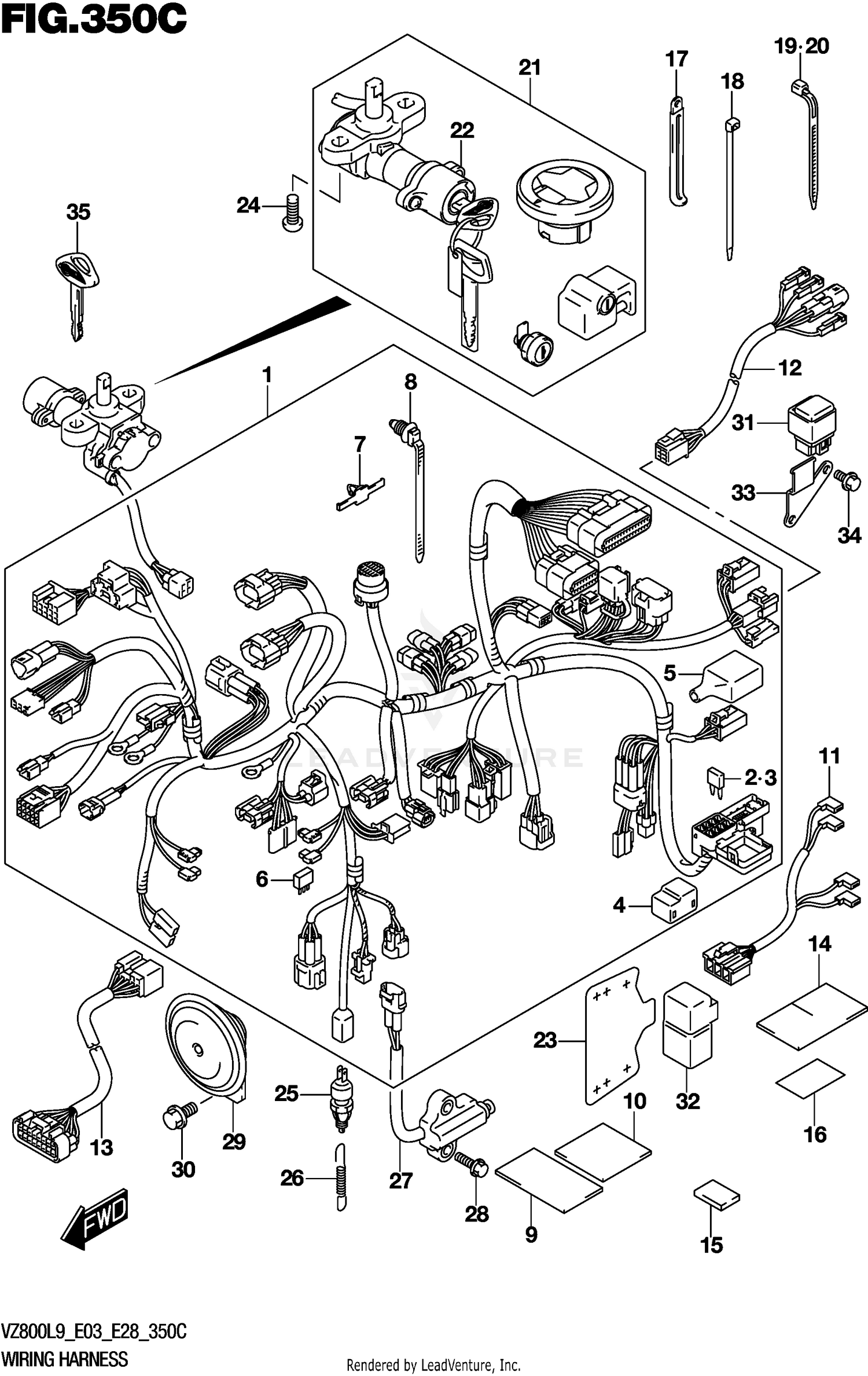

WIRING HARNESS (VZ800L9 E33)
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 36610-39GQ0 | HARNESS Price: $1,045.61 |
| 8 | 09407-17403 | CLAMP (L:170) Price: $6.24 |
| 9 | 36611-16G00 | TAPE,HARNESS (28X50X0.13) Price: $3.28 |
| 10 | 36611-41F00 | PROTECTOR,WIRING HARNESS (30X Price: $5.43 |
| 11 | 36854-39G00 | WIRE Price: $54.85 |
| 12 | 36858-39GD0 | WIRE Price: $85.13 |
| 13 | 36859-39G00 | WIRE Price: $55.89 |
| 14 | 36920-33C00 | PROTECTOR,HARNESS (30X50X3) Price: $1.84 |
| 16 | 94474-17H00 | PROTECTOR,COWL UNDER (30X20X0 Price: $4.96 |
| 17 | 09404-06036 | CLAMP(L:80) This part replaces 09404-06433. Price: $2.12 |
| 18 | 09407-14407 | CLAMP (L:145) Price: $3.70 |
| 19 | 09407-18402 | CLAMP (L:165) Price: $2.68 |
| 20 | 09407-19401 | CLAMP (L:190) Price: $3.22 |
| 21 | 37103-41870 | LOCK SET Price: $498.88 |
| 23 | 37187-41F10 | PROTECTOR,IGNITION SW Price: $13.15 |
| 24 | 09139-08016 | BOLT (8X20) Price: $4.10 |
| 25 | 37740-24A00 | SWITCH ASSY,STOP LAMP Price: $22.49 |
| 26 | 09443-06073 | SPRING Price: $4.22 |
| 27 | 37840-41F02 | SWITCH ASSY,SIDE STAND This part replaces 37840-41F00. Price: $65.20 |
| 28 | 01550-0620B | BOLT Price: $2.87 |
| 29 | 38500-41F40 | HORN ASSY Price: $77.96 |
| 30 | 01550-0816A | BOLT Price: $2.79 |
| 33 | 38741-39G00 | BRACKET Price: $4.19 |
| 34 | 01550-0612A | BOLT Price: $2.37 |
