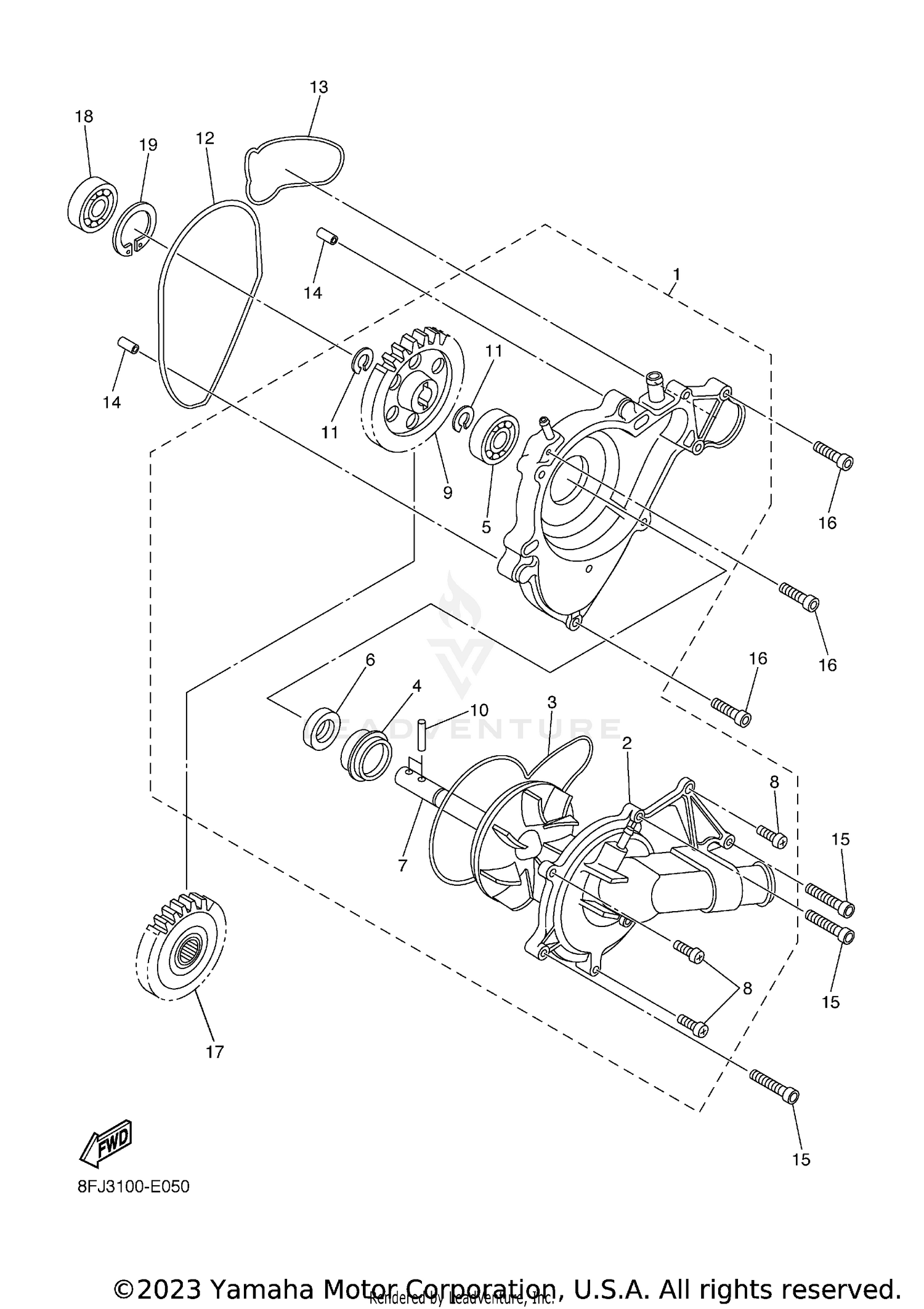

WATER PUMP
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 8ES-12420-02-00 | WATER PUMP ASSY Price: $400.99 |
| 2 | 8ES-12422-00-00 | COVER, HOUSING Price: $41.99 |
| 3 | 8ES-12427-00-00 | GASKET, HOUSING COVER 1 Price: $18.99 |
| 4 | 8ES-12438-00-00 | SEAL, MECHANICAL Price: $49.99 |
| 5 | 93306-00004-00 | BEARING This part replaces 93306-00006-00. Price: $41.99 |
| 6 | 93102-10207-00 | OIL SEAL (SD 10-21-5 HS) Price: $12.49 |
| 7 | 8ES-12450-01-00 | IMPELLER SHAFT ASSY Price: $41.99 |
| 8 | 98580-06016-00 | SCREW, PAN HEAD This part replaces 98502-06016-00. Price: $3.35 |
| 9 | 8ES-12459-01-00 | GEAR, IMPELLER SHAFT Price: $86.99 |
| 10 | 93604-16092-00 | PIN, DOWEL Price: $3.45 |
| 11 | 99001-08600-00 | CIRCLIP This part replaces 99002-08600-00. Price: $9.49 |
| 12 | 8ES-12435-00-00 | GASKET Price: $16.49 |
| 13 | 8ES-12434-00-00 | GASKET Price: $5.49 |
| 14 | 99530-08012-00 | PIN, DOWEL Price: $6.60 |
| 15 | 91312-06040-00 | BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 16 | 91317-06025-00 | BOLT This part replaces 91312-06025-00. Price: $2.65 |
| 17 | 8ES-12436-00-00 | GEAR, DRIVE Price: $62.99 |
| 18 | 93306-00004-00 | BEARING This part replaces 93306-00006-00. Price: $41.99 |
