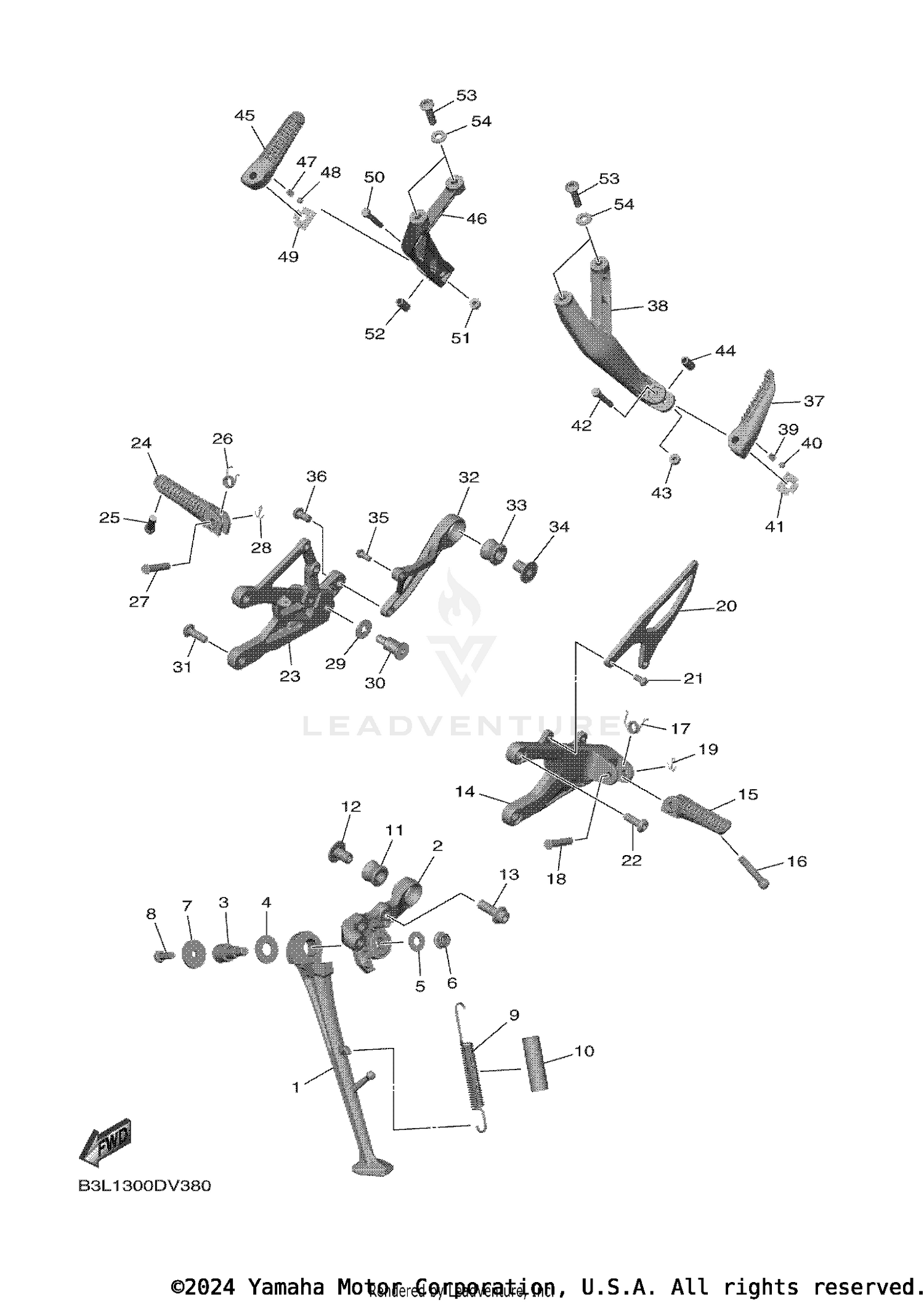

| Ref | Part Number | Description |
|---|
| 1 |
2CR-27311-00-00 |
STAND, SIDE Price: $158.99 |
| 2 |
B3L-27321-00-00 |
BRACKET, SIDE STAND Price: $168.99 |
| 3 |
B3L-27351-00-00 |
GUIDE, SIDE STAND Price: $41.99 |
| 4 |
90201-146F9-00 |
WASHER, PLATE Price: $8.49 |
| 5 |
90201-10035-00 |
WASHER, PLATE Price: $4.50 |
| 6 |
95602-10200-00 |
NUT, S/L FLANGE Price: $2.70 |
| 7 |
90201-08050-00 |
WASHER, PLATE Price: $6.49 |
| 8 |
90101-08065-00 |
BOLT Price: $2.90 |
| 9 |
90506-18008-00 |
SPRING, TENSION Price: $17.49 |
| 10 |
90445-19002-00 |
HOSE (L60) Price: $8.49 |
| 11 |
5VY-14747-00-00 |
DAMPER, MUFFLER Price: $15.49 |
| 12 |
90387-08021-00 |
COLLAR Price: $11.49 |
| 13 |
90110-10026-00 |
BOLT, HEXAGON SOCKET This part replaces 90109-10002-00. Price: $12.49 |
| 14 |
2CR-27442-00-00 |
BRACKET 2 Price: $72.99 |
| 15 |
1KB-27451-00-00 |
FOOTREST Price: $86.99 |
| 16 |
90109-08225-00 |
BOLT This part replaces 90109-086F8-00. Price: $6.49 |
| 17 |
90508-18134-00 |
SPRING, TORSION Price: $9.49 |
| 18 |
91701-08038-00 |
PIN This part replaces 90240-08084-00. Price: $4.45 |
| 19 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 20 |
2CR-27445-00-00 |
PLATE 1 Price: $45.99 |
| 21 |
92017-06012-00 |
BOLT, BUTTON HEAD This part replaces 90149-06233-00. Price: $2.65 |
| 22 |
90109-085G6-00 |
BOLT Price: $3.50 |
| 23 |
2CR-27443-00-00 |
BRACKET 3 Price: $74.99 |
| 24 |
1KB-27461-00-00 |
FOOTREST Price: $86.99 |
| 25 |
90109-08225-00 |
BOLT This part replaces 90109-086F8-00. Price: $6.49 |
| 26 |
90508-18135-00 |
SPRING, TORSION Price: $11.49 |
| 27 |
91701-08038-00 |
PIN This part replaces 90240-08084-00. Price: $4.45 |
| 28 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 29 |
90201-08103-00 |
WASHER, PLATE Price: $9.49 |
| 30 |
4C8-27434-10-00 |
BOLT This part replaces 4C8-27434-00-00. Price: $24.99 |
| 31 |
90109-085G6-00 |
BOLT Price: $3.50 |
| 32 |
2CR-2148W-00-00 |
BRACKET., 3 Price: $66.99 |
| 33 |
5VY-14747-00-00 |
DAMPER, MUFFLER Price: $15.49 |
| 34 |
90387-08021-00 |
COLLAR Price: $11.49 |
| 35 |
92017-06014-00 |
BOLT, BUTTON HEAD Price: $4.60 |
| 36 |
92017-08016-00 |
BOLT, BUTTON HEAD Price: $6.49 |
| 37 |
B3L-27431-00-00 |
FOOTREST, REAR 1 Price: $16.49 |
| 38 |
2CR-2741L-01-00 |
BRACKET 4 Price: $71.99 |
| 39 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 40 |
93501-04011-00 |
BALL Price: $9.49 |
| 41 |
5JJ-27437-01-00 |
WASHER, SPECIAL Price: $7.49 |
| 42 |
91312-06035-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.28 |
| 43 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 44 |
90387-06697-00 |
COLLAR Price: $18.49 |
| 45 |
B3L-27441-00-00 |
FOOTREST, REAR 2 Price: $16.49 |
| 46 |
2CR-2742L-01-00 |
BRACKET 5 Price: $65.99 |
| 47 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 48 |
93501-04011-00 |
BALL Price: $9.49 |
| 49 |
5JJ-27437-01-00 |
WASHER, SPECIAL Price: $7.49 |
| 50 |
91312-06035-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.28 |
| 51 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 52 |
90387-06697-00 |
COLLAR Price: $18.49 |
| 53 |
90110-08220-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90111-08066-00. Price: $8.49 |
