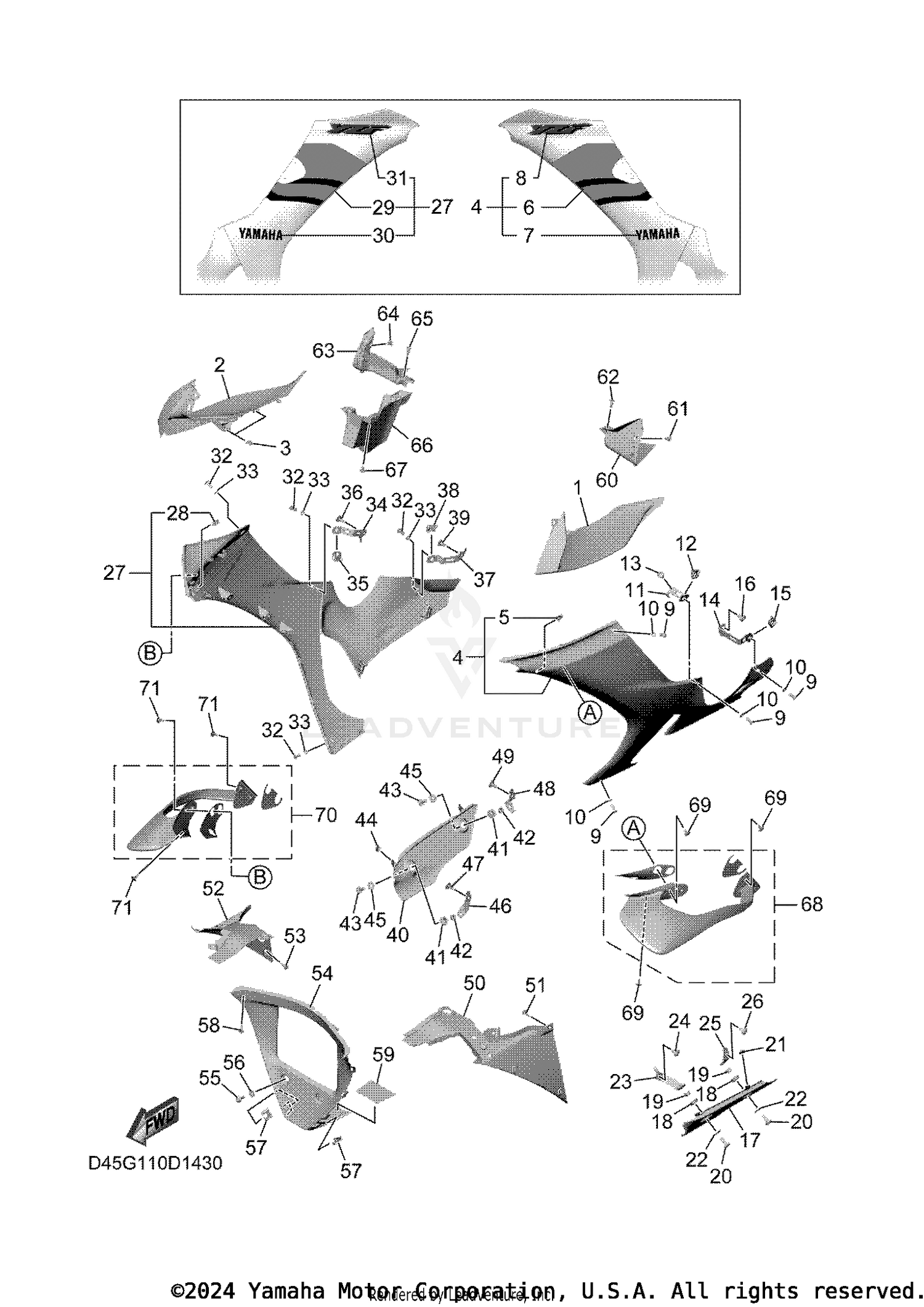

| Ref | Part Number | Description |
|---|
| 3 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 5 |
90464-07018-00 |
CLAMP Price: $0.70 |
| 6 |
D45-28391-20-00 |
GRAPHIC 1 Price: $60.99 |
| 7 |
D45-2153E-00-00 |
EMBLEM, YAMAHA Price: $8.49 |
| 8 |
D45-2834C-00-00 |
EMBLEM, 1 Price: $40.99 |
| 9 |
2CR-28386-00-00 |
HEAD Price: $15.49 |
| 10 |
8HG-21757-00-00 |
WASHER, SPECIAL 1 Price: $1.15 |
| 11 |
B3L-2833K-00-00 |
BRACKET 13 Price: $6.49 |
| 12 |
2CR-2177L-00-00 |
PLATE, SPRING Price: $7.49 |
| 13 |
90111-06127-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 14 |
B3L-2833L-00-00 |
BRACKET 14 Price: $13.49 |
| 15 |
2CR-2177L-00-00 |
PLATE, SPRING Price: $7.49 |
| 16 |
90111-06127-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 17 |
B3L-2834V-00-00 |
PROTECTOR 1 Price: $195.99 |
| 18 |
90480-14477-00 |
GROMMET Price: $4.05 |
| 19 |
90387-06307-00 |
COLLAR Price: $6.49 |
| 20 |
90149-06302-00 |
SCREW Price: $6.49 |
| 21 |
5PW-2411J-01-00 |
DAMPER, SIDE COVER Price: $8.49 |
| 22 |
90201-06095-00 |
WASHER, PLATE This part replaces 90201-06063-00. Price: $9.49 |
| 23 |
B3L-2833R-00-00 |
BRKT., 17 Price: $16.49 |
| 24 |
90111-06127-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06182-00. Price: $9.49 |
| 25 |
B3L-2833T-00-00 |
BRKT.,18 Price: $14.49 |
| 26 |
90111-06127-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06182-00. Price: $9.49 |
| 28 |
90464-07018-00 |
CLAMP Price: $0.70 |
| 29 |
D45-28392-20-00 |
GRAPHIC 2 Price: $60.99 |
| 30 |
D45-2153E-00-00 |
EMBLEM, YAMAHA Price: $8.49 |
| 31 |
D45-2834C-00-00 |
EMBLEM, 1 Price: $40.99 |
| 32 |
2CR-28386-00-00 |
HEAD Price: $15.49 |
| 33 |
8HG-21757-00-00 |
WASHER, SPECIAL 1 Price: $1.15 |
| 34 |
B3L-2833M-00-00 |
BRACKET 15 Price: $8.49 |
| 35 |
2CR-2177L-00-00 |
PLATE, SPRING Price: $7.49 |
| 36 |
90111-06127-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 37 |
B3L-2833N-00-00 |
BRACKET 16 Price: $10.49 |
| 38 |
2CR-2177L-00-00 |
PLATE, SPRING Price: $7.49 |
| 39 |
90111-06127-00 |
BOLT, HEX. SOCKET BUTTON Price: $9.49 |
| 40 |
B3L-2834W-00-00 |
PROTECTOR 2 Price: $190.99 |
| 41 |
90480-14477-00 |
GROMMET Price: $4.05 |
| 42 |
90387-06307-00 |
COLLAR Price: $6.49 |
| 43 |
90149-06302-00 |
SCREW Price: $6.49 |
| 44 |
5PW-2411J-01-00 |
DAMPER, SIDE COVER Price: $8.49 |
| 45 |
90201-06095-00 |
WASHER, PLATE This part replaces 90201-06063-00. Price: $9.49 |
| 46 |
B3L-2833U-00-00 |
BRKT.,19 Price: $10.49 |
| 47 |
90111-06127-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06182-00. Price: $9.49 |
| 48 |
B3L-2833V-00-00 |
BRKT.,20 Price: $9.49 |
| 49 |
90111-06127-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06182-00. Price: $9.49 |
| 50 |
B3L-2836K-00-00 |
PANEL, INNER 1 Price: $32.99 |
| 51 |
90269-06008-00 |
RIVET Price: $9.49 |
| 52 |
B3L-2836L-00-00 |
PANEL, INNER 2 Price: $29.99 |
| 53 |
90269-06008-00 |
RIVET Price: $9.49 |
| 54 |
B3L-2836M-00-00 |
PANEL, INNER 3 Price: $41.99 |
| 55 |
90149-06302-00 |
SCREW Price: $6.49 |
| 56 |
90387-06309-00 |
COLLAR Price: $8.49 |
| 57 |
2CR-2177L-00-00 |
PLATE, SPRING Price: $7.49 |
| 58 |
90269-06008-00 |
RIVET Price: $9.49 |
| 59 |
B3L-23472-00-00 |
PROTECTOR Price: $6.49 |
| 60 |
B3L-2837L-00-00 |
PANEL, CONSOLE 1 Price: $20.99 |
| 61 |
90109-05018-00 |
BOLT Price: $2.60 |
| 62 |
90269-06008-00 |
RIVET Price: $9.49 |
| 63 |
B3L-2837M-00-00 |
PANEL, CONSOLE 2 Price: $24.99 |
| 64 |
90109-05018-00 |
BOLT Price: $2.60 |
| 65 |
90269-06008-00 |
RIVET Price: $9.49 |
| 66 |
B3L-2838K-01-00 |
BOX 1 Price: $13.99 |
| 67 |
90111-05011-00 |
BOLT, HEX. SOCKET BUTTON Price: $6.49 |
| 68 |
D45-283A8-00-00 |
SPOILER,SIDE ASSEMBLY 1 Price: $2,195.99 |
| 69 |
90269-05012-00 |
RIVET Price: $1.60 |
| 70 |
D45-283A9-00-00 |
SPOILER,SIDE ASSEMBLY 2 Price: $2,195.99 |
