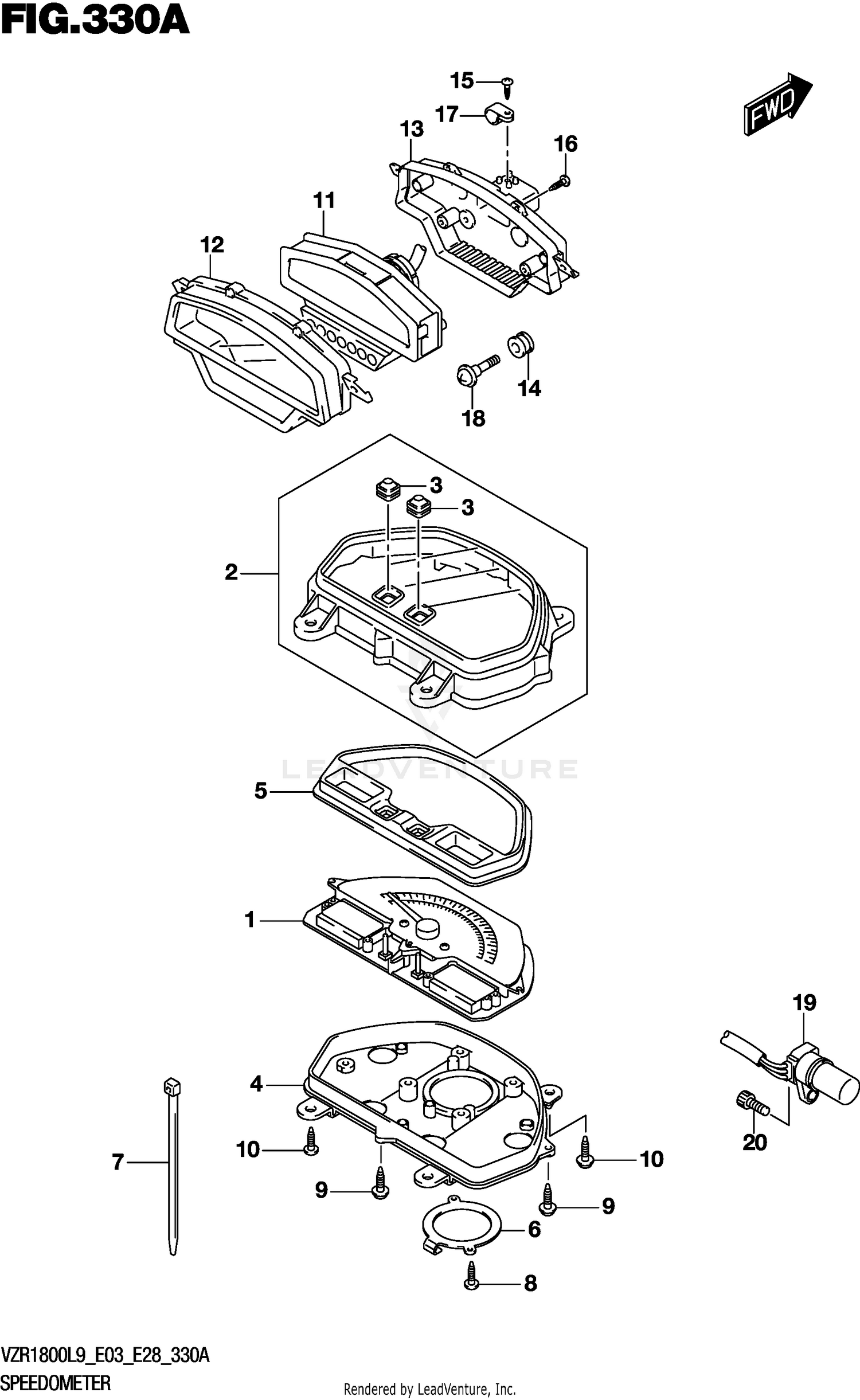

SPEEDOMETER (VZR1800L9 E28)
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 34120-48GF0 | SPEEDOMETER Price: Call Us |
| 2 | 34150-48G00 | UPPER CASE ASSY Price: $133.64 |
| 4 | 34111-48G40 | LOWER CASE Price: $91.51 |
| 5 | 34125-48G00 | REFLECTOR ASSY Price: $77.24 |
| 6 | 34950-48G00 | BRACKET Price: $23.13 |
| 7 | 34192-48G00 | CLAMP (L:100) Price: $15.15 |
| 8 | 34183-09F00 | SCREW (3X12) Price: $3.11 |
| 9 | 34149-03G00 | SCREW (3X14) Price: $4.72 |
| 10 | 03541-0516A | SCREW Price: $1.65 |
| 11 | 34220-48G40 | TACHOMETER ASSY Price: $736.99 |
| 12 | 34250-48G30 | CASE ASSY,UPPER Price: $130.57 |
| 13 | 34211-48G30 | CASE ASSY,LOWER Price: $92.92 |
| 14 | 34955-13E01 | CUSHION,SPEEDOMETER This part replaces 34955-13E00. Price: $3.51 |
| 15 | 34149-17E10 | SCREW (4X14) Price: $6.74 |
| 16 | 09132-03008 | SCREW (3X16) Price: $1.81 |
| 17 | 36385-24A30 | CLAMP Price: $9.49 |
| 18 | 03541-0516A | SCREW Price: $1.65 |
| 19 | 34990-48G01 | SENSOR,SPEED This part replaces 34990-48G00. Price: $171.78 |
