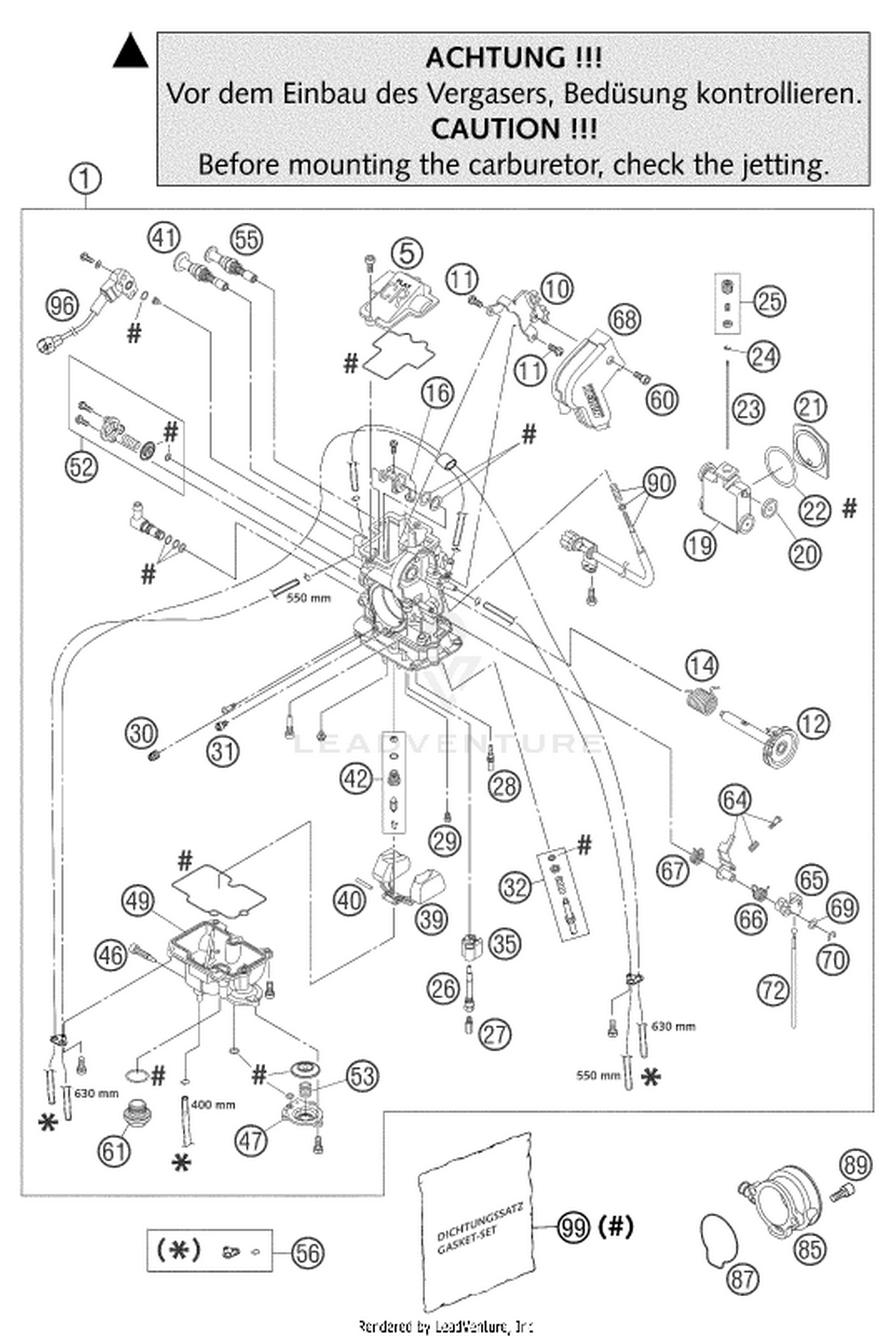

31 CARBURETOR
Parts (62)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 57331001000 | CARBURETOR KEIHIN FCR-41 MX 02 Price: Call Us |
| 5 | 57331027044 | CARBURETOR COVER WITH GASKET This part replaces 57331027000. Price: Call Us |
| 10 | 57331080000 | BRACKET PLATE FOR THR. CABLE Price: Call Us |
| 11 | 57331055000 | SCREW M 5 X 8 Price: Call Us |
| 12 | 57331046000 | THROTTLE SHAFT CPL. Price: Call Us |
| 14 | 57331046050 | COIL SPRING THROTTLE SHAFT Price: Call Us |
| 16 | 57331035051 | LINK ARM THROTTLE VALVE CPL. Price: Call Us |
| 19 | 57331035000 | THROTTLE VALVE CPL. Price: Call Us |
| 20 | 59031035050 | BUSHING THROTTLE VALVE Price: Call Us |
| 21 | 57331035153 | GASKET PLATE THROTTLE VALVE 04 Price: Call Us |
| 22 | 59031035052 | GASKET WASHER THROTTLE VALVE Price: Call Us |
| 23 | 57331034100 | JET NEEDLE KEIHIN OBEKP Price: Call Us |
| 23 | 57331034200 | JET NEEDLE KEIHIN OBEKQ Price: Call Us |
| 23 | 57331034300 | JET NEEDLE KEIHIN OBEKR Price: Call Us |
| 23 | 57331034400 | JET NEEDLE KEIHIN OBEKS Price: Call Us |
| 23 | 57331034500 | JET NEEDLE KEIHIN OBEKT Not Available Price: |
| 24 | 59031029000 | BAR CLIP Price: Call Us |
| 25 | 57331032000 | NEEDLE SET SCREW CPL. Price: Call Us |
| 26 | 59031121000 | NEEDLE JET FCR-MX Price: Call Us |
| 27 | 54531623175 | MAIN JET 175 KEIHIN Price: Call Us |
| 27 | 54531623178 | MAIN JET 178 KEIHIN Price: Call Us |
| 27 | 54531623180 | MAIN JET 180 KEIHIN Price: Call Us |
| 27 | 54531623182 | MAIN JET 182 KEIHIN Price: Call Us |
| 27 | 54531623185 | MAIN JET 185 KEIHIN Price: Call Us |
| 27 | 54531623188 | MAIN JET 188 KEIHIN Price: Call Us |
| 27 | 54531623190 | MAIN JET 190 KEIHIN Price: Call Us |
| 27 | 54531623192 | MAIN JET 192 KEIHIN Price: Call Us |
| 27 | 54531623195 | MAIN JET 195 KEIHIN Price: Call Us |
| 28 | 54531607042 | IDLE JET 42 KEIHIN Price: Call Us |
| 28 | 54531607045 | IDLE JET 45 KEIHIN Price: Call Us |
| 28 | 54531607048 | IDLE JET 48 KEIHIN Price: Call Us |
| 28 | 54531607050 | IDLE JET 50 KEIHIN Price: Call Us |
| 29 | 59031051085 | STARTER JET 85 Price: Call Us |
| 30 | 57331007100 | IDLE AIR JET 100 KEIHIN Price: Call Us |
| 31 | 57331037200 | MAIN AIR JET 200 KEIHIN Not Available Price: |
| 32 | 59031017100 | ADJUST SCREW CPL. FCR-MX Price: Call Us |
| 35 | 57331085000 | BUFFER PLATE Price: Call Us |
| 39 | 57331009000 | FLOAT CPL. Price: Call Us |
| 40 | 57331008000 | ARM PIN FLOAT Price: Call Us |
| 41 | 57331075100 | HOT-STARTER VALVE CPL. 06 This part replaces 57331075000. Price: Call Us |
| 42 | 57331020000 | NEEDLE VALVE CPL. Price: Call Us |
| 46 | 57331155000 | DRAIN SCREW FLOAT CHAMBER Price: Call Us |
| 47 | 57331060000 | COVER ACCELERATOR PUMP Price: Call Us |
| 49 | 78031011000 | FLOAT CHAMBER CPL. 08 This part replaces 57331011000. Price: Call Us |
| 52 | 57331090000 | AIR CUT VALVE 2002 Price: Call Us |
| 53 | 59031059000 | COIL SPRING Price: Call Us |
| 55 | 57331048000 | STARTER VALVE CPL. Price: Call Us |
| 56 | 57331098000 | BREATH.HOSE FCR-MX KEIHIN CPL. Price: Call Us |
| 60 | 57331038100 | SCREW F. COVER KEIHIN Price: Call Us |
| 61 | 57331014000 | HOLDING BOLT Price: Call Us |
| 64 | 57331062000 | INTERMEDIATE LEVER CPL. Price: Call Us |
| 65 | 57331056000 | LINK LEVER Price: Call Us |
| 66 | 57331059000 | SPRING LINK LEVER Price: Call Us |
| 67 | 57331159000 | SPRING INTERMEDIATE LEVER Price: Call Us |
| 68 | 57331038000 | CARBURETOR COVER Price: Call Us |
| 69 | 57331087000 | WASHER LINK LEVER Price: Call Us |
| 70 | 57331084000 | E-CLIP Price: Call Us |
| 72 | 57331061000 | ROD ACCELERATOR PUMP Price: Call Us |
| 87 | 59031040010 | O-RING FOR INTAKE FUNNEL Price: Call Us |
| 89 | 0912050123 | AH SCREW DIN0912-M 5X12 Price: Call Us |
| 90 | 57331025000 | STOP SCREW CPL. FCR-MX Price: Call Us |
| 96 | 57331077100 | TPS-SENSOR FCRMX 320MM 03-04 Price: Call Us |
