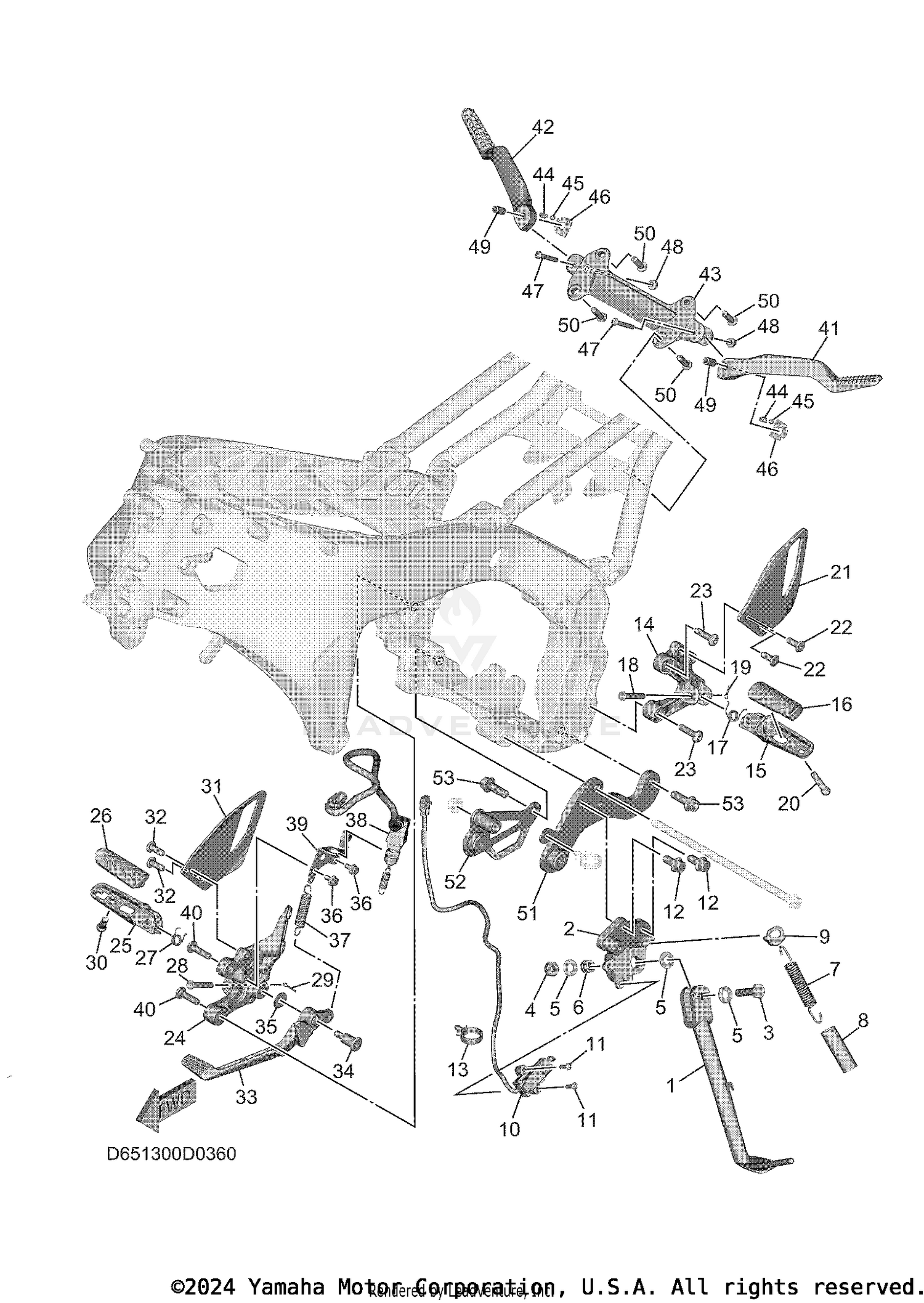

| Ref | Part Number | Description |
|---|
| 1 |
B7N-27311-00-00 |
STAND, SIDE Price: $60.99 |
| 2 |
B7N-27321-00-00 |
BRACKET, SIDE STAN Price: $120.99 |
| 3 |
90101-10034-00 |
BOLT Price: $9.49 |
| 4 |
90185-10012-00 |
NUT, SELF-LOCKING Price: $3.60 |
| 5 |
90201-10075-00 |
WASHER, PLATE Price: $3.55 |
| 6 |
90387-10020-00 |
COLLAR Price: $19.49 |
| 7 |
90506-26014-00 |
SPRING TENSION Price: $9.49 |
| 8 |
90445-197J2-00 |
HOSE (L60) Price: $4.95 |
| 9 |
B7N-27315-00-00 |
LINK, SIDE STAND Price: $2.75 |
| 10 |
B7N-82566-01-00 |
SWITCH, SIDE STAND Price: $46.99 |
| 11 |
90149-05038-00 |
SCREW This part replaces 90149-05037-00. Price: $2.65 |
| 12 |
95817-10020-00 |
BOLT, FLANGE This part replaces 90105-10195-00. Price: $9.49 |
| 13 |
90464-24230-00 |
CLAMP Price: $8.49 |
| 14 |
BEA-27442-00-00 |
BRACKET 2 Price: $103.99 |
| 15 |
BMG-27451-00-00 |
FOOTREST 3 Price: $18.49 |
| 16 |
BLW-27413-00-00 |
COVER, FOOTREST Price: $15.49 |
| 17 |
90508-18134-00 |
SPRING, TORSION Price: $9.49 |
| 18 |
91702-08040-00 |
PIN, CLEVIS This part replaces 91701-08040-00. Price: $4.85 |
| 19 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 20 |
90109-08204-00 |
BOLT This part replaces 90109-08203-00. Price: $8.49 |
| 22 |
90111-08093-00 |
BOLT,HEX. SOCKET BUTTON Price: $3.50 |
| 23 |
90110-08220-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 24 |
BEA-27443-00-00 |
BRACKET 3 Price: $135.99 |
| 25 |
BMG-27461-00-00 |
FOOTREST 4 Price: $18.49 |
| 26 |
BLW-27413-00-00 |
COVER, FOOTREST Price: $15.49 |
| 27 |
90508-18135-00 |
SPRING, TORSION Price: $11.49 |
| 28 |
91702-08040-00 |
PIN, CLEVIS This part replaces 91701-08040-00. Price: $4.85 |
| 29 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 30 |
90109-08204-00 |
BOLT This part replaces 90109-08203-00. Price: $8.49 |
| 32 |
90111-08093-00 |
BOLT,HEX. SOCKET BUTTON Price: $3.50 |
| 34 |
4C8-27434-10-00 |
BOLT This part replaces 4C8-27434-01-00. Price: $24.99 |
| 35 |
90201-08103-00 |
WASHER, PLATE Price: $9.49 |
| 36 |
95D02-06012-00 |
BOLT, FLANGE DEEP Price: $0.50 |
| 37 |
90506-18022-00 |
SPRING, TENSION Price: $8.49 |
| 38 |
BME-82530-00-00 |
STOP SWITCH ASSY Price: $71.99 |
| 39 |
BRN-2144G-00-00 |
STAY, STOP SWITCH Price: $14.49 |
| 40 |
90110-08220-00 |
BOLT, HEXAGON SOCKET HEAD Price: $8.49 |
| 41 |
BEA-27431-00-00 |
FOOTREST, REAR 1 Price: $171.99 |
| 42 |
BEA-27441-00-00 |
FOOTREST, REAR 2 Price: $171.99 |
| 43 |
BEA-2741L-00-00 |
BRACKET 4 Price: $244.99 |
| 44 |
90501-15001-00 |
SPRING, COMPRESSION Price: $2.35 |
| 45 |
93501-04011-00 |
BALL Price: $9.49 |
| 46 |
5JJ-27437-01-00 |
WASHER, SPECIAL Price: $7.49 |
| 47 |
92017-06040-00 |
BOLT, BUTTON HEAD Price: $4.50 |
| 48 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95607-06200-00. Price: $2.95 |
| 49 |
90387-06697-00 |
COLLAR Price: $18.49 |
| 50 |
90149-08058-00 |
SCREW Price: $4.80 |
| 51 |
BME-21445-00-00 |
STAY, MUFFLER 1 Price: $104.99 |
| 52 |
B7N-21446-10-00 |
STAY, MUFFLER 2 Price: $63.99 |
