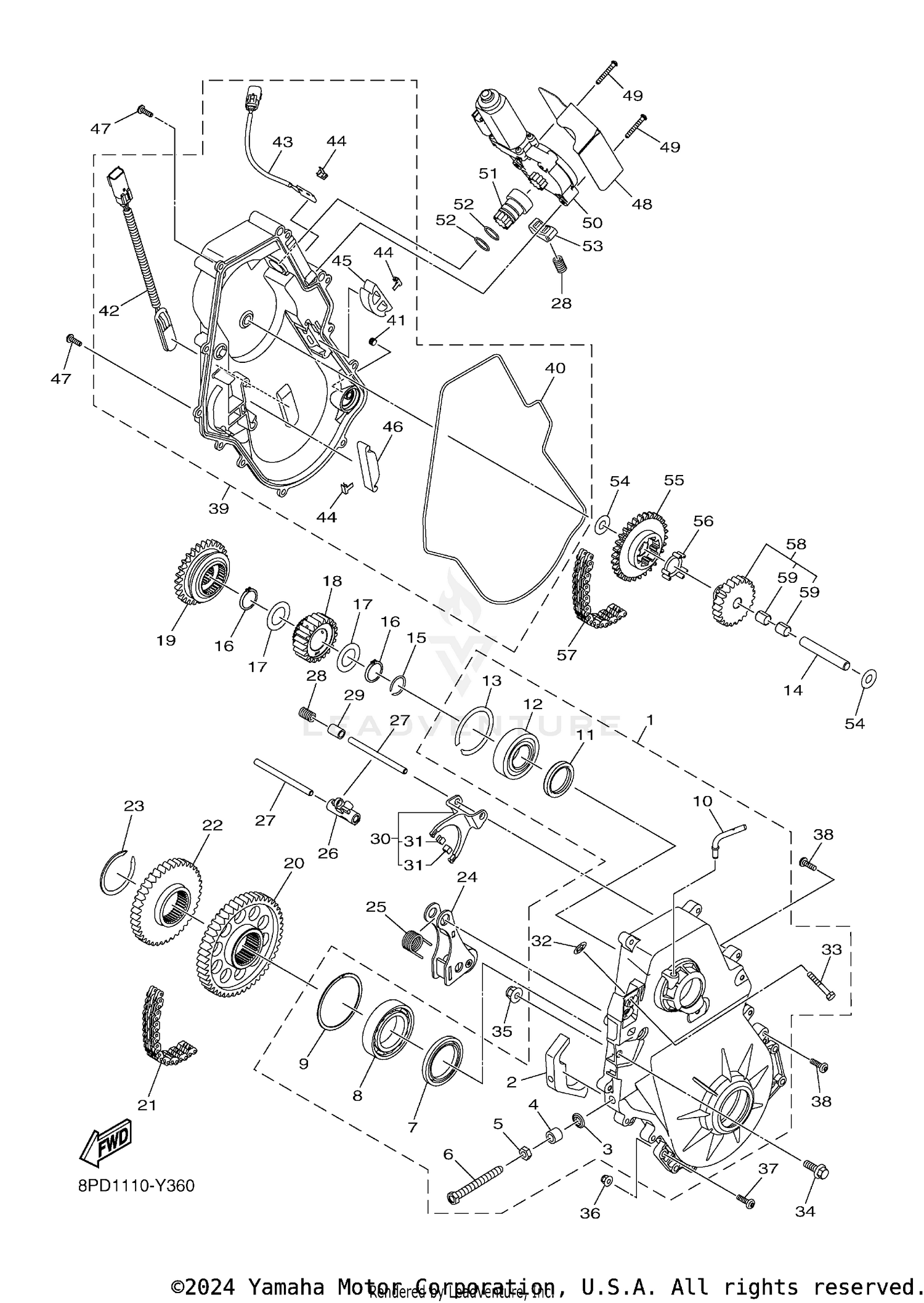

| Ref | Part Number | Description |
|---|
| 1 |
8JP-G754A-20-00 |
CHAIN CASE ASSY. Price: $394.99 |
| 2 |
8JP-G7516-00-00 |
PLATE, RATCHET Price: $102.99 |
| 3 |
90210-10004-00 |
WASHER, SEAL Price: $5.49 |
| 4 |
8JP-RA716-00-00 |
COLLAR, 4 Price: $14.99 |
| 5 |
8JP-RA366-00-00 |
NUT, HEX. 3/8-16 Price: $0.65 |
| 6 |
8JP-RA1A8-00-00 |
BOLT, HEX. 3/8-16X3.25 Price: $39.99 |
| 7 |
8JP-RAE03-00-00 |
SEAL, OIL 50X65X8 Price: $39.99 |
| 8 |
8JP-RAG05-00-00 |
BEARING, 6009 Price: $19.49 |
| 9 |
8JP-RAH05-00-00 |
CIRCLIP, EH-75 Price: $4.90 |
| 10 |
8JP-G7586-00-00 |
BREATHER Price: $8.99 |
| 11 |
8JP-RAE01-00-00 |
SEAL, OIL 35X47X7 Price: $23.99 |
| 12 |
8JP-RAG07-10-00 |
BEARING, 6206 Price: $20.99 |
| 13 |
8JP-RAH06-00-00 |
CIRCLIP, FH-062 Price: $5.49 |
| 14 |
8JP-E761A-00-00 |
SHAFT 1 Price: $23.99 |
| 15 |
8JP-RAC04-00-00 |
CIRCLIP, 5 Price: $3.00 |
| 16 |
8JP-RAH11-00-00 |
CIRCLIP, 5 Price: $1.75 |
| 17 |
8JP-RA440-00-00 |
WASHER, 1.00X1.562X0.062 Price: $14.49 |
| 18 |
8PC-E769A-11-00 |
DRIVE SPROCKET ASSY. This part replaces 8KC-E769A-11-00. Price: $29.99 |
| 19 |
8JP-E7143-00-00 |
GEAR, REVERSE PINION 1 Price: $118.99 |
| 20 |
8JP-G7587-10-00 |
SPROCKET, CHAIN DRIVEN (41T) Price: $157.99 |
| 21 |
8KC-RAM01-20-00 |
CHAIN, BWA (86L) Price: $223.99 |
| 22 |
8JP-G7548-00-00 |
SPROCKET, CHAIN DRIVEN (40T) Price: $54.99 |
| 23 |
8JP-RAC03-00-00 |
CIRCLIP, 4 Price: $3.95 |
| 24 |
8JP-G7613-02-00 |
HOLDER Price: $123.99 |
| 25 |
8JP-RAD12-00-00 |
SPRING, 1 Price: $1.90 |
| 26 |
8JP-E8112-00-00 |
ARM, SHIFT Price: $46.99 |
| 27 |
8JP-E8125-00-00 |
SHAFT, SHIFT Price: $25.99 |
| 28 |
8JP-RAD13-00-00 |
SPRING, 2 Price: $4.80 |
| 29 |
8JP-RA803-00-00 |
BUSH, 2 Price: $4.90 |
| 30 |
8JP-E8501-00-00 |
FORK, SHIFT 1 Price: $143.99 |
| 31 |
8JP-G7614-00-00 |
SHOE Price: $29.99 |
| 34 |
8JP-RA185-00-00 |
BOLT, FLANGE M8X1.25X20 Price: $0.90 |
| 35 |
8JM-RA301-00-00 |
NUT, SELF-LOCKING M8-1.25 Price: $1.15 |
| 36 |
8JM-RA322-00-00 |
NUT, FLANGE M6-1.0 Price: $1.15 |
| 37 |
8JP-RA266-00-00 |
SCREW, M6X1.0X30 Price: $1.70 |
| 38 |
8JP-RA283-00-00 |
SCREW, TAPPING M6X2.0X24 Price: $1.75 |
| 39 |
8JP-G754B-10-00 |
HOUSING CAP ASSY Price: $347.99 |
| 40 |
8JP-G7558-02-00 |
RING, HOUSING Price: $23.99 |
| 41 |
8NV-G7339-00-00 |
PLUG Price: $8.49 |
| 42 |
8JP-H5985-00-00 |
SENSOR, SPEED Price: $106.99 |
| 43 |
8JP-H5899-00-00 |
SENSOR, GEAR POSITION Price: $114.99 |
| 44 |
8JP-RAC12-00-00 |
CLIP, 3 Price: $3.55 |
| 45 |
8JP-E7468-00-00 |
GUIDE, CHAIN 2 Price: $49.99 |
| 46 |
8JP-E7467-00-00 |
GUIDE, CHAIN 1 Price: $4.20 |
| 47 |
8KG-RA229-00-00 |
SCREW Price: $1.05 |
| 48 |
8KC-G613F-00-00 |
COVER 1 Price: $27.99 |
| 49 |
8JP-RA247-00-00 |
SCREW, M5X0.8X35 Price: $1.35 |
| 50 |
8JP-G616A-20-00 |
SERVO MOTOR COMP Price: $228.99 |
| 51 |
8JP-E7848-10-00 |
ADAPTER Price: $84.99 |
| 52 |
8JP-RAF04-00-00 |
O-RING, 2 Price: $1.05 |
| 53 |
8JP-E8128-00-00 |
BRACKET Price: $6.49 |
| 54 |
8JP-RA444-00-00 |
WASHER, 12X26X1 Price: $4.05 |
| 55 |
8JP-E7692-00-00 |
SPROCKET, DRIVE (30T) Price: $131.99 |
| 56 |
8JP-E8615-00-00 |
DAMPER, RUBBER Price: $2.65 |
| 57 |
8JP-RAM02-00-00 |
CHAIN, REX 11 Price: $155.99 |
| 58 |
8JP-E724A-00-00 |
REVERSE WHEEL ASSY. Price: $76.99 |
