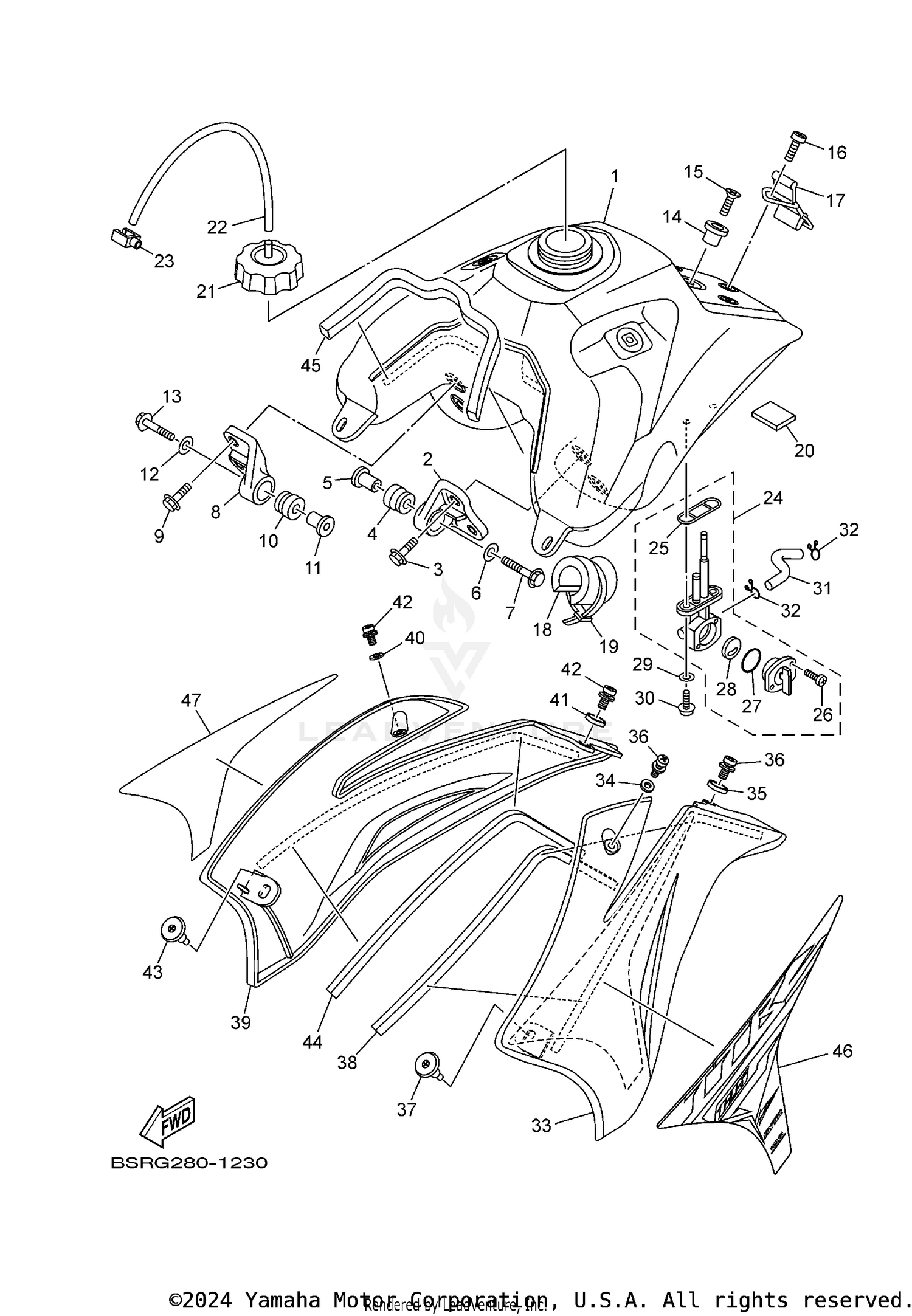

| Ref | Part Number | Description |
|---|
| 1 |
1B2-24110-11-00 |
FUEL TANK COMP. Price: $386.99 |
| 2 |
1B2-F4104-00-00 |
TANK BRACKET ASSY Price: $13.49 |
| 3 |
95817-06012-00 |
BOLT, FLANGE This part replaces 9582M-06012-00. Price: $1.95 |
| 4 |
90480-18549-00 |
GROMMET Price: $11.49 |
| 5 |
3JD-24186-00-00 |
WASHER, SPECIAL This part replaces 1B2-F4186-00-00. Price: $14.49 |
| 6 |
90201-063J2-00 |
WASHER, PLATE This part replaces 90201-06071-00. Price: $6.49 |
| 7 |
95817-06030-00 |
BOLT,FLANGE This part replaces 9582M-06030-00. Price: $4.65 |
| 8 |
1B2-F4105-00-00 |
TANK BRACKET ASSY 2 Price: $13.49 |
| 9 |
95817-06012-00 |
BOLT, FLANGE This part replaces 9582M-06012-00. Price: $1.95 |
| 10 |
90480-18549-00 |
GROMMET Price: $11.49 |
| 11 |
3JD-24186-00-00 |
WASHER, SPECIAL This part replaces 1B2-F4186-00-00. Price: $14.49 |
| 12 |
90201-063J2-00 |
WASHER, PLATE This part replaces 90201-06071-00. Price: $6.49 |
| 13 |
95817-06030-00 |
BOLT,FLANGE This part replaces 9582M-06030-00. Price: $4.65 |
| 14 |
4EW-2412F-00-00 |
BRACKET, SEAT This part replaces 1B2-F412F-00-00. Price: $15.49 |
| 15 |
98707-06020-00 |
SCREW, FLAT HEAD This part replaces 9870M-06020-00. Price: $9.49 |
| 16 |
98907-06016-00 |
SCREW, BIND This part replaces 9890M-06016-00. Price: $10.49 |
| 17 |
3SP-24173-00-00 |
BAND, TANK FITTING 1 This part replaces 1B2-F4173-00-00. Price: $24.99 |
| 18 |
1B2-F4145-01-00 |
DAMPER, SIDE COVER Price: $1.40 |
| 19 |
90464-70800-00 |
CLAMP Price: $0.85 |
| 20 |
1B2-F8415-00-00 |
DAMPER 1 Price: $0.40 |
| 21 |
2FJ-24610-20-00 |
CAP ASSY Price: $74.99 |
| 22 |
5B6-21826-10-00 |
PIPE, BREATHER Price: $14.49 |
| 23 |
90464-13003-00 |
CLAMP Price: $8.49 |
| 24 |
4X8-24500-10-00 |
FUEL COCK ASSY 1 Price: $42.99 |
| 25 |
4X8-24512-10-00 |
GASKET Price: $15.49 |
| 26 |
98517-03008-00 |
SCREW, PAN HEAD This part replaces 98507-03008-00. Price: $3.20 |
| 27 |
3AJ-24534-10-00 |
SEAL, COCK Price: $8.49 |
| 28 |
3AC-24523-00-00 |
VALVE PACKING Price: $14.49 |
| 29 |
90202-05187-00 |
WASHER, PLATE This part replaces 90202-05193-00. Price: $1.70 |
| 30 |
90149-06011-00 |
SCREW Price: $2.05 |
| 31 |
90445-10829-00 |
HOSE This part replaces 90445-10041-00. Price: $4.65 |
| 32 |
90467-090A2-00 |
CLIP This part replaces 90467-09W06-00. Price: $4.75 |
| 33 |
1B2-F137W-10-00 |
SCOOP, AIR 1 Price: $102.99 |
| 34 |
90387-060T4-00 |
COLLAR This part replaces 90387-10W66-00. Price: $11.49 |
| 35 |
1B2-F1749-00-00 |
COLLAR Price: $1.15 |
| 36 |
90159-06182-00 |
SCREW, WITH WASHER Price: $10.49 |
| 37 |
90269-07076-00 |
RIVET Price: $8.49 |
| 38 |
1S4-2414H-00-00 |
DAMPER, PLATE 2 This part replaces 1B2-F414H-00-00. Price: $11.99 |
| 39 |
1B2-F137X-10-00 |
SCOOP, AIR 2 Price: $102.99 |
| 40 |
90387-060T4-00 |
COLLAR This part replaces 90387-10W66-00. Price: $11.49 |
| 41 |
1B2-F1749-00-00 |
COLLAR Price: $1.15 |
| 42 |
90159-06182-00 |
SCREW, WITH WASHER Price: $10.49 |
| 43 |
90269-07076-00 |
RIVET Price: $8.49 |
| 44 |
1S4-2414H-00-00 |
DAMPER, PLATE 2 This part replaces 1B2-F414H-00-00. Price: $11.99 |
| 45 |
1S4-2414H-00-00 |
DAMPER, PLATE 2 This part replaces 1B2-F414J-00-00. Price: $11.99 |
| 46 |
BSR-F137N-30-00 |
GRAPHIC 1 Price: $50.99 |
