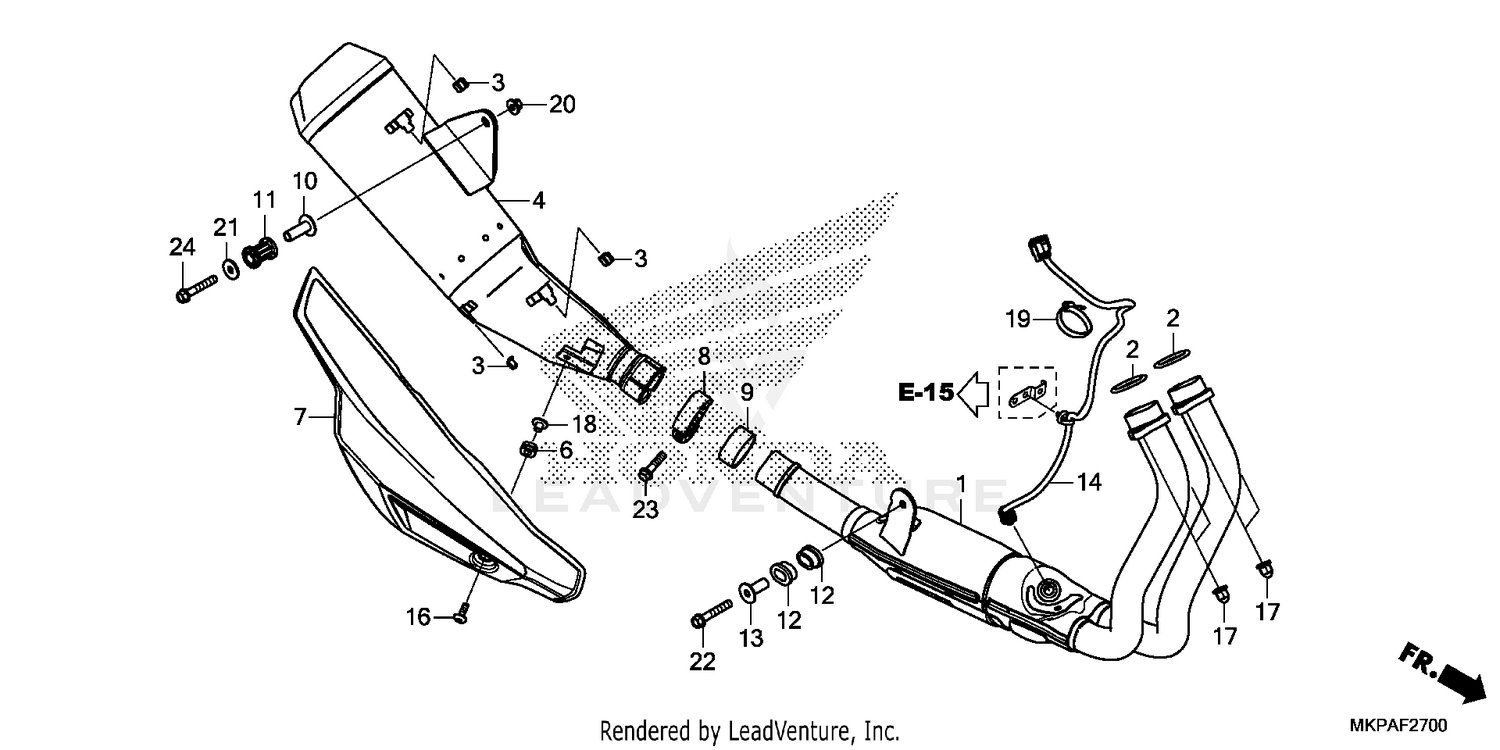

| Ref | Part Number | Description |
|---|
| 1 |
18150-MKP-J00 |
PIPE, EX. Price: $1,193.31 |
| 2 |
18291-MN4-920 |
GASKET, EX. PIPE Price: $6.67 |
| 3 |
18293-MN0-000 |
RUBBER, PROTECTOR Price: $2.44 |
| 4 |
18310-MKP-J00 |
MUFFLER Price: $459.89 |
| 6 |
18320-196-000 |
RUBBER A, PROTECTOR Price: $3.05 |
| 7 |
18350-MJW-J00 |
COVER, MUFFLER Price: $125.15 |
| 8 |
18376-413-000 |
BAND, L. RR. MUFFLER (R. SIDE) Price: $44.47 |
| 9 |
18391-MJW-J01 |
GASKET, MUFFLER Price: $13.05 |
| 10 |
18420-MGZ-J00 |
COLLAR, MUFFLER MOUNTING Price: $6.29 |
| 11 |
18421-MGZ-J00 |
RUBBER, MUFFLER MOUNTING Price: $2.13 |
| 12 |
18422-MGZ-J00 |
RUBBER, EX. PIPE MOUNTING Price: $10.69 |
| 13 |
18423-MGZ-J00 |
COLLAR, EX. PIPE MOUNTING Price: $5.65 |
| 14 |
36533-MKP-D01 |
SENSOR, AIR FUEL RATIO Price: $182.82 |
| 16 |
90118-MGZ-J00 |
SCREW, PAN (6X20) Price: $1.22 |
| 17 |
90304-KPH-700 |
NUT, HEX. CAP (8MM) Price: $1.95 |
| 18 |
90502-KGB-610 |
COLLAR, HEAD SIDE COVER Price: $2.42 |
| 19 |
90652-KT1-771 |
BAND, WIRE (BLACK) Price: $5.62 |
| 20 |
94050-08000 |
NUT, FLANGE (8MM) NUT, FLANGE (10MM) Price: $0.98 |
| 21 |
94103-08000 |
WASHER, PLAIN (8MM) Price: $0.75 |
| 22 |
95701-08050-00 |
BOLT, FLANGE (8X50) Price: $2.57 |
| 23 |
96400-08035-04 |
BOLT, FLANGE (8X35) Price: $0.73 |
| 24 |
95801-08050-00 |
BOLT, FLANGE (8X50) Price: $3.75 |
