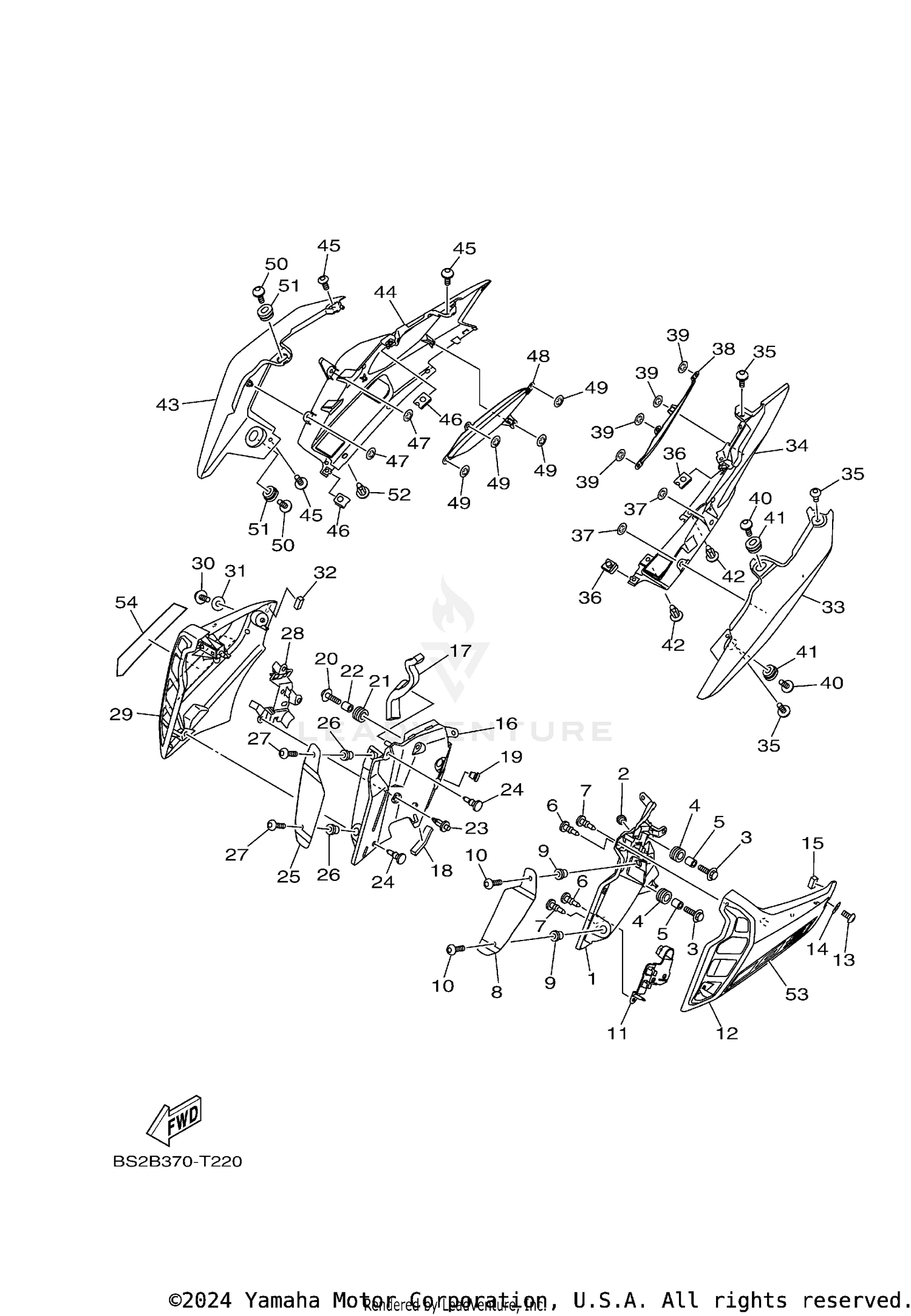

| Ref | Part Number | Description |
|---|
| 1 |
BS2-2172E-00-00 |
STAY, SIDE COVER 1 Price: $77.99 |
| 2 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 3 |
90119-06118-00 |
BOLT, WITH WASHER This part replaces 90119-06267-00. Price: $9.49 |
| 4 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 5 |
90387-06057-00 |
COLLAR Price: $9.49 |
| 6 |
90269-06008-00 |
RIVET Price: $9.49 |
| 7 |
90269-06001-00 |
RIVET Price: $6.49 |
| 8 |
BS2-2837N-00-00 |
GRILL, AIR INTAKE 1 Price: $20.99 |
| 9 |
90179-06520-00 |
NUT Price: $9.49 |
| 10 |
90111-06146-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.35 |
| 11 |
BS2-8336T-00-00 |
HOLDER 1 Price: $7.49 |
| 13 |
90111-05002-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 14 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 15 |
1RC-21747-00-00 |
DAMPER Price: $3.55 |
| 16 |
BS2-2174E-00-00 |
STAY, SIDE COVER 2 Price: $77.99 |
| 17 |
90520-10022-00 |
DAMPER, PLATE Price: $1.55 |
| 18 |
90520-10003-00 |
DAMPER, PLATE Price: $1.00 |
| 19 |
90338-07180-00 |
PLUG This part replaces 90338-06018-00. Price: $8.49 |
| 20 |
90119-06118-00 |
BOLT, WITH WASHER This part replaces 90119-06267-00. Price: $9.49 |
| 21 |
90480-14003-00 |
GROMMET Price: $9.49 |
| 22 |
90387-06057-00 |
COLLAR Price: $9.49 |
| 23 |
90269-06008-00 |
RIVET Price: $9.49 |
| 24 |
90269-06001-00 |
RIVET Price: $6.49 |
| 25 |
BS2-2837R-00-00 |
GRILL, AIR INTAKE 2 Price: $17.49 |
| 26 |
90179-06520-00 |
NUT Price: $9.49 |
| 27 |
90111-06146-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.35 |
| 28 |
BS2-8336U-00-00 |
HOLDER Price: $11.49 |
| 30 |
90111-05002-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 31 |
90202-05180-00 |
WASHER, PLATE Price: $11.49 |
| 32 |
1RC-21747-00-00 |
DAMPER Price: $3.55 |
| 34 |
BS2-21731-00-00 |
COVER, SIDE 3 Price: $75.99 |
| 35 |
90111-05002-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 36 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 37 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 38 |
BS2-2171Y-00-00 |
GRILLE, SIDE COVER 1 Price: $32.99 |
| 39 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 40 |
90109-06037-00 |
BOLT Price: $8.49 |
| 41 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 42 |
90269-07007-00 |
RIVET Price: $4.40 |
| 44 |
BS2-21741-00-00 |
COVER, SIDE 4 Price: $75.99 |
| 45 |
90111-05002-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 46 |
90183-050A6-00 |
NUT, SPRING This part replaces 90183-05076-00. Price: $2.95 |
| 47 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 48 |
BS2-2172Y-00-00 |
GRILLE, SIDE COVER 2 Price: $33.99 |
| 49 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 50 |
90109-06037-00 |
BOLT Price: $8.49 |
| 51 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 52 |
90269-07007-00 |
RIVET Price: $4.40 |
