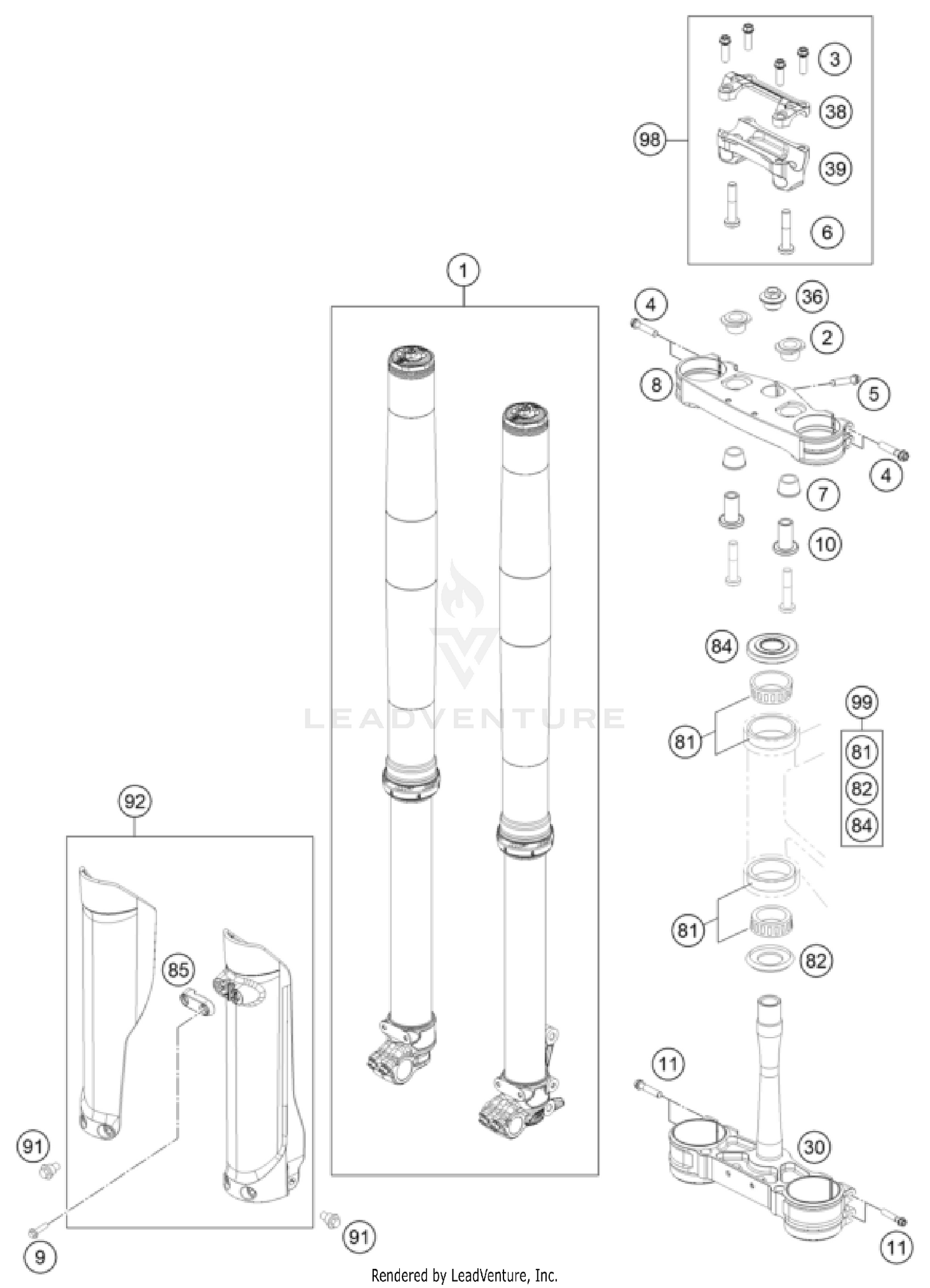

| Ref | Part Number | Description |
|---|
| 2 |
A46001035001 |
Rubber bushing Price: $1.99 |
| 3 |
0025080256 |
HH collar screw M8x25 Price: $2.41 |
| 4 |
0025080406 |
HH COLLAR SCREW M8X40 TX40 Price: $4.83 |
| 5 |
0015080256S |
HH COLLAR SCREW M8X25 WS=10 Price: $3.62 |
| 6 |
0035100509S |
AH-COLLAR SCREW M10X50 ISA45 Price: $8.35 |
| 7 |
83001040000 |
RUBBER BUSH Price: $6.15 |
| 8 |
A46001134022C1 |
Triple clamp top X=22mm This part replaces A46001034022C1. Price: $369.15 |
| 9 |
0017060206 |
SCREW F. PLASTIC K60X20AL SW6 Price: $3.99 |
| 10 |
A46001039034 |
HANDLEBAR SUPPORT LOWER PART Price: $31.23 |
| 11 |
0025080506 |
HH collar screw M8x50 TX40 Price: $3.62 |
| 30 |
A46001132022C1 |
Bottom triple clamp, cmpl. X=22mm This part replaces A46001032022C1. Price: $459.68 |
| 36 |
A46009082000 |
Collar screw M20x1.5 SW17 Al Price: $3.99 |
| 38 |
79001038000 |
HANDLEBAR CLAMP 28MM Price: $81.61 |
| 39 |
A48001039036 |
Handlebar mount D28ámm-H36ámm Price: $68.74 |
| 81 |
54201081100 |
TAPERED ROLLER BEARING CPL. 06 Price: $60.05 |
| 82 |
77701084000 |
O-RING SUPPORT W. SEALING LIP Price: $22.76 |
| 84 |
A46001086000 |
Steering head seal Price: $26.39 |
| 85 |
77701085100AB |
CLAMP FOR BRAKE HOSE Price: $2.99 |
| 91 |
59001092050 |
SPECIAL SCREW M6X12,5 WS=8 Price: $2.99 |
| 92 |
A46001094000ABI |
Fork protection FE/TC/TE/TX/FX Heritage2 Price: $112.41 |
