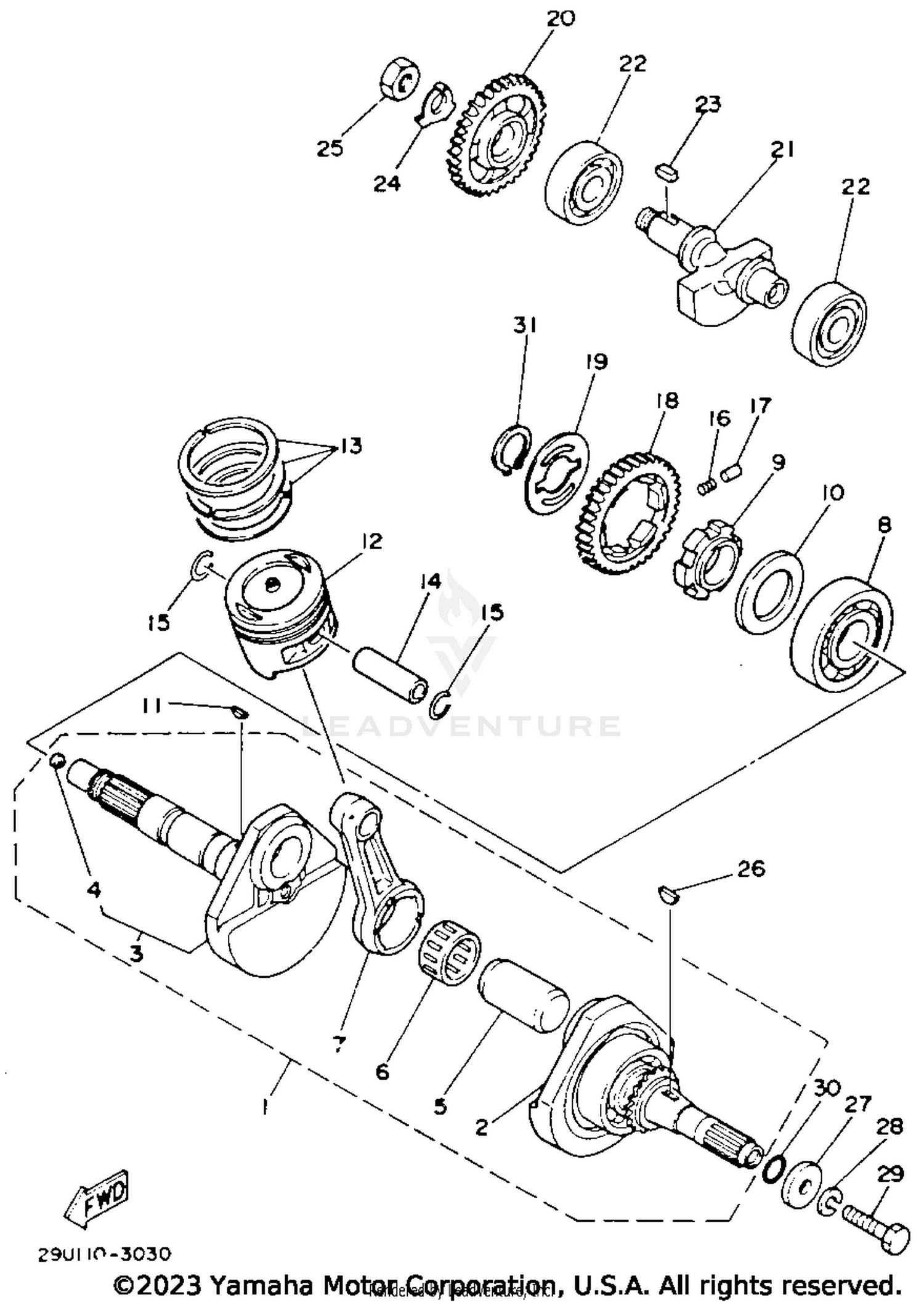

| Ref | Part Number | Description |
|---|
| 1 |
21V-16665-01-00 |
RETAINER, BEARING Price: $38.99 |
| 1 |
5XG-E1400-00-00 |
CRANKSHAFT ASSY This part replaces 29U-11400-01-00. Price: $270.99 |
| 1 |
99999-01954-00 |
CRANKSHAFT ASSEMBLY Price: $440.99 |
| 2 |
29U-11401-09-00 |
CRANK SUB ASSY 1 This part replaces 29U-W1141-00-00. Price: $338.99 |
| 3 |
99999-01953-00 |
CRANK This part replaces 29U-11422-00-00. Price: $148.99 |
| 4 |
90331-09041-00 |
PLUG Price: $9.49 |
| 5 |
5H0-11681-00-00 |
PIN, CRANK 1 Price: $49.99 |
| 6 |
93310-530J3-00 |
BEARING Price: $68.99 |
| 7 |
29U-11651-00-00 |
ROD, CONNECTING Price: $131.99 |
| 8 |
93306-30615-00 |
BEARING (B6306) Price: $90.99 |
| 9 |
59V-11496-00-00 |
BOSS, BUFFER (21V-11496-00) Price: $55.99 |
| 10 |
90201-406F4-00 |
WASHER, PLATE Price: $10.49 |
| 11 |
90280-03017-00 |
KEY, WOODRUFF Price: $8.49 |
| 12 |
29U-11631-00-Y0 |
PISTON STD Price: $152.99 |
| 13 |
29U-11610-00-00 |
PISTON RING SET (STD) Price: $62.99 |
| 13 |
29U-11633-00-00 |
PIN, PISTON Price: $45.99 |
| 15 |
93450-17044-00 |
CIRCLIP Price: $9.49 |
| 16 |
90501-21133-00 |
SPRING, COMPRESSION Price: $9.49 |
| 17 |
93605-10090-00 |
PIN, DOWEL Price: $9.49 |
| 18 |
5H0-11536-00-00 |
GEAR, DRIVE (38T) Price: $131.99 |
| 19 |
90201-266F5-00 |
WASHER, PLATE Price: $5.49 |
| 20 |
5H0-11531-00-00 |
GEAR, BALANCE WEIGHT (38T) Price: $183.99 |
| 21 |
15A-11454-00-00 |
WEIGHT 1 Price: $131.99 |
| 22 |
93306-30443-00 |
BEARING (B6304A3) This part replaces 93306-30427-00. Price: $72.99 |
| 23 |
90282-05065-00 |
KEY, STRAIGHT This part replaces 90282-05013-00. Price: $10.49 |
| 24 |
90215-14205-00 |
WASHER, LOCK Price: $9.49 |
| 25 |
90170-14284-00 |
NUT Price: $10.49 |
| 26 |
90280-05001-00 |
KEY, WOODRUFF This part replaces 90280-16053-00. Price: $13.49 |
| 27 |
90201-10058-00 |
WASHER, PLATE This part replaces 90201-107F8-00. Price: $10.49 |
| 28 |
92990-10100-00 |
WASHER, SPRING Price: $3.25 |
| 29 |
90101-10568-00 |
BOLT Price: $6.49 |
| 30 |
93210-16290-00 |
O-RING Price: $9.49 |
