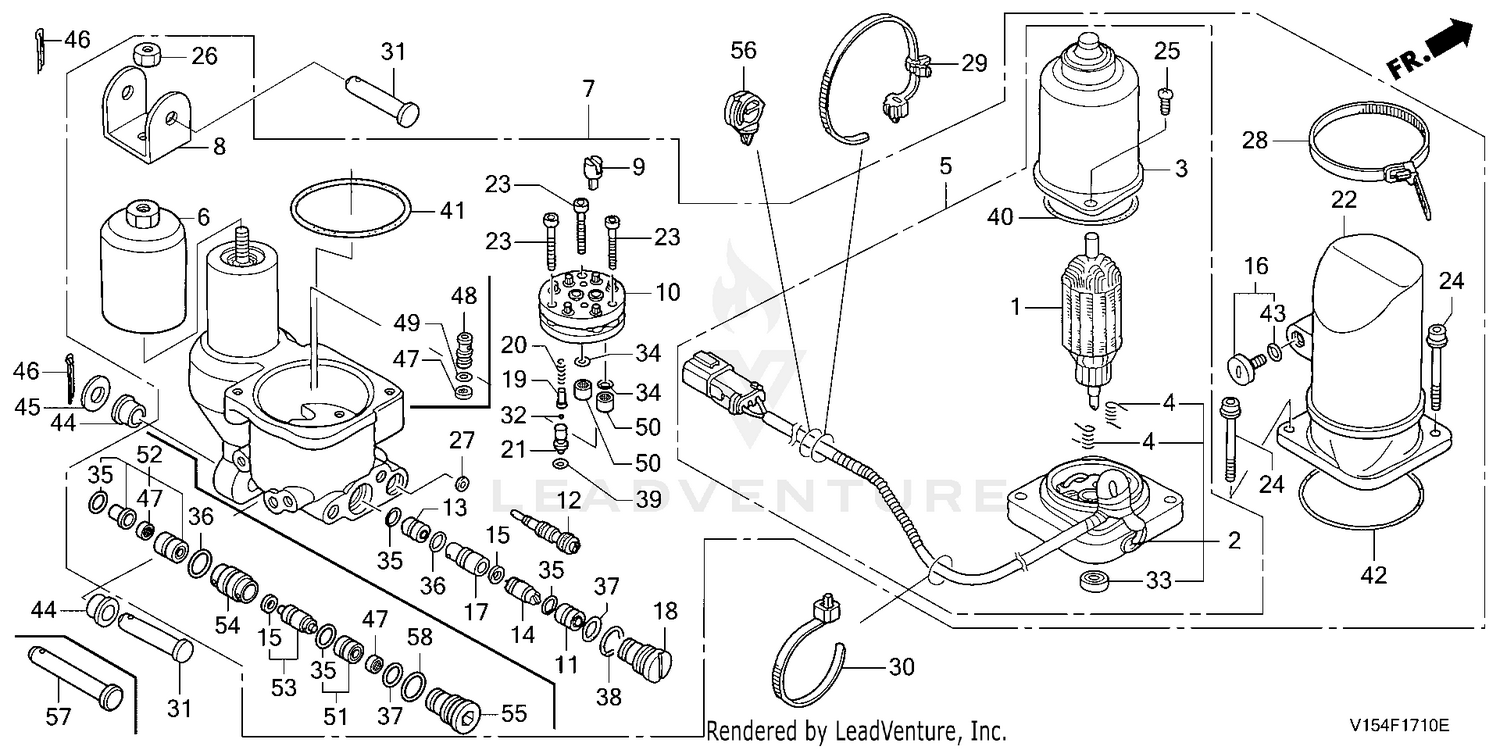

| Ref | Part Number | Description |
|---|
| 1 |
31217-V15-003 |
ARMATURE Price: $95.44 |
| 2 |
36122-V15-003 |
BRACKET ASSY. Price: $283.02 |
| 3 |
36129-V15-003 |
YOKE Price: $40.67 |
| 4 |
36136-V15-013 |
SPRING, MOTOR Price: $6.04 |
| 5 |
36140-V15-003 |
MOTOR ASSY., POWER HEIGHT Price: $219.36 |
| 6 |
52689-V15-003 |
COVER, DUST END Price: $7.32 |
| 7 |
56000-V15-063 |
HEIGHT ASSY., POWER Price: $1,622.08 |
| 8 |
56113-V15-003 |
JOINT, METAL Price: $20.94 |
| 9 |
56113-ZW1-701 |
JOINT, DRIVE Price: $22.48 |
| 10 |
56114-V15-013 |
PUMP Price: $193.98 |
| 12 |
56141-V15-023 |
VALVE, MANUAL Price: $77.08 |
| 15 |
56151-ZV5-822 |
RING, BACK-UP Price: $7.58 |
| 16 |
56160-V15-003 |
BOLT, PLUG Price: $12.52 |
| 19 |
56182-V15-003 |
GUIDE, SPRING Price: $17.08 |
| 20 |
56183-V15-003 |
SPRING, VALVE Price: $3.92 |
| 22 |
56851-V15-003 |
RESERVOIR Price: $50.02 |
| 23 |
90101-V15-003 |
BOLT, SOCKET Price: $9.16 |
| 24 |
90102-V15-003 |
BOLT, SOCKET Price: $11.72 |
| 25 |
90134-V15-003 |
SCREW, PAN (5X0.8) Price: $4.44 |
| 26 |
90301-V15-003 |
NUT, HEX. Price: $5.30 |
| 28 |
90620-766-801 |
BAND, WIRE HARNESS Price: $9.16 |
| 29 |
32161-V15-003 |
BAND, WIRE HARNESS Price: $4.78 |
| 31 |
90752-V15-000 |
PIN (12X46) Price: $15.80 |
| 32 |
90921-766-801 |
BALL, STEEL Price: $3.20 |
| 33 |
91203-ZV5-821 |
OIL SEAL Price: $42.16 |
| 34 |
91309-797-A01 |
O-RING (1.5X8.5) Price: $5.92 |
| 35 |
91305-ZV5-822 |
O-RING (1.5X10.7) Price: $3.20 |
| 36 |
91306-ZV5-821 |
O-RING (1.5X13.5) Price: $4.36 |
| 37 |
91307-ZV5-821 |
O-RING (1.5X15.5) Price: $4.36 |
| 40 |
91318-V15-003 |
O-RING Price: $6.00 |
| 41 |
91351-V15-003 |
O-RING (2.0X62.5) Price: $11.06 |
| 42 |
91352-V15-003 |
O-RING (2.4X66.6) Price: $8.30 |
| 43 |
91353-V15-003 |
O-RING (1.9X9.8) Price: $3.32 |
| 44 |
91552-V15-000 |
BUSH, CYLINDER (UPPER) Price: $2.86 |
| 45 |
94103-12000 |
WASHER, PLAIN (12MM) Price: $1.10 |
| 46 |
94201-30450 |
PIN, COTTER (3.0X45) This part replaces 94201-30250. Price: $1.30 |
| 47 |
56116-V15-003 |
FILTER Price: Call Us |
| 48 |
56191-V15-013 |
SEAT, VALVE Price: Call Us |
| 49 |
91354-V15-003 |
O-RING (1.5X5.5) Price: Call Us |
| 50 |
56117-V15-003 |
FILTER A Price: $10.14 |
| 51 |
56140-797-A03 |
VALVE B Price: $96.46 |
| 52 |
56142-797-A02 |
VALVE C Price: $96.46 |
| 53 |
56150-V15-703 |
SPOOL, VALVE Price: $44.14 |
| 54 |
56161-V15-003 |
SLEEVE Price: $33.82 |
| 55 |
56163-V15-013 |
PLUG Price: $30.38 |
| 56 |
90683-SA0-003 |
CLIP, WIRE HARNESS (25MM) (Honda Code 1226265). Price: $12.48 |
| 57 |
90751-797-000 |
PIN (12X55.5) Price: $5.30 |
