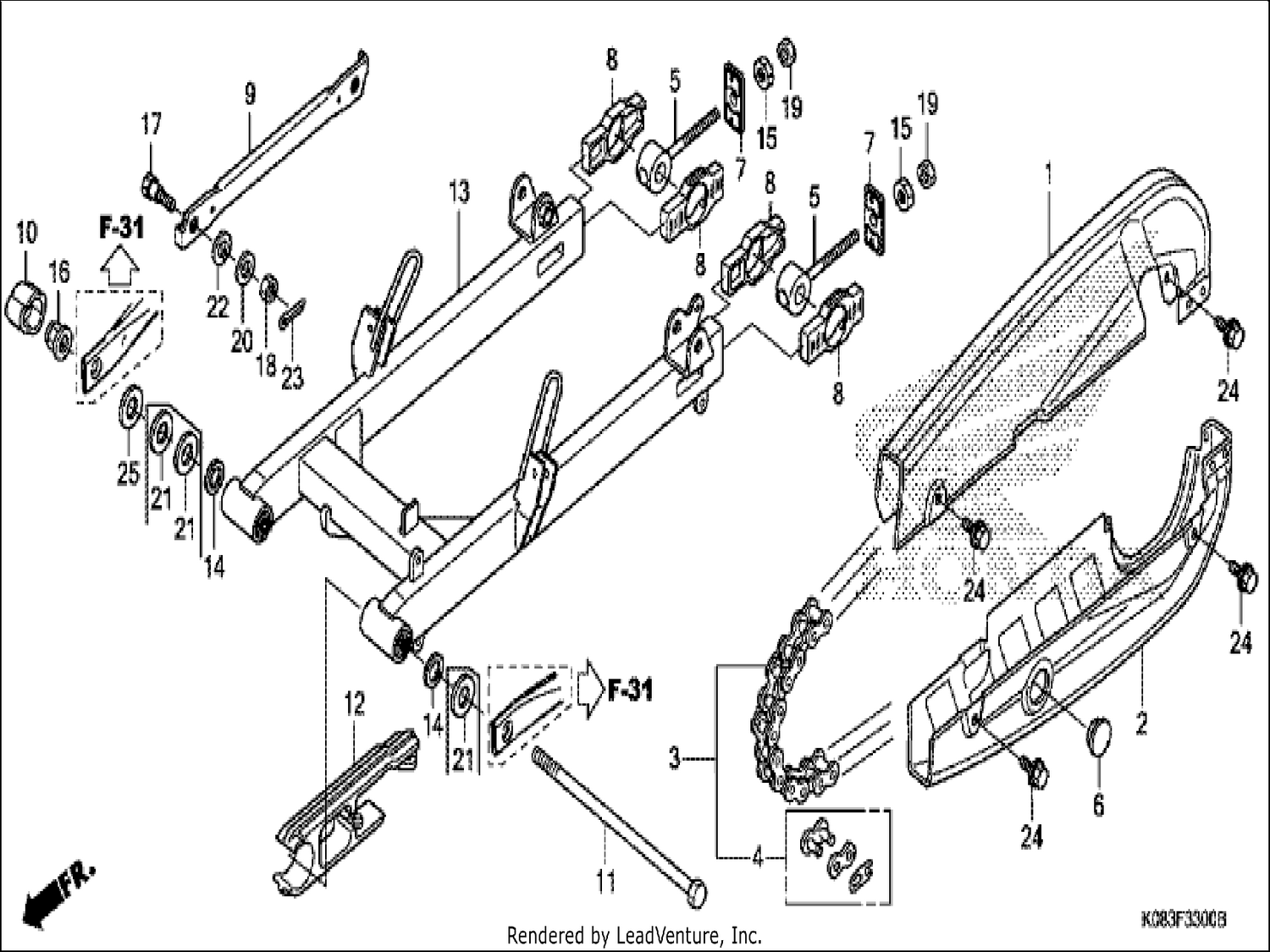

| Ref | Part Number | Description |
|---|
| 1 |
40510K08A40 |
CASE, DRIVE CHAIN UPPER Price: Call Us |
| 2 |
40520K08900 |
CASE, DRIVE CHAIN LOWER Price: Call Us |
| 3 |
40530K08A42 |
CHAIN, DRIVE (KMC428DH 108L) Price: Call Us |
| 4 |
40531KYY901 |
JOINT, DRIVE CHAIN (KMC) Price: Call Us |
| 5 |
40543K08900 |
ADJUSTER COMP., CHAIN Price: Call Us |
| 6 |
40545001000 |
CAP, CHAIN CASE PEEP HOLE Price: Call Us |
| 7 |
40546K08900 |
CAP, SWINGARM END Price: Call Us |
| 8 |
40547K08900 |
ADJUSTER CASE, CHAIN Price: Call Us |
| 9 |
43431KWW640 |
ARM, RR. BRAKE STOPPER Price: Call Us |
| 10 |
44302KTT950 |
CAP, AXLE NUT Price: Call Us |
| 11 |
52101K08A40 |
BOLT, SWINGARM PIVOT Price: Call Us |
| 12 |
52170K08900 |
SLIDER, CHAIN Price: Call Us |
| 13 |
52200K08A40 |
SWINGARM SUB ASSY., RR. Price: Call Us |
| 14 |
90122KWB600 |
WASHER, PIVOT BOLT Price: Call Us |
| 15 |
90302KRS830 |
NUT, SPECIAL, 6MM Price: Call Us |
| 16 |
90306KYA601 |
NUT, FLANGE, 12MM (PT) Price: Call Us |
| 17 |
9281210000 |
BOLT A, STOPPER ARM Price: Call Us |
| 18 |
94001080000S |
NUT, HEX., 8MM Price: Call Us |
| 19 |
94001060000S |
NUT, HEX., 6MM Price: Call Us |
| 20 |
9410108000 |
WASHER, PLAIN, 8MM Price: Call Us |
| 22 |
9411110000 |
WASHER, SPRING, 10MM Price: Call Us |
| 23 |
9420120150 |
PIN, SPLIT, 2.0X15 Price: Call Us |
| 24 |
957010601000 |
BOLT, FLANGE, 6X10 Price: Call Us |
