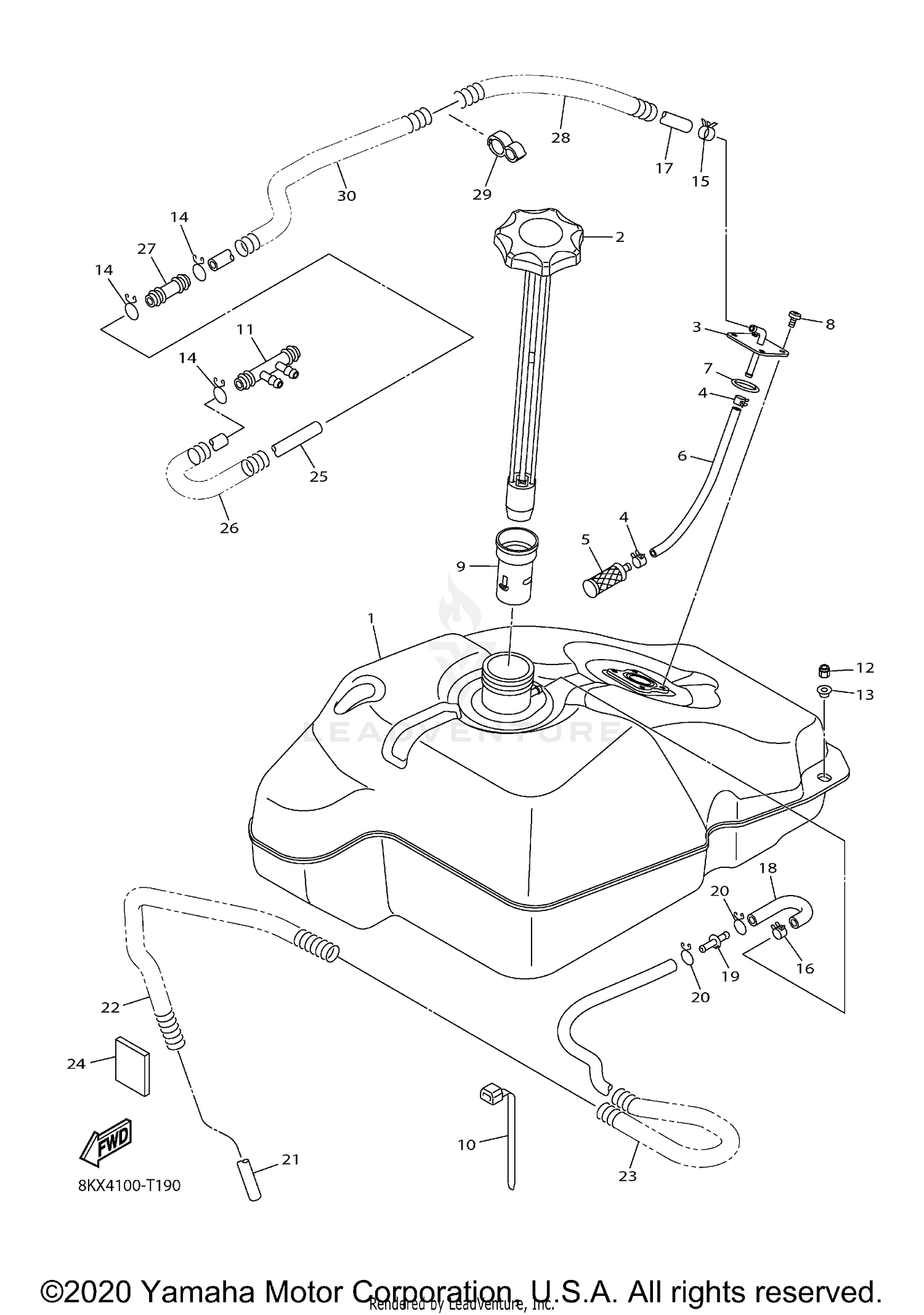

| Ref | Part Number | Description |
|---|
| 1 |
8KX-24111-00-00 |
TANK, FUEL Price: $811.99 |
| 2 |
8KX-24610-01-00 |
CAP ASSY Price: $238.99 |
| 3 |
8KX-24301-00-00 |
SUCTION PIPE COMP. 1 Price: $39.99 |
| 4 |
90467-11044-00 |
CLIP This part replaces 90467-11032-00. Price: $9.49 |
| 5 |
J58-24560-00-00 |
FILTER ASSY Price: $39.99 |
| 6 |
90445-117F2-00 |
HOSE This part replaces 90445-11M27-00. Price: $33.99 |
| 7 |
93210-41041-00 |
O-RING Price: $8.49 |
| 8 |
98980-05010-00 |
SCREW,BIND This part replaces 98902-05010-00. Price: $2.55 |
| 9 |
8KX-24114-00-00 |
TUBE, FILLER Price: $10.49 |
| 10 |
90464-15195-00 |
CLAMP Price: $4.41 |
| 11 |
82M-24376-00-00 |
PIPE, JOINT 1 Price: $34.99 |
| 12 |
95717-08300-00 |
NUT, FLANGE This part replaces 95702-08300-00. Price: $3.05 |
| 13 |
90387-081N1-00 |
COLLAR Price: $8.49 |
| 14 |
90467-11009-00 |
CLIP Price: $11.49 |
| 15 |
90467-11044-00 |
CLIP This part replaces 90467-11032-00. Price: $9.49 |
| 16 |
90467-09026-00 |
CLIP Price: $3.55 |
| 17 |
90445-11099-00 |
HOSE Price: $38.99 |
| 18 |
8KX-24461-00-00 |
PIPE, JOINT Price: $5.49 |
| 19 |
8H8-24376-00-00 |
PIPE, JOINT 1 Price: $5.49 |
| 20 |
90467-08017-00 |
CLIP Price: $11.49 |
| 21 |
91A21-05170-00 |
TUBE, FLEXIBLE Price: $18.49 |
| 22 |
90501-083J9-00 |
SPRING, COMPRESSION Price: $7.49 |
| 23 |
81E-24328-00-00 |
PROTECTOR, PIPE Price: $8.49 |
| 24 |
8V0-23858-00-00 |
SPACER Price: $2.80 |
| 25 |
90445-11068-00 |
HOSE Price: $25.99 |
| 26 |
84M-24327-00-00 |
PROTECTOR, PIPE Price: $4.45 |
| 27 |
878-24379-00-00 |
PIPE, JOINT 4 Price: $6.75 |
| 28 |
90501-08668-00 |
SPRING, COMPRESSION Price: $12.49 |
| 29 |
90464-10233-00 |
CLAMP Price: $8.49 |
