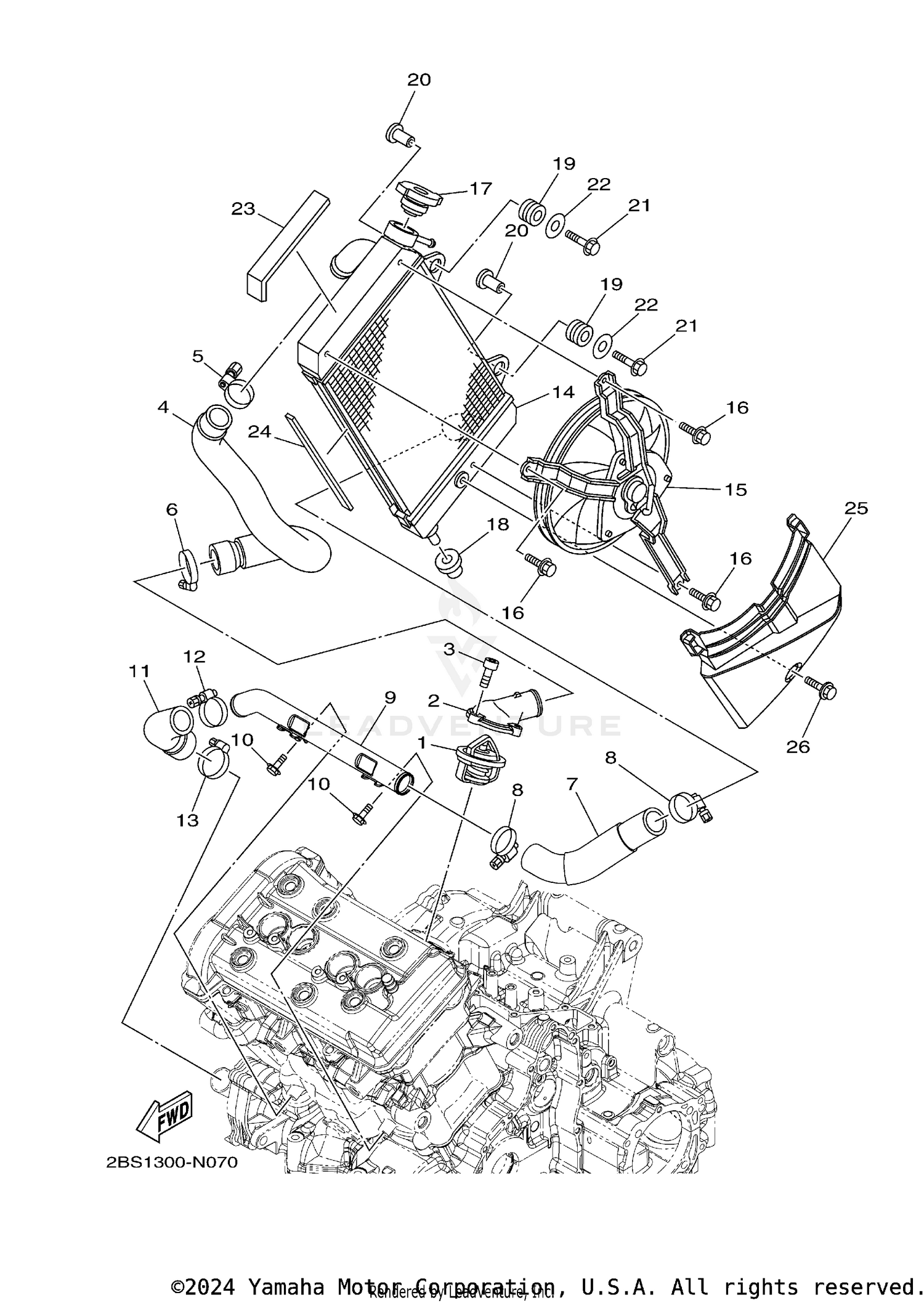

RADIATOR & HOSE
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 23P-12410-01-00 | THERMOSTAT ASSY This part replaces 23P-12410-00-00. Price: $58.99 |
| 2 | 23P-12413-00-00 | COVER, THERMOSTAT Price: $38.99 |
| 3 | 91314-06020-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 91312-06020-00. Price: $2.65 |
| 4 | 23P-12576-00-00 | HOSE 1 Price: $82.99 |
| 5 | 90450-35001-00 | HOSE CLAMP ASSY Price: $6.49 |
| 6 | 90450-38003-00 | HOSE CLAMP ASSY Price: $18.49 |
| 7 | 23P-12578-00-00 | HOSE 3 Price: $33.99 |
| 8 | 90450-35001-00 | HOSE CLAMP ASSY Price: $6.49 |
| 9 | 23P-12483-00-00 | PIPE 3 Price: $79.99 |
| 10 | 95824-06010-00 | BOLT, FLANGE Price: $9.49 |
| 11 | 23P-12588-00-00 | HOSE 5 Price: $18.99 |
| 12 | 90450-35001-00 | HOSE CLAMP ASSY Price: $6.49 |
| 13 | 90450-38003-00 | HOSE CLAMP ASSY Price: $18.49 |
| 14 | 23P-12461-00-00 | RADIATOR COMP Price: $719.99 |
| 15 | 23P-12405-02-00 | BLOWER ASSY Price: $494.99 |
| 16 | 3D8-12675-00-00 | BOLT, BLOWER HOLDING Price: $8.49 |
| 17 | 4FL-12462-00-00 | CAP, RADIATOR This part replaces 22W-12462-00-00. Price: $68.99 |
| 18 | 90480-20003-00 | GROMMET Price: $2.70 |
| 19 | 90480-17010-00 | GROMMET Price: $4.85 |
| 20 | 90387-06256-00 | COLLAR Price: $5.49 |
| 21 | 95812-06035-00 | BOLT, FLANGE Price: $5.49 |
| 22 | 90201-06095-00 | WASHER, PLATE Price: $9.49 |
| 23 | 4D9-21747-00-00 | DAMPER Price: $7.49 |
| 24 | 4FU-21747-00-00 | DAMPER Price: $7.49 |
| 25 | 23P-2137V-00-00 | GUIDE, AIR 2 Price: $32.99 |
