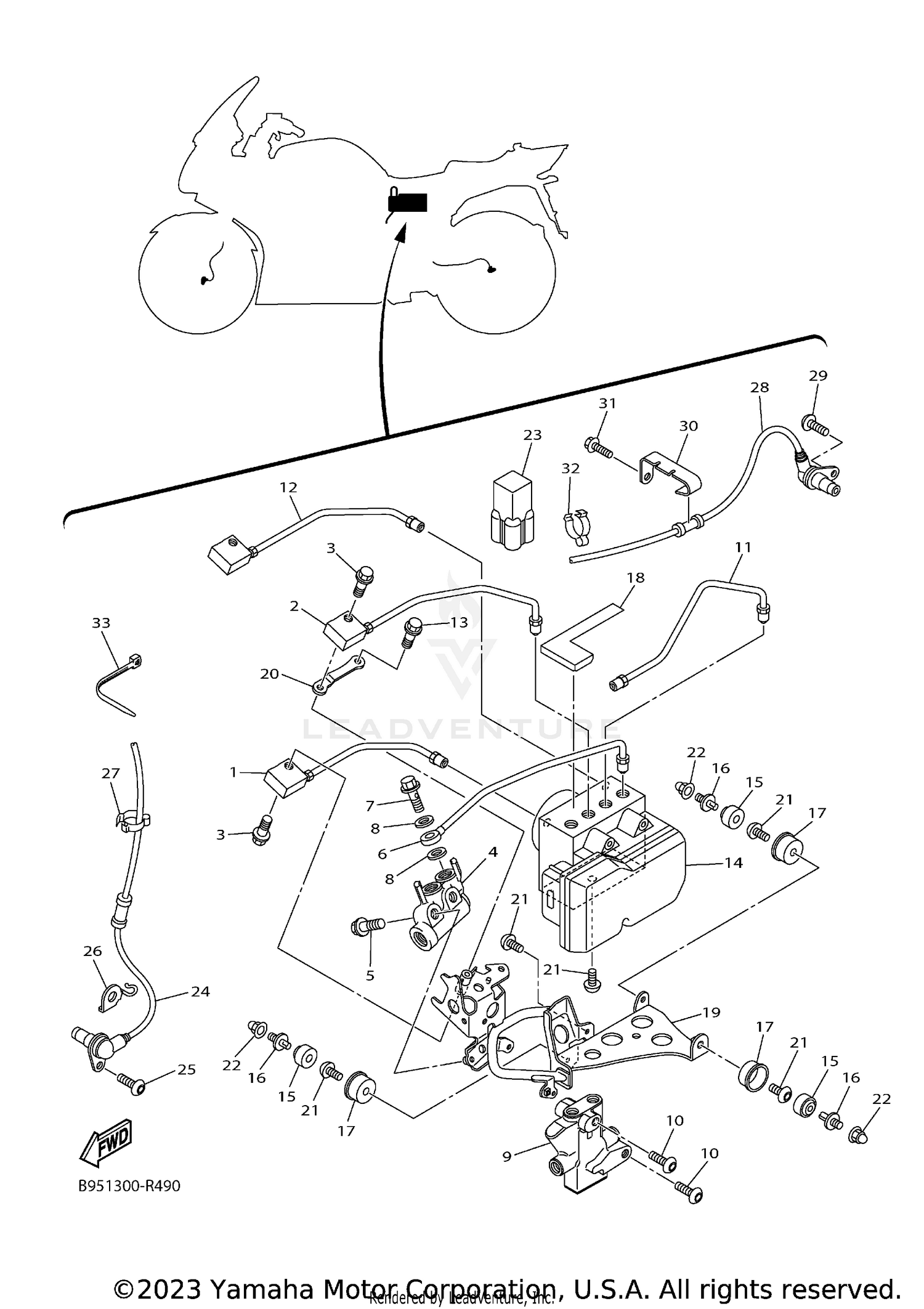

| Ref | Part Number | Description |
|---|
| 1 |
3P6-25871-10-00 |
PIPE, BRAKE Price: $46.99 |
| 2 |
3P6-25882-20-00 |
PIPE, BRAKE 2 Price: $52.99 |
| 3 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 4 |
3P6-25940-00-00 |
METERING VALVE ASSY Price: $250.99 |
| 5 |
95817-06030-00 |
BOLT,FLANGE This part replaces 95802-06030-00. Price: $4.65 |
| 6 |
3P6-2588A-10-00 |
PIPE, BRAKE 4 Price: $52.99 |
| 7 |
90401-10020-00 |
BOLT, UNION Price: $10.49 |
| 8 |
90430-10005-00 |
GASKET Price: $9.49 |
| 9 |
3P6-25884-00-00 |
VALVE, PROPORTIONING Price: $143.99 |
| 10 |
92012-06040-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 11 |
3P6-2588B-01-00 |
PIPE, BRAKE 5 Price: $11.49 |
| 12 |
3P6-25883-20-00 |
PIPE, BRAKE 3 Price: $52.99 |
| 13 |
95022-06025-00 |
BOLT, FLANGE Price: $1.90 |
| 14 |
1MC-85930-08-00 |
HYDRAULIC UNIT ASSY Price: $1,407.99 |
| 15 |
5CG-85113-00-00 |
DAMPER Price: $4.00 |
| 16 |
5CG-2535E-00-00 |
BOLT Price: $4.20 |
| 17 |
3P6-85916-00-00 |
CAP, DAMPER Price: $4.70 |
| 18 |
3P6-2117G-00-00 |
PROTECTOR Price: $18.49 |
| 19 |
1MD-2175T-00-00 |
BRACKET 1 Price: $216.99 |
| 20 |
3P6-2172E-00-00 |
STAY, SIDE COVER 1 Price: $3.70 |
| 21 |
92012-06010-00 |
BOLT, BUTTON HEAD Price: $4.65 |
| 22 |
90176-08005-00 |
NUT, CROWN Price: $2.40 |
| 23 |
3YA-82378-00-00 |
CONNECTOR Price: $11.49 |
| 24 |
1MD-85970-01-00 |
WHEEL SENSOR ASSY, F Price: $135.99 |
| 25 |
92012-06012-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 26 |
1MD-23317-00-00 |
HOLDER, CABLE Price: $31.99 |
| 27 |
90464-14003-00 |
CLAMP Price: $39.99 |
| 28 |
3P6-85980-11-00 |
WHEEL SENSOR ASSY, R Price: $178.99 |
| 29 |
92012-06012-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 30 |
3P6-86159-00-00 |
HOLDER, WIRE Price: $22.99 |
| 31 |
90105-05014-00 |
BOLT, FLANGE Price: $2.95 |
| 32 |
90464-12013-00 |
CLAMP Price: $9.49 |
