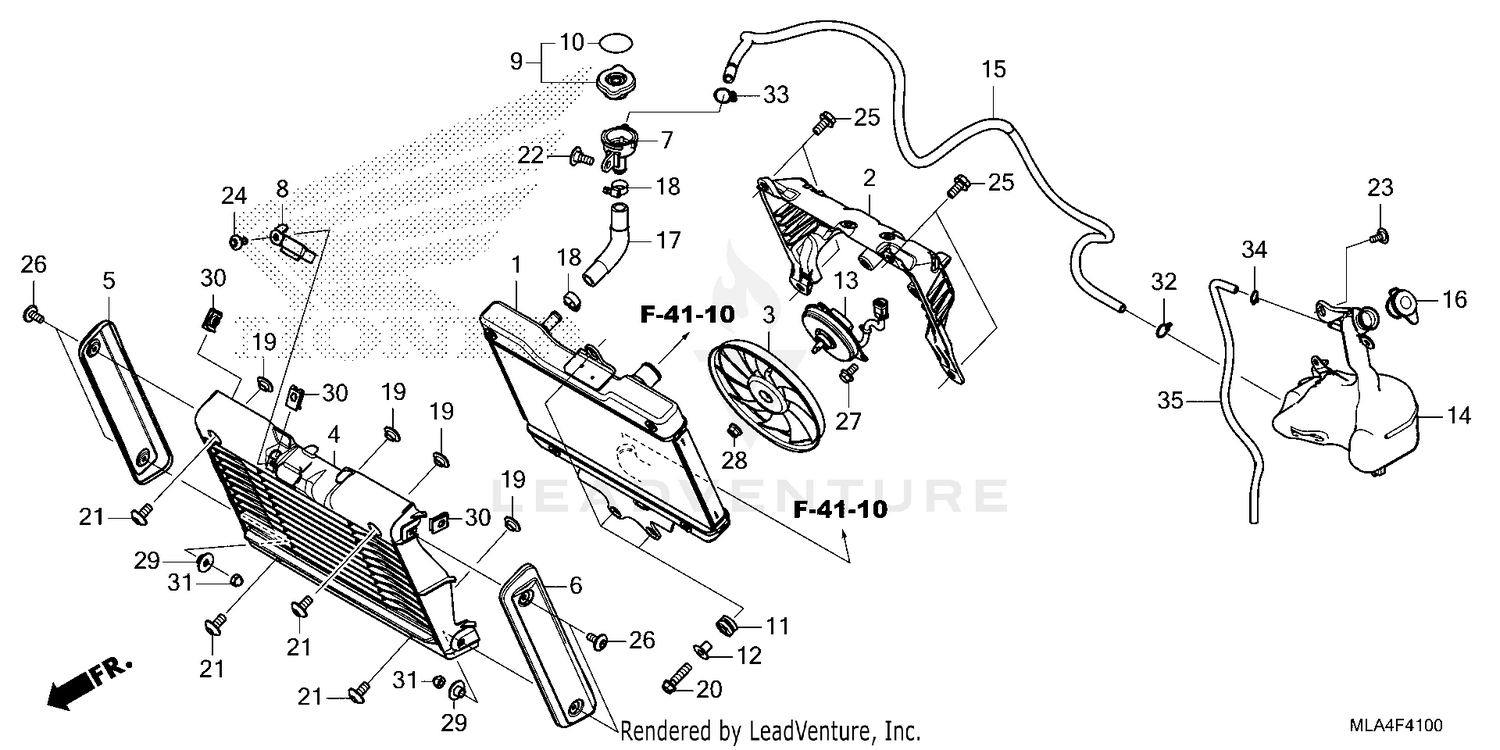

| Ref | Part Number | Description |
|---|
| 1 |
19010-MLA-A01 |
RADIATOR (TOYO) Price: $780.60 |
| 2 |
19015-MLA-A01 |
SHROUD Price: $84.05 |
| 3 |
19020-MFG-D01 |
FAN, COOLING Price: $46.91 |
| 4 |
19032-MLA-A00 |
GRILLE, RADIATOR Price: $183.75 |
| 5 |
19033-MLA-A00 |
COVER, R. RADIATOR SIDE Price: $32.40 |
| 6 |
19034-MLA-A00 |
COVER, L. RADIATOR SIDE Price: $32.40 |
| 7 |
19035-KVZ-631 |
FILLER, NECK Price: $31.78 |
| 8 |
19036-MLA-A00 |
BAND, HARNESS Price: $4.91 |
| 9 |
19037-GEE-710 |
CAP, RADIATOR Price: $36.69 |
| 10 |
19046-PAA-A00 |
LABEL, RADIATOR CAP Price: $3.50 |
| 11 |
19051-KA3-830 |
RUBBER, RADIATOR MOUNTING Price: $4.16 |
| 12 |
19052-MGH-640 |
COLLAR, RADIATOR MOUNTING Price: $2.84 |
| 13 |
19080-MLA-A01 |
MOTOR ASSY., FAN (TOYO) Price: $257.65 |
| 14 |
19101-MLA-A00 |
TANK, RADIATOR RESERVE Price: $51.75 |
| 15 |
19102-MLA-A00 |
TUBE ASSY., RESERVE TANK Price: $23.36 |
| 16 |
19109-KBP-900 |
CAP, RESERVE TANK Price: $1.82 |
| 17 |
19504-MLA-A00 |
HOSE, FILLER NECK Price: $15.58 |
| 18 |
19505-KS6-700 |
CLAMP, WATER HOSE (A) Price: $13.25 |
| 19 |
61105-MA3-000 |
COLLAR, FR. FENDER Price: $4.35 |
| 20 |
90021-GHB-670 |
BOLT, FLANGE (6X22) Price: $2.49 |
| 21 |
90101-K87-A00 |
BOLT, SOCKET SPECIAL (6X12) Price: $1.22 |
| 22 |
90106-KBV-000 |
SCREW, PAN (6X14) Price: $4.91 |
| 23 |
90114-MAC-780 |
BOLT, FR. DISK COVER (FOR RR.) Price: $3.89 |
| 24 |
90114-MLA-A00 |
SCREW, SPECIAL (5X10.5) Price: $2.98 |
| 25 |
90120-GHB-611 |
BOLT-WASHER (6X14) Price: $3.05 |
| 26 |
90154-MLA-A00 |
BOLT, SOCKET (5X12) Price: $3.11 |
| 27 |
90196-MBB-003 |
BOLT, FLANGE (5X10) Price: $3.04 |
| 28 |
90315-MK3-003 |
NUT, SERRATE (5MM) Price: $2.65 |
| 29 |
90505-MGZ-A00 |
COLLAR Price: $1.98 |
| 30 |
90677-KAN-961 |
NUT, CLIP (5MM) Price: $5.11 |
| 31 |
94021-05070-0S |
NUT, CAP (5MM) Price: $1.38 |
| 32 |
95002-02100 |
CLIP, TUBE (B10) Price: $1.98 |
| 33 |
95002-02120 |
CLIP, TUBE (B12) Price: $2.03 |
| 34 |
95002-50000 |
CLIP, TUBE (C9) Price: $1.32 |
