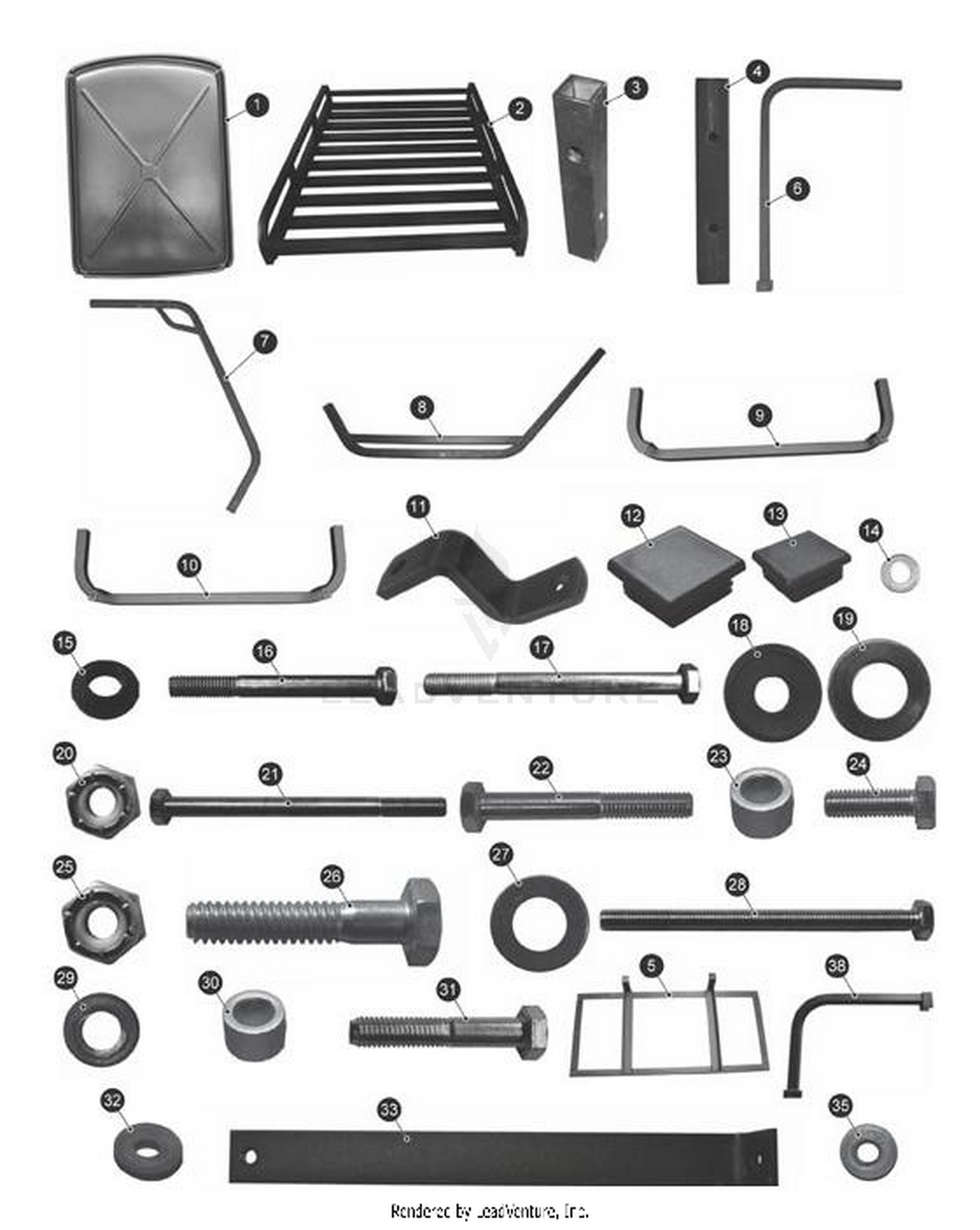

| Ref | Part Number | Description |
|---|
| 1 |
616288 |
OBS-Roof Standard (New) Not Available Price: |
| 2 |
616215 |
R/B 616215M Basket Roof Not Available Price: |
| 3 |
616550 |
XT-ALUM SLEEVE BOTTOM Price: $75.80 |
| 4 |
616656 |
XTAluminum Sleeve Bottom(text) Price: $62.60 |
| 5 |
616338 |
R/B 616338M XT Flip Seat Frame Not Available Price: |
| 6 |
616339 |
XT Rear Roof Support Not Available Price: |
| 7 |
616340 |
XT Front Roof Support Price: $185.44 |
| 8 |
616341 |
R/B 616341M XT Bottom Rail Not Available Price: |
| 9 |
616342 |
XT Front Roof Brace Not Available Price: |
| 10 |
616343 |
R/B 616343M XT Rear Roof Brace Not Available Price: |
| 12 |
616657 |
Plastic Strut Plug 1.5 Not Available Price: |
| 13 |
616658 |
Plastic Strut Plug 1.0 Not Available Price: |
| 14 |
616592 |
R/B 616671 M8 DIN 1.25 STL FLAT WASH Not Available Price: |
| 15 |
616853 |
Shoulder Bushing Not Available Price: |
| 16 |
616595 |
M8x 1.25x60mm DIN931 CLASS 8.8 This part replaces 616594. Price: $4.99 |
| 18 |
616855 |
RUBBER WASHER,8mm x 19.25mm x 4.7mm Price: $4.58 |
| 19 |
616671 |
FLAT WASHER, 15.8 X 8.5 X 1.5 Price: $1.99 |
| 20 |
616673 |
LOCK NUT 8MM X 1.25 BLACK Price: $2.99 |
| 23 |
616696 |
Spacer Front Roof Bracket Not Available Price: |
| 25 |
616673 |
LOCK NUT 8MM X 1.25 BLACK Price: $2.99 |
| 26 |
N/S |
NON-SERVICEABLE PART Price: Call Us |
| 28 |
616694 |
M8 - 1.25 x 110 Not Available Price: |
| 29 |
603823 |
FLAT WASHER, M10 Price: $2.99 |
| 30 |
616696 |
Spacer Front Roof Bracket Not Available Price: |
| 31 |
616672 |
HEX HEAD BOLT, M8-1.25 X 60 Price: $6.99 |
| 32 |
616701 |
RUBBER WASHER, 1.5MM X .76MM Price: $3.99 |
| 33 |
616337 |
R/B 616337M XT Flip Seat Support Price: $16.34 |
| 34 |
616289 |
ASSY,TOP SYSTEM,ROOF Price: Call Us |
| 35 |
616291 |
RUBBER GASKET, ROOF Not Available Price: |
| 36 |
616315 |
XT Windshield Price: $226.95 |
| 37 |
616318 |
XT WINDSHIELD CLIPS EACH Price: $19.26 |
| 38 |
616344 |
XT Side Load Brace Not Available Price: |
| 39 |
616864 |
R/B 616864M Rear Cargo Deck, Blk ALM Not Available Price: |
