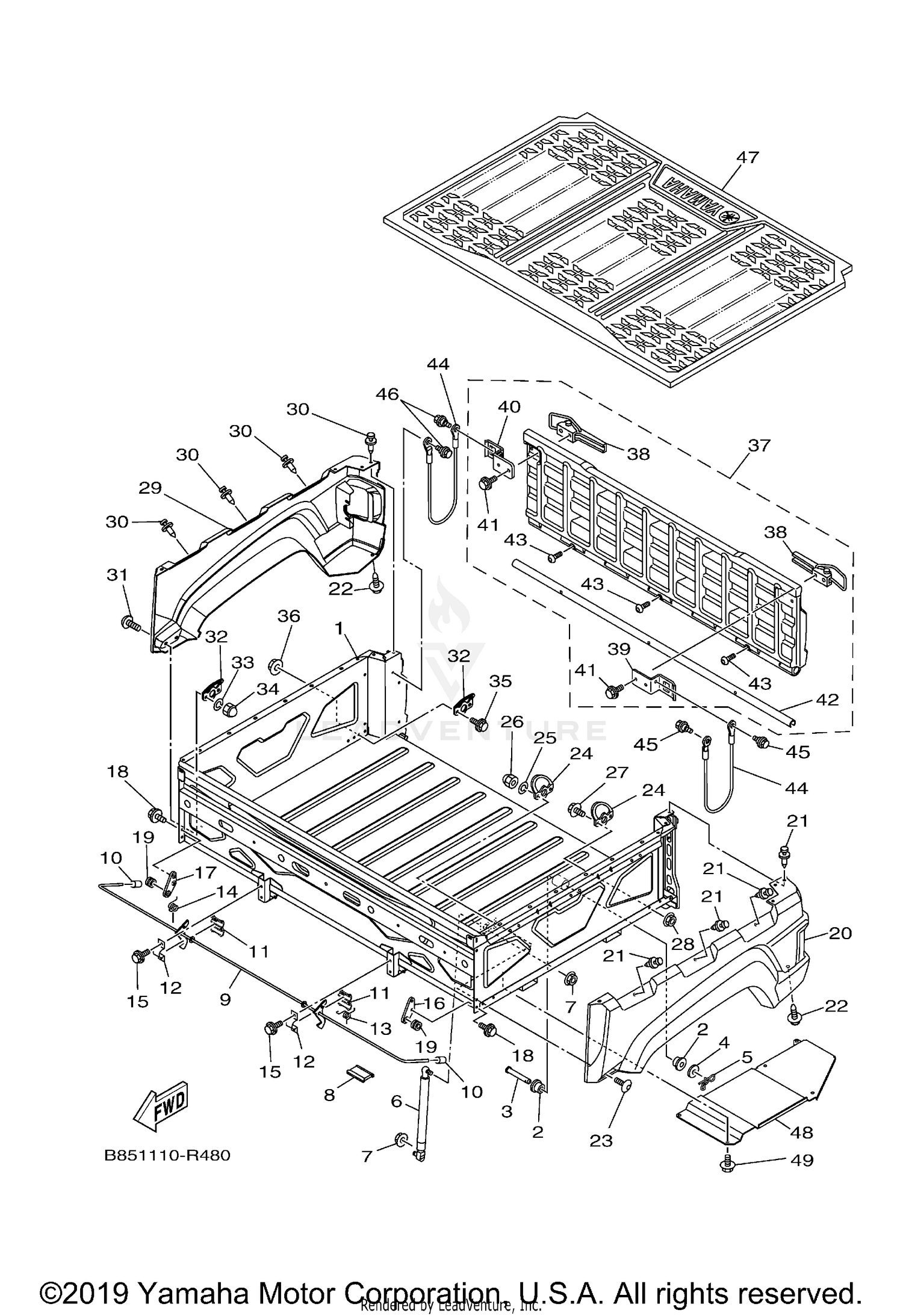

| Ref | Part Number | Description |
|---|
| 1 |
B42-F4850-00-00 |
CARRIER BOX ASSY Price: $788.99 |
| 2 |
JW6-F2123-00-00 |
BUSH 1 Price: $2.80 |
| 3 |
1XD-F7827-00-00 |
PIN, TAPER Price: $2.65 |
| 4 |
90201-14212-00 |
WASHER, PLATE This part replaces 90201-133E5-00. Price: $9.49 |
| 5 |
90468-16191-00 |
CLIP Price: $9.49 |
| 6 |
2PG-F8415-00-00 |
DAMPER 1 Price: $31.99 |
| 7 |
95602-08200-00 |
NUT, SELF-LOCKING Price: $3.20 |
| 8 |
B42-F113B-00-00 |
DAMPER Price: $4.05 |
| 9 |
1XD-K7180-00-00 |
LATCH ASSY Price: $56.99 |
| 10 |
5UG-K818M-00-00 |
CAP, PROTECTOR END 4 Price: $2.60 |
| 11 |
1XD-F4571-00-00 |
BUSHING Price: $1.50 |
| 12 |
1XD-F839N-00-00 |
HOLDER Price: $2.10 |
| 13 |
1XD-F4758-00-00 |
SPRING Price: $2.75 |
| 14 |
1XD-F4758-10-00 |
SPRING Price: $1.50 |
| 15 |
95812-06010-00 |
BOLT, FLANGE Price: $3.20 |
| 16 |
1XD-F849N-00-00 |
BRACKET, TRUNK LOCK Price: $5.49 |
| 17 |
1XD-F849N-10-00 |
BRACKET, TRUNK LOCK Price: $5.49 |
| 18 |
95812-06010-00 |
BOLT, FLANGE Price: $3.20 |
| 19 |
90480-12475-00 |
GROMMET This part replaces 90480-15235-00. Price: $9.49 |
| 20 |
1XD-K8191-00-00 |
PANEL, REAR FENDER 1 Price: $145.99 |
| 21 |
90269-07805-00 |
RIVET Price: $1.75 |
| 22 |
90119-06226-00 |
BOLT, WITH WASHER Price: $2.80 |
| 23 |
90111-06814-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.00 |
| 24 |
5UG-F4867-00-00 |
HOOK Price: $16.49 |
| 25 |
92995-06100-00 |
WASHER, SPRING This part replaces 92902-06100-00. Price: $3.45 |
| 26 |
95380-06800-00 |
NUT, CROWN This part replaces 95302-06800-00. Price: $9.49 |
| 27 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
| 28 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 29 |
1XD-K8192-00-00 |
PANEL, REAR FENDER 2 Price: $143.99 |
| 30 |
90269-07805-00 |
RIVET Price: $1.75 |
| 31 |
90111-06814-00 |
BOLT, HEX. SOCKET BUTTON Price: $2.00 |
| 32 |
5UG-F4867-00-00 |
HOOK Price: $16.49 |
| 33 |
92995-06100-00 |
WASHER, SPRING This part replaces 92902-06100-00. Price: $3.45 |
| 34 |
95380-06800-00 |
NUT, CROWN This part replaces 95302-06800-00. Price: $9.49 |
| 35 |
95817-06016-00 |
BOLT, FLANGE This part replaces 95812-06016-00. Price: $1.95 |
| 36 |
95604-06200-00 |
NUT, U FLANGE This part replaces 95602-06200-00. Price: $2.95 |
| 37 |
1XD-K810N-00-00 |
REAR STORAGE LID COMP. Price: $180.99 |
| 38 |
5UG-F389E-00-00 |
LATCH Price: $28.99 |
| 39 |
1XD-F83D1-00-00 |
STOPPER 1 Price: $9.49 |
| 40 |
1XD-F83D2-00-00 |
STOPPER 2 Price: $9.49 |
| 41 |
95812-06035-00 |
BOLT, FLANGE Price: $5.49 |
| 42 |
1XD-F463F-00-00 |
HINGE 2 Price: $48.99 |
| 43 |
90149-06846-00 |
SCREW Price: $1.55 |
| 44 |
5UG-K7195-10-00 |
HOLDER, CABLE Price: $33.99 |
| 45 |
90109-06212-00 |
BOLT Price: $9.49 |
| 46 |
90109-06212-00 |
BOLT Price: $9.49 |
| 47 |
1XD-K8241-10-00 |
MAT, REAR FLOOR This part replaces 1XD-K8241-01-00. Price: $129.99 |
| 48 |
1XD-F2891-00-00 |
INSULATOR, MOUNTING Price: $36.99 |
