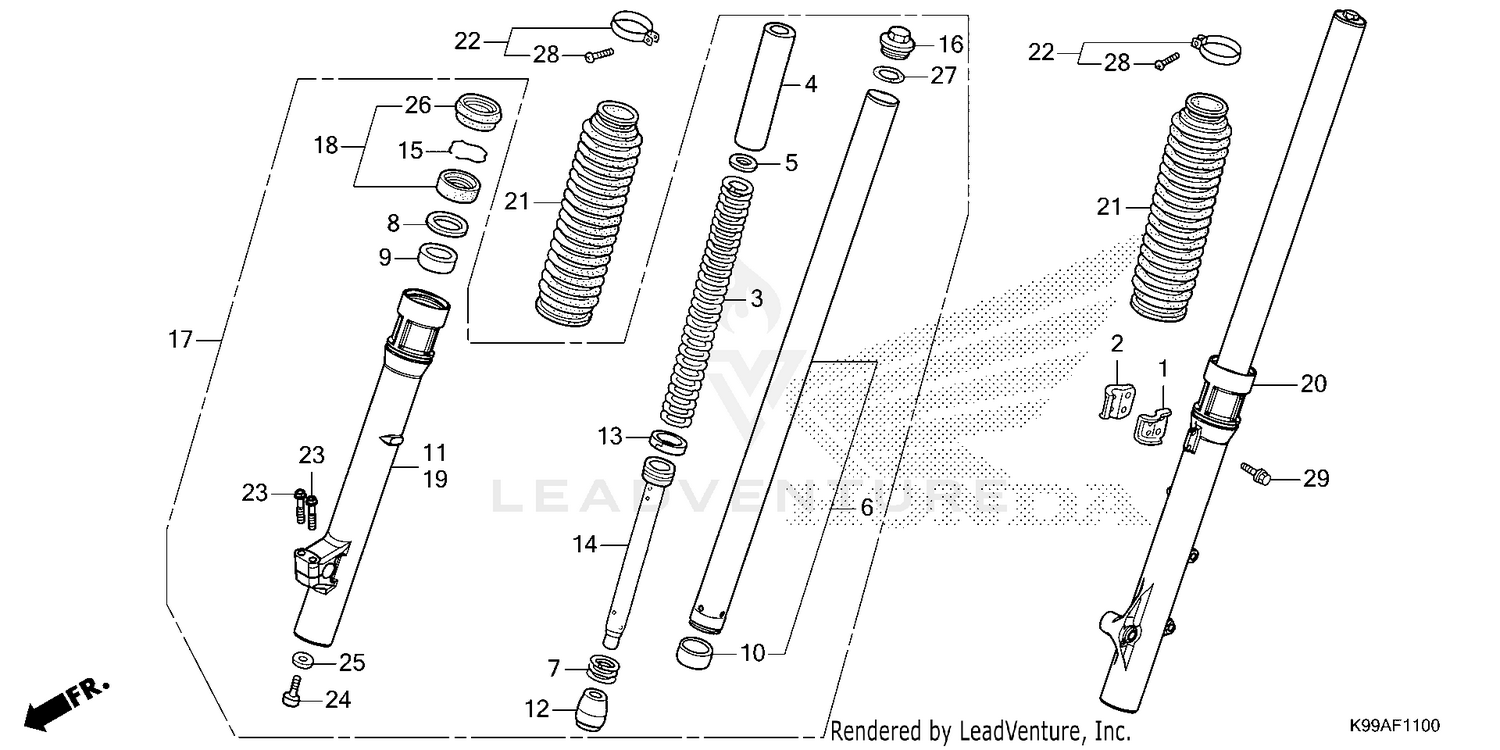

| Ref | Part Number | Description |
|---|
| 1 |
45461-K99-A70 |
CLAMP A, BRAKE HOSE Price: $6.58 |
| 2 |
45462-K99-A70 |
CLAMP B, BRAKE HOSE Price: $2.67 |
| 3 |
51401-K99-A71 |
SPRING, FR. FORK Price: $29.96 |
| 4 |
51402-KV3-701 |
COLLAR, SPRING (SHOWA) (R.) Price: $29.09 |
| 5 |
51403-KF0-003 |
SEAT, SPRING (SHOWA) Price: $6.02 |
| 6 |
51410-K99-A01 |
PIPE, FR. FORK Price: $99.75 |
| 7 |
51411-K99-A01 |
SPRING, REBOUND Price: $2.29 |
| 8 |
51412-MB4-003 |
RING, BACK-UP (SHOWA) Price: $11.69 |
| 9 |
51414-MFJ-A51 |
BUSH, GUIDE Price: $9.11 |
| 10 |
51415-K99-A01 |
BUSH, SLIDER Price: $3.89 |
| 11 |
51420-K99-A71 |
CASE, R. FR. (LOWER) Price: $994.18 |
| 12 |
51432-MV4-003 |
PIECE, OIL LOCK Price: $16.98 |
| 13 |
51437-KV3-701 |
RING, PISTON Price: $9.04 |
| 14 |
51440-K99-A71 |
PIPE, SEAT Price: $17.96 |
| 15 |
51447-MCG-003 |
RING, OIL SEAL STOP Price: $1.09 |
| 16 |
51454-MM9-671 |
BOLT, FR. FORK Price: $46.47 |
| 17 |
51480-K99-A71 |
FORK SUB, R. FR. Price: $345.95 |
| 18 |
51490-K99-A01 |
SEAL SET, FR. FORK Price: $13.13 |
| 19 |
51520-K99-A71 |
CASE, L. FR. (LOWER) Price: $994.18 |
| 20 |
51580-K99-A71 |
FORK SUB, L. FR. Price: $345.95 |
| 21 |
51611-KF0-003 |
BOOT, FR. FORK (NOT AVAILABLE) Price: $70.29 |
| 22 |
51612-KF0-003 |
BAND, FR. FORK BOOT (NOT AVAILABLE) Price: $13.20 |
| 23 |
90108-KZ4-J40 |
BOLT, FLANGE (8X40) Price: $2.44 |
| 24 |
90116-KV3-701 |
BOLT, SOCKET (8MM) (SHOWA) Price: $4.89 |
| 25 |
90544-283-000 |
WASHER, SPECIAL (8MM) (SHOWA) Price: $3.27 |
| 26 |
91254-KF0-003 |
DUST SEAL, FR. FORK Price: $24.02 |
| 27 |
91356-KF0-003 |
O-RING (21.7X3.5) (SHOWA) Price: $4.73 |
| 28 |
93500-03020-0A |
SCREW, PAN (3X20) Price: $0.87 |
