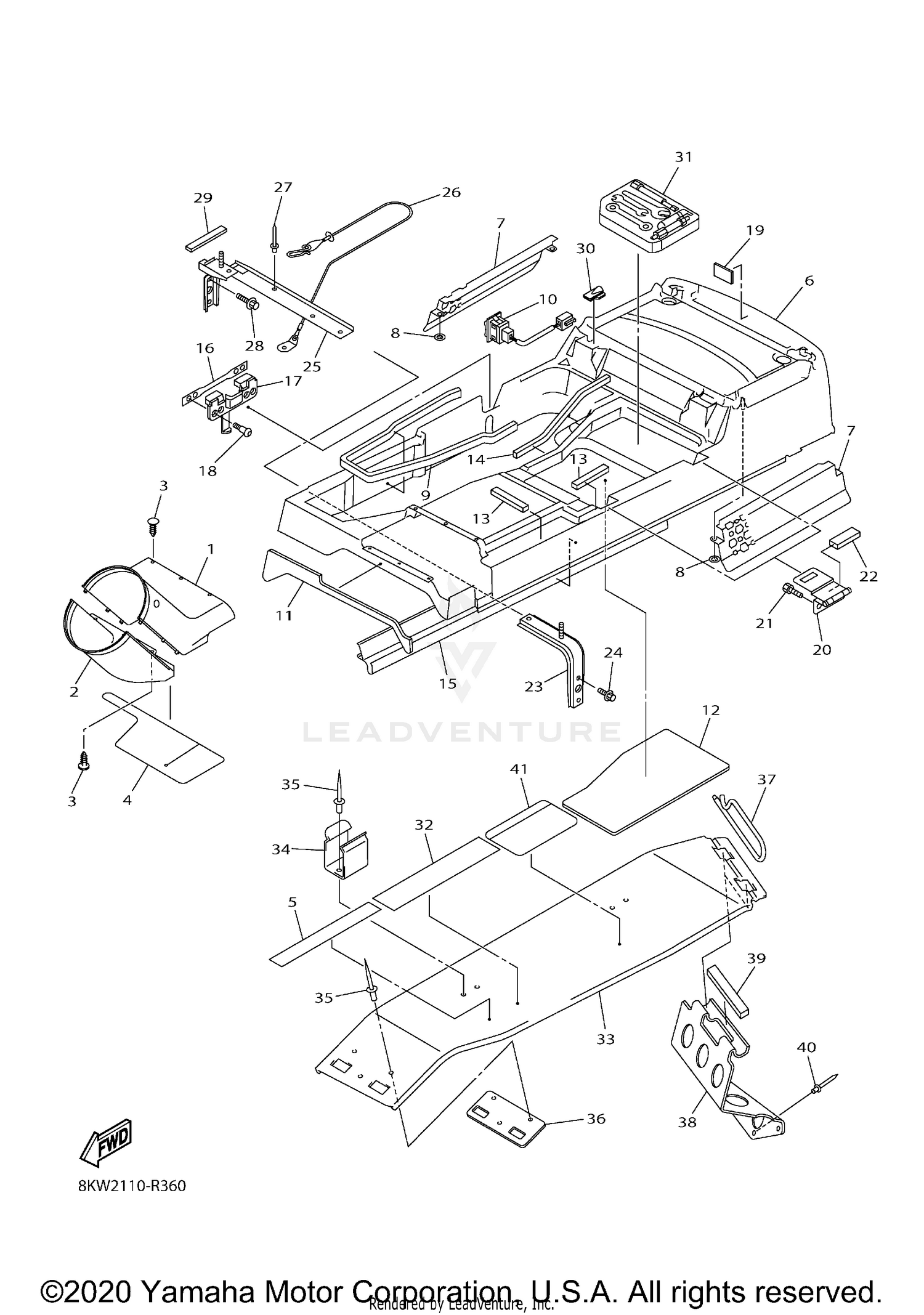

| Ref | Part Number | Description |
|---|
| 1 |
8KW-1246A-00-00 |
COVER 1 Price: $31.99 |
| 2 |
8KW-1246E-00-00 |
COVER 2 Price: $31.99 |
| 3 |
90269-05055-00 |
RIVET Price: $9.49 |
| 4 |
8KW-77261-00-00 |
LINING, SHROUD 1 Price: $19.49 |
| 5 |
8HF-1417E-00-00 |
LABEL, CAUTION Price: $2.85 |
| 6 |
8FN-77390-11-00 |
LUGGAGE BOX ASSY Price: $799.99 |
| 7 |
8FN-77133-00-00 |
LOUVER 3 Price: $31.99 |
| 8 |
90183-05068-00 |
NUT, SPRING Price: $11.49 |
| 9 |
8EN-83669-00-00 |
INSULATOR Price: $6.49 |
| 10 |
8ET-82917-00-00 |
SWITCH Price: $201.99 |
| 11 |
8FN-77262-00-00 |
LINING, SHROUD 2 Price: $19.49 |
| 12 |
8FN-77263-00-00 |
LINING, SHROUD 3 Price: $74.99 |
| 13 |
8FN-241A3-00-00 |
SEAL 3 Price: $2.30 |
| 14 |
8FN-241A4-00-00 |
SEAL 4 Price: $8.49 |
| 15 |
8FN-2196T-00-00 |
TRIM 1 Price: $23.99 |
| 16 |
8FN-2478C-00-00 |
BAR, SEAT LEVER Price: $41.99 |
| 17 |
8FN-24723-00-00 |
DAMPER, SEAT Price: $30.99 |
| 18 |
90111-05020-00 |
BOLT, HEX. SOCKET BUTTON Price: $4.60 |
| 19 |
5TG-84163-00-00 |
DAMPER Price: $8.49 |
| 20 |
8FN-24772-00-00 |
HINGE ASS'Y Price: $62.99 |
| 21 |
90110-06043-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.15 |
| 22 |
8FN-2414E-00-00 |
SEAL 2 Price: $2.25 |
| 23 |
8FN-2194N-01-00 |
BRACKET, FUEL TANK 1 Price: $61.99 |
| 24 |
95817-08014-00 |
BOLT, FLANGE This part replaces 95812-08014-00. Price: $2.50 |
| 25 |
8FN-2194R-01-00 |
BRACKET, FUEL TANK 2 Price: $170.99 |
| 26 |
8FN-2478E-00-00 |
CABLE, SEAT LOCK Price: $21.99 |
| 27 |
90267-47186-00 |
RIVET, BLIND (4.7X16.4 BLACK) Price: $3.20 |
| 28 |
95817-08014-00 |
BOLT, FLANGE This part replaces 95812-08014-00. Price: $2.50 |
| 29 |
8FN-241A3-00-00 |
SEAL 3 Price: $2.30 |
| 30 |
8FN-24742-00-00 |
GROMMET Price: $28.99 |
| 31 |
8KW-28100-00-00 |
TOOL KIT Price: $107.99 |
| 32 |
8JD-47578-00-00 |
LABEL 1 Price: $3.80 |
| 33 |
8FA-77311-02-00 |
GUARD, DRIVE Price: $60.99 |
| 34 |
8CR-77338-00-00 |
STAY, BELT Price: $6.49 |
| 35 |
90267-48010-00 |
RIVET, BLIND (4.8X12 YELLOW) Price: $2.70 |
| 36 |
8FA-77373-00-00 |
PROTECTOR Price: $4.00 |
| 37 |
8CR-77384-01-00 |
PIN Price: $17.99 |
| 38 |
8FN-21973-00-00 |
HOOK Price: $75.99 |
| 39 |
8CR-77319-00-00 |
DAMPER 1 Price: $0.70 |
| 40 |
90267-47195-00 |
RIVET, BLIND (4.7X16.4 YELLOW) Price: $4.20 |
