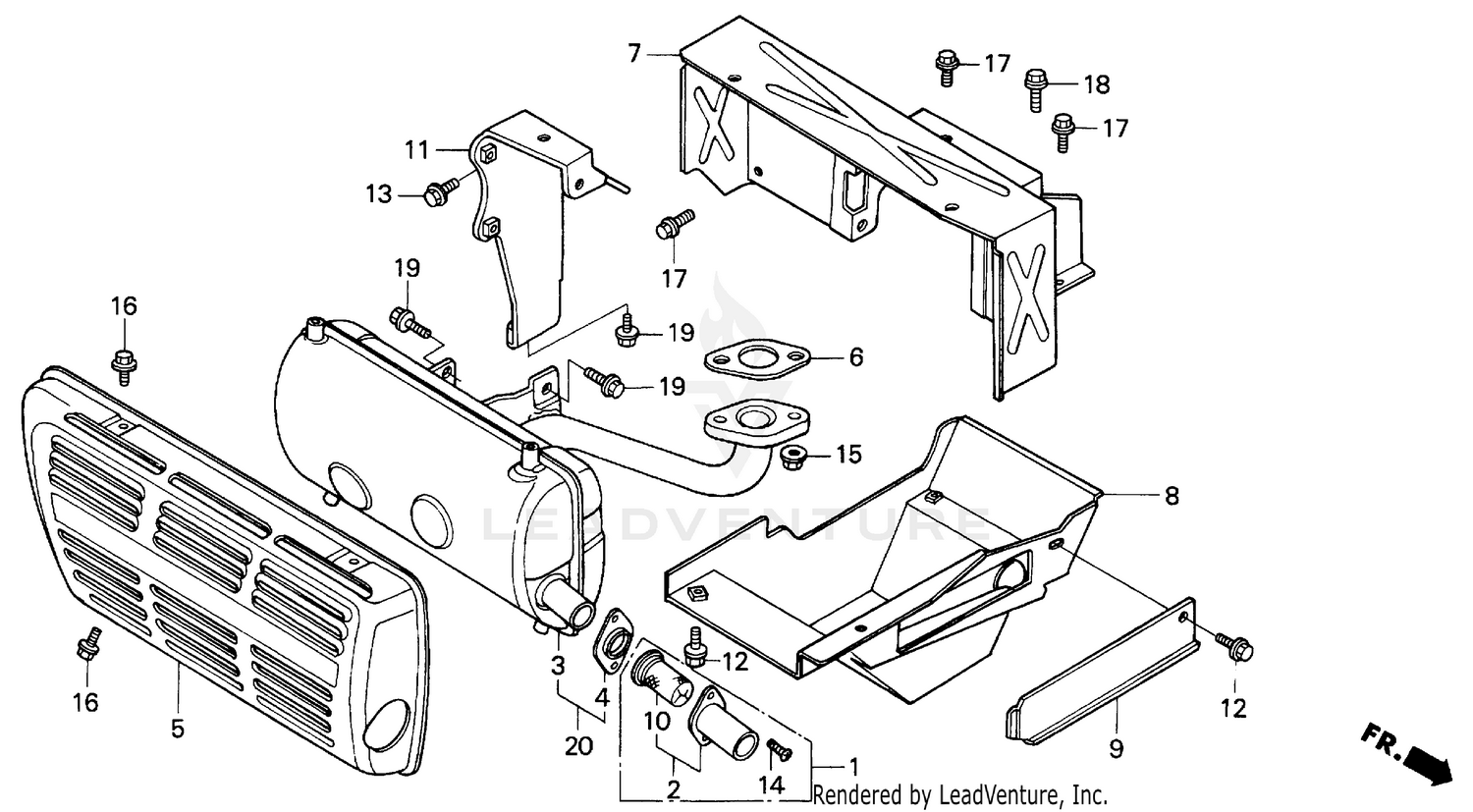

| Ref | Part Number | Description |
|---|
| 3 |
18310-758-700 |
MUFFLER Price: $275.76 |
| 5 |
18321-758-010 |
PROTECTOR, MUFFLER Price: $94.74 |
| 6 |
18333-ZK6-Y00 |
GASKET, EX. PIPE (WACKER) This part replaces 18333-ZE3-800. Price: $5.04 |
| 7 |
18343-758-701 |
PROTECTOR, HEAT (UPPER) Price: $51.00 |
| 8 |
18344-758-701 |
PROTECTOR, HEAT (LOWER) Price: $56.86 |
| 9 |
18346-758-700 |
COVER, PROTECTOR (LOWER) Price: $9.82 |
| 11 |
18521-758-701 |
BRACKET, MUFFLER MOUNTING Price: $80.12 |
| 12 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 13 |
90031-883-000 |
BOLT, FLANGE (8X16) (Honda Code 0674473). Price: $5.74 |
| 15 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
| 16 |
95701-06010-07 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) Price: $2.04 |
| 17 |
95701-06012-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984. Price: $2.04 |
| 18 |
95701-08014-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2411015). Price: $2.20 |
| 19 |
95701-08016-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767). Price: $2.20 |
