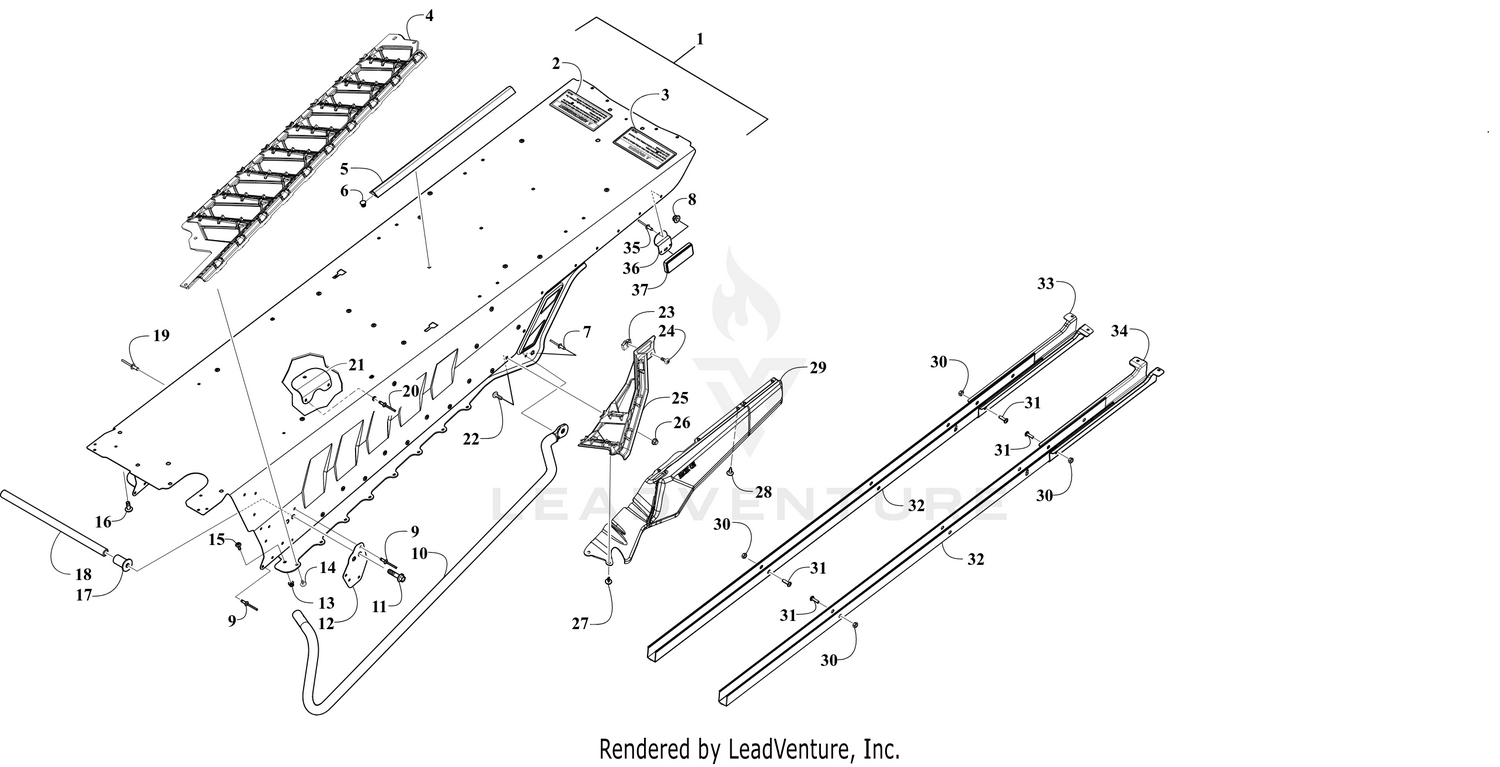

CHASSIS - TUNNEL [111281]

Parts (41)

Ref	Part Number	Description
1	616-00114	Chassis Assembly, 137" - Quick Silver Price: Call Us
2	5611-852	Decal, Warning - Towing (French) Price: $2.54
3	5611-853	Decal, Warning - Towing (English) Price: $2.81
4	2607-062	Running Board - Right Price: $52.95
4	2607-063	Running Board - Left Price: $52.95
5	0630-402	Protector, Harness Price: $6.43
6	1623-795	Clip, Retaining Price: $2.30
7	8060-686	Rivet - Zinc Price: $0.46
8	8427-502	Nut, Lock Price: $1.07
9	1623-241	Rivet Price: $2.05
10	616-00097-002	Tube, Support - Running Board - Right - Quick Silver Price: $100.95
10	616-00098-002	Tube, Support - Running Board - Left - Quick Silver Price: $100.95
11	8409-041	Screw, Cap Price: $2.30
12	4707-454	Bracket, Support - Front Arm - Black Price: $14.95
13	8427-602	Nut, Hex Price: $0.23
14	2623-017	Screw, Self-Tapping Price: $1.45
15	8477-616	Screw, Machine Price: $0.71
16	8476-820	Screw, Machine Price: $1.08
17	3604-233	Bushing, Flared Price: $19.35
18	3604-663	Axle, Front Slider Price: $50.95
19	8060-702	Rivet - Black Price: $0.35
20	8060-682	Rivet Price: $0.24
21	616-00212	Bracket, Tunnel Support - Right -Black Price: $179.95
21	616-00213	Bracket, Tunnel Support - Left -Black Price: $179.95
22	8477-516	Screw, Machine Price: $0.71
23	1623-637	Clip, U-Nut Price: $2.61
24	8477-516	Screw, Machine Price: $0.71
25	2607-064	Close Off, Running Board - Right Price: $17.59
25	2607-065	Close Off, Running Board - Left Price: $17.59
26	8427-502	Nut, Lock Price: $1.07
27	2623-146	Screw, Self-Tapping Price: $1.66
28	2623-166	Screw, Self-Tapping Price: $1.66
29	1616-410	Tunnel Flare - Black - Right Price: $40.95
29	1616-411	Tunnel Flare - Black - Left Price: $40.95
30	8427-603	Nut, Lock Price: $0.35
31	8468-635	Screw, Machine Price: $3.38
32	2607-122	Tunnel Protector Price: $44.95
33	2607-164	Tunnel Protector Extension - Right Price: $33.95
34	2607-165	Tunnel Protector Extension - Left Price: $33.95
35	8060-708	Rivet Price: $0.69
36	6716-465	Bracket, Reflector - Rear - Black Price: $12.79
