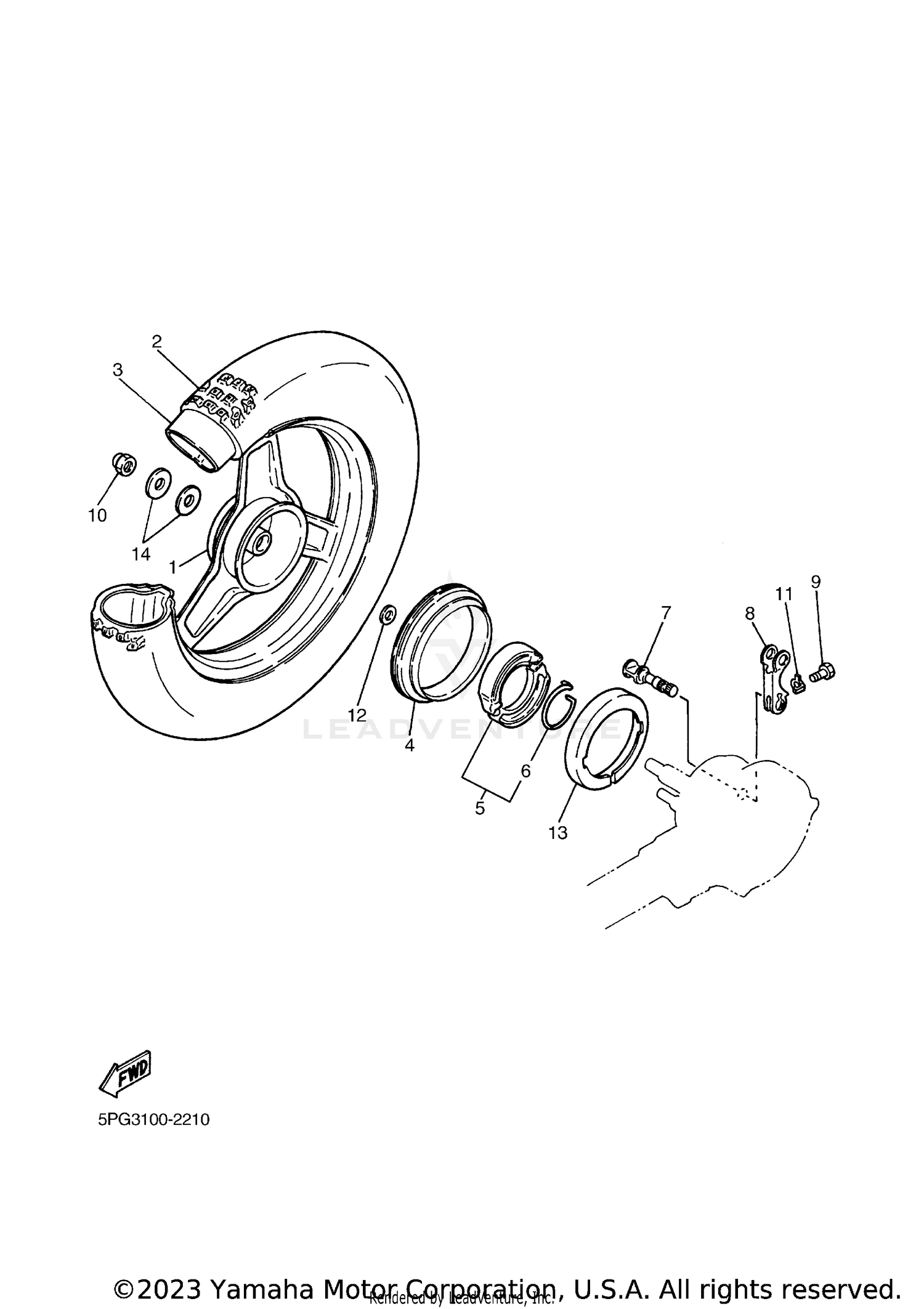

REAR WHEEL
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 2T4-25185-00-00 | RING 1 Price: $24.99 |
| 5 | 3PT-W253A-10-00 | BRAKE SHOE KIT Price: $22.99 |
| 6 | 2E9-25133-00-00 | SPRING, RETURN Price: $8.49 |
| 7 | 3L5-25351-00-00 | CAMSHAFT Price: $39.99 |
| 8 | 3L5-25355-00-00 | LEVER, CAMSHAFT Price: $34.99 |
| 9 | 90101-05396-00 | BOLT Price: $8.49 |
| 10 | 90185-12134-00 | NUT, SELF-LOCKING This part replaces 90185-12046-00. Price: $13.49 |
| 11 | 2E9-25412-00-00 | WASHER Price: $8.49 |
| 12 | 90201-154E8-00 | WASHER, PLATE (T=1.0) This part replaces 90201-15700-00. Price: $9.49 |
| 13 | 4X4-25336-00-00 | RING 2 Price: $31.99 |
