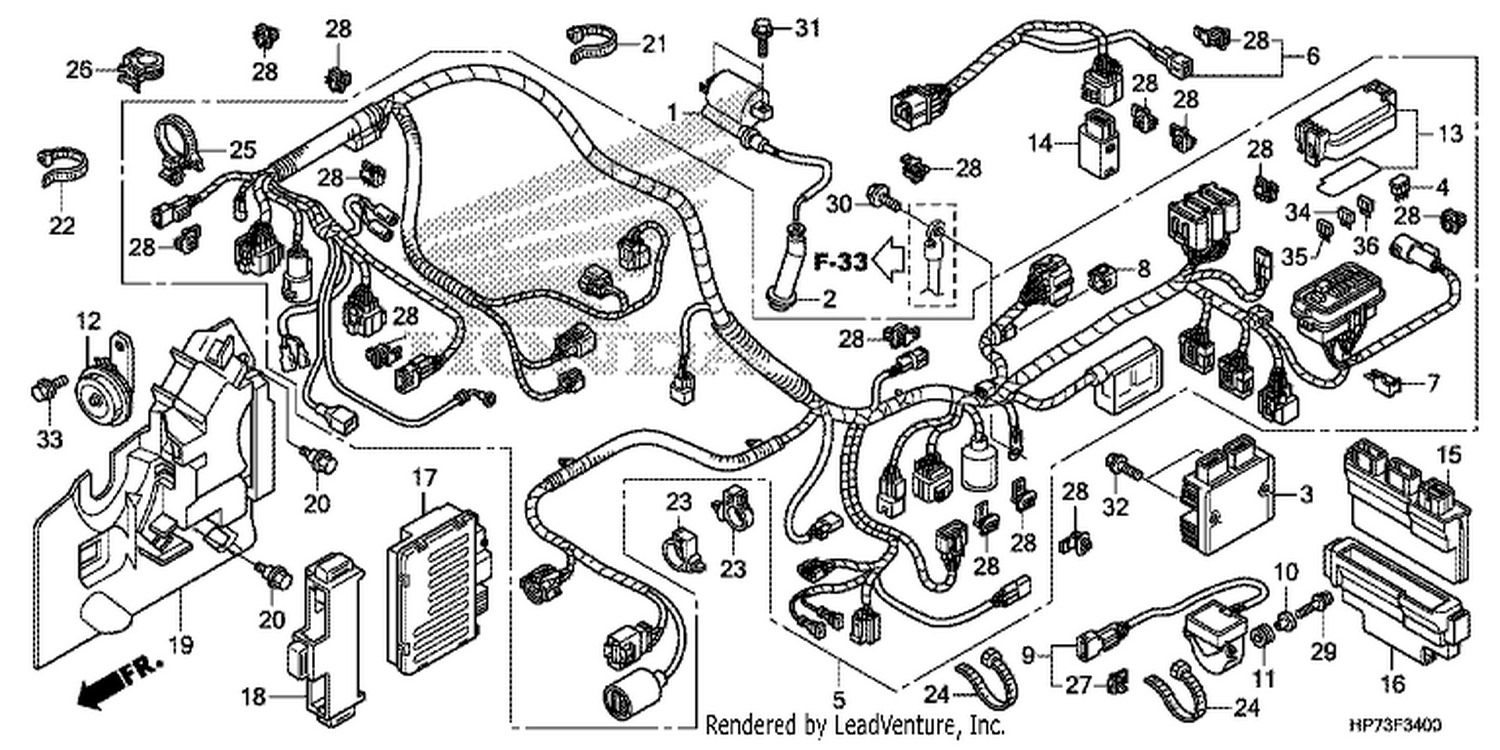

WIRE HARNESS

 WIRE HARNESS

Parts (35)

RefPart NumberDescription
1 30510HP5601 COIL COMP., IGNITION Price: Call Us
2 30700MBN671 CAP ASSY., NOISE SUPPRESSOR Price: Call Us
3 31600HP5601 RECTIFIER ASSY., REGULATOR Price: Call Us
4 31730MAS601 DIODE ASSY., THREE WAY (SUMITOMO) Price: Call Us
5 32100HP7U31 HARNESS, WIRE Price: Call Us
6 32115HP5600 SUB HARNESS, RR. FENDER Price: Call Us
7 32146S84003 CONNECTOR, DIODE (2P)(3A) Price: Call Us
8 32606GEV761 CAP, DUMMY (4P) (RED) Price: Call Us
9 35161HP7A02 SENSOR COMP., BANK ANGLE Price: Call Us
10 35162MN5003 COLLAR Price: Call Us
11 35163MN5003 GROMMET Price: Call Us
12 38110MBV712 HORN ASSY. (HIGH) Price: Call Us
13 38230HP7A00 COVER SET, FUSE Price: Call Us
14 38580HP5601 RELAY, WATER PROOF (15AX2) Price: Call Us
15 38770HP7U04 PGM-FI UNIT Price: Call Us
16 38771HP5600 CUSHION, PGM-FI UNIT Price: Call Us
17 39980HP7U31 EPS UNIT Price: Call Us
18 39981HN2B70 CUSHION, EPS UNIT Price: Call Us
19 39982HP7A30 PROTECTOR, ECU HEAT Price: Call Us
20 90111162000 BOLT, FLANGE, 6MM Price: Call Us
21 90651KV6003 BAND, WIRE, 165MM (BLACK) Price: Call Us
22 90651MA6720 BAND, WIRE HARNESS Price: Call Us
23 90652HC4003 CLAMP, HARNESS Price: Call Us
24 90652KT1771 BAND, WIRE (BLACK) Price: Call Us
25 90672SB2003 STRAP, CABLE, 105MM (BLACK) Price: Call Us
26 90690GHB671 CLIP, CABLE, 25MM Price: Call Us
27 91565S3Y003 CLIP, COUPLER Price: Call Us
28 91565SEL003 CLIP, COUPLER (BLACK) Price: Call Us
29 934010402008 BOLT-WASHER, 4X20 Price: Call Us
30 957010601200 BOLT, FLANGE, 6X12 Price: Call Us
31 957010601800 BOLT, FLANGE, 6X18 Price: Call Us
32 957010602000 BOLT, FLANGE, 6X20 Price: Call Us
33 957010801607 BOLT, FLANGE, 8X16 Price: Call Us
34 9820041000 FUSE, MINI (10A) Price: Call Us
35 9820041500 FUSE, MINI (15A) Price: Call Us
