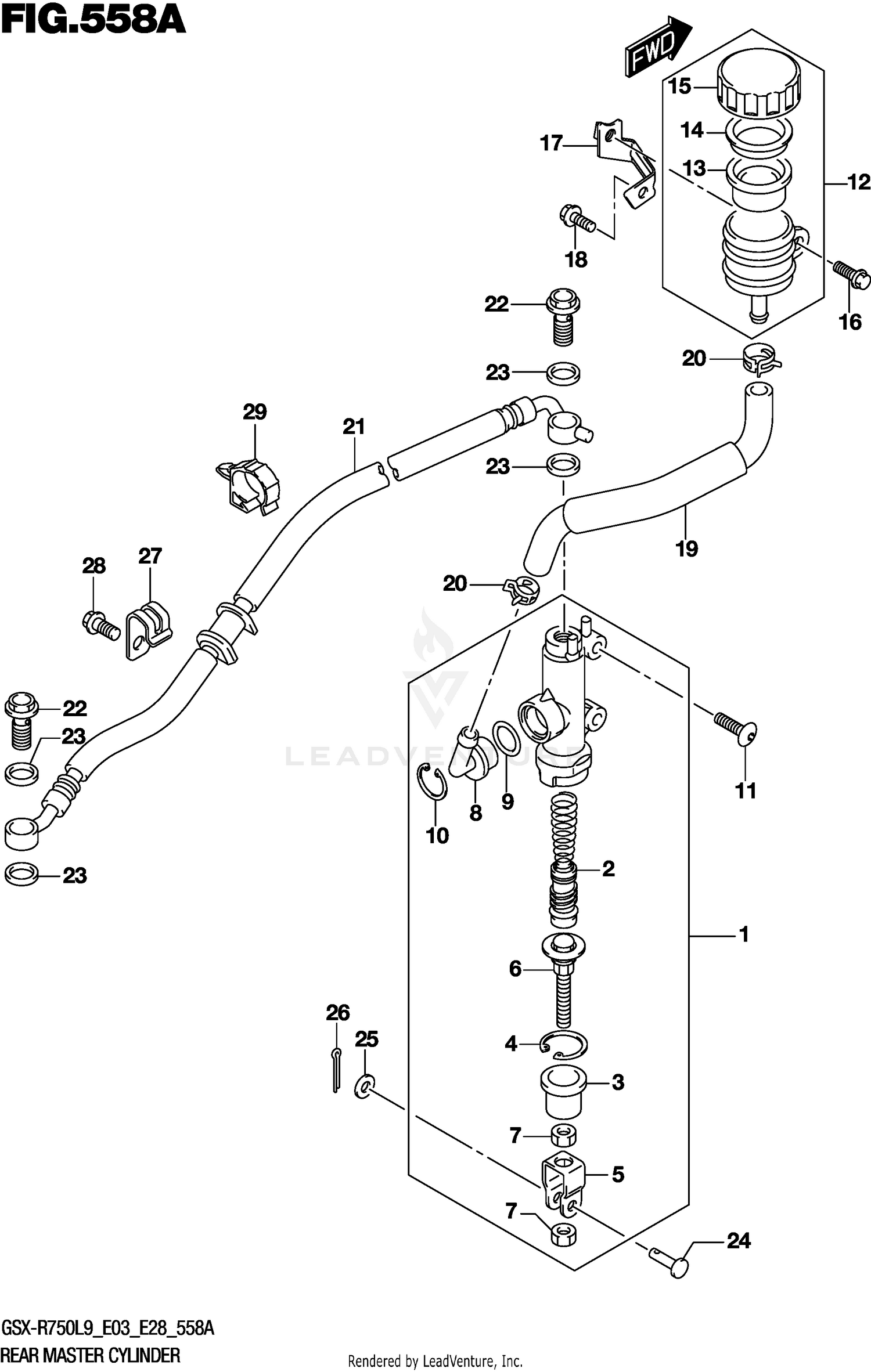

REAR MASTER CYLINDER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 69600-47H31 | CYLINDER ASSY, REAR MASTER This part replaces 69600-47H30. Price: $238.05 |
| 11 | 09139-06125 | SCREW (6X20) Price: $3.62 |
| 12 | 69740-47H00 | TANK ASSY,REAR RESERVOIR Price: $86.43 |
| 16 | 01547-0616A | BOLT Price: $2.45 |
| 17 | 69750-14J00 | BRACKET,RR RESERVOIR TANK Price: $12.73 |
| 18 | 01547-0612A | BOLT Price: $2.45 |
| 19 | 69730-14J00 | HOSE,RR RESERVOIR TANK Price: $32.65 |
| 20 | 09401-12404 | CLIP (ID:12) Price: $2.85 |
| 21 | 69480-14J01 | HOSE This part replaces 69480-14J00. Price: $96.20 |
| 22 | 09360-10062 | UNION (10X1.25X22) Price: $7.84 |
| 23 | 09161-10009 | WASHER (10X15X1.5) Price: $2.22 |
| 24 | 09200-06068 | PIN (6X18.2) Price: $5.01 |
| 25 | 08322-0106A | WASHER Price: $2.22 |
| 26 | 04111-2015A | PIN Price: $1.48 |
| 27 | 69268-21H00 | CLAMP,RR BRAKE HOSE Price: $8.36 |
| 28 | 01547-0612A | BOLT Price: $2.45 |
