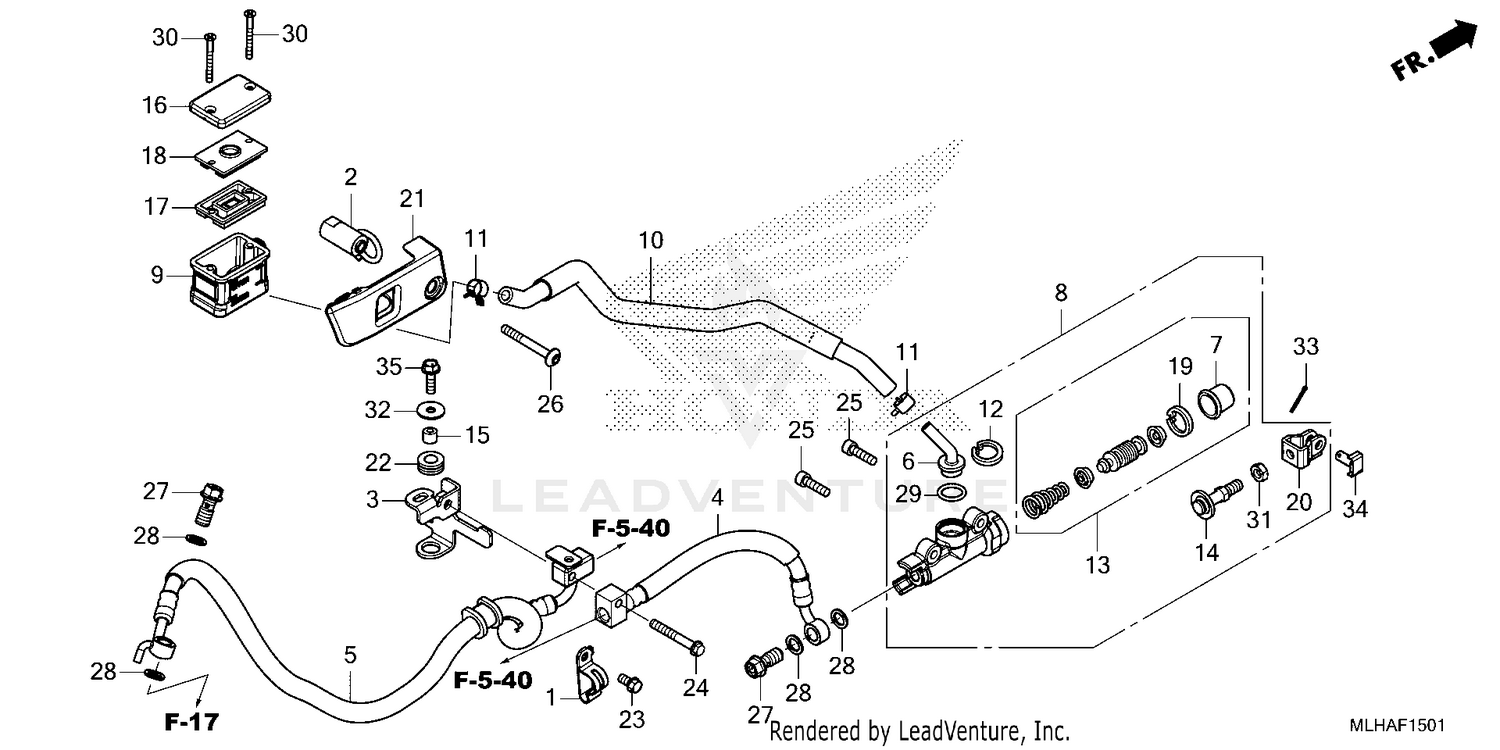

| Ref | Part Number | Description |
|---|
| 1 |
43155-K2Y-A00 |
CLAMP, BRAKE HOSE Price: $1.76 |
| 2 |
43156-K87-A00 |
COLLAR, OIL CUP Price: $7.80 |
| 3 |
43160-K87-L50 |
STAY, RR. BRAKE HOSE Price: $10.16 |
| 4 |
43314-K2Y-J41 |
HOSE A, RR. BRAKE Price: $19.07 |
| 5 |
43317-K2Y-A01 |
HOSE D, RR. BRAKE Price: $34.32 |
| 6 |
43503-KCY-671 |
CONNECTOR Price: $12.71 |
| 7 |
43504-MB2-006 |
BOOT Price: $12.16 |
| 8 |
43510-K87-A01 |
MASTER CYLINDER SUB-ASSY., RR. (NISSIN) Price: $127.24 |
| 9 |
43511-KV3-831 |
CUP, OIL Price: $28.73 |
| 10 |
43512-K87-A01 |
HOSE, RR. MASTER CYLINDER Price: $19.72 |
| 11 |
43514-KS6-701 |
CLAMP, MASTER CYLINDER OIL HOSE Price: $15.89 |
| 12 |
43517-KS6-701 |
CIRCLIP, RR. MASTER CYLINDER (FOR FR.) Price: $4.80 |
| 13 |
43520-MJ6-315 |
PISTON SET, MASTER CYLINDER (NISSIN) Price: $54.98 |
| 14 |
43530-KZZ-901 |
ROD, PUSH Price: $12.96 |
| 15 |
45161-K87-L50 |
COLLAR, BRAKE HOSE STAY Price: $1.87 |
| 16 |
45513-HR0-305 |
CAP, MASTER CYLINDER (COO) Price: $5.22 |
| 17 |
45520-MG7-006 |
DIAPHRAGM Price: $12.84 |
| 18 |
45521-HA2-006 |
PLATE, DIAPHRAGM Price: $13.15 |
| 19 |
46182-MEL-D21 |
CIRCLIP Price: $2.22 |
| 20 |
46504-KV6-702 |
JOINT, BRAKE ROD Price: $9.85 |
| 21 |
50328-K87-A00 |
COVER, OIL CUP Price: $4.44 |
| 22 |
64312-KWW-640 |
GROMMET, MAIN PIPE COVER Price: $1.11 |
| 23 |
90013-GHB-610 |
BOLT, FLANGE (6X12) (L. SIDE ONLY) Price: $2.65 |
| 24 |
90013-GHB-720 |
BOLT, FLANGE (6X45) Price: $1.07 |
| 25 |
90111-GHB-660 |
BOLT, SOCKET (6X22) Price: $1.13 |
| 26 |
90113-K87-A00 |
BOLT, SOCKET SPECIAL (6X50) Price: $0.65 |
| 27 |
90145-MS9-612 |
BOLT, OIL (10X22) (SAGA) Price: $9.20 |
| 28 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 29 |
91212-422-006 |
O-RING (14.8X2.4) Price: $2.93 |
| 30 |
93600-040401G |
SCREW,FLAT,4X40 Price: $0.55 |
| 31 |
94002-080000S |
NUT,HEX 8MM Price: $1.37 |
| 32 |
94103-06000 |
WASHER, PLAIN (6MM) Price: $1.03 |
| 33 |
94201-20150 |
PIN, COTTER (2.0X15) Price: $1.08 |
| 34 |
95015-54000 |
PIN D, JOINT Price: $5.33 |
