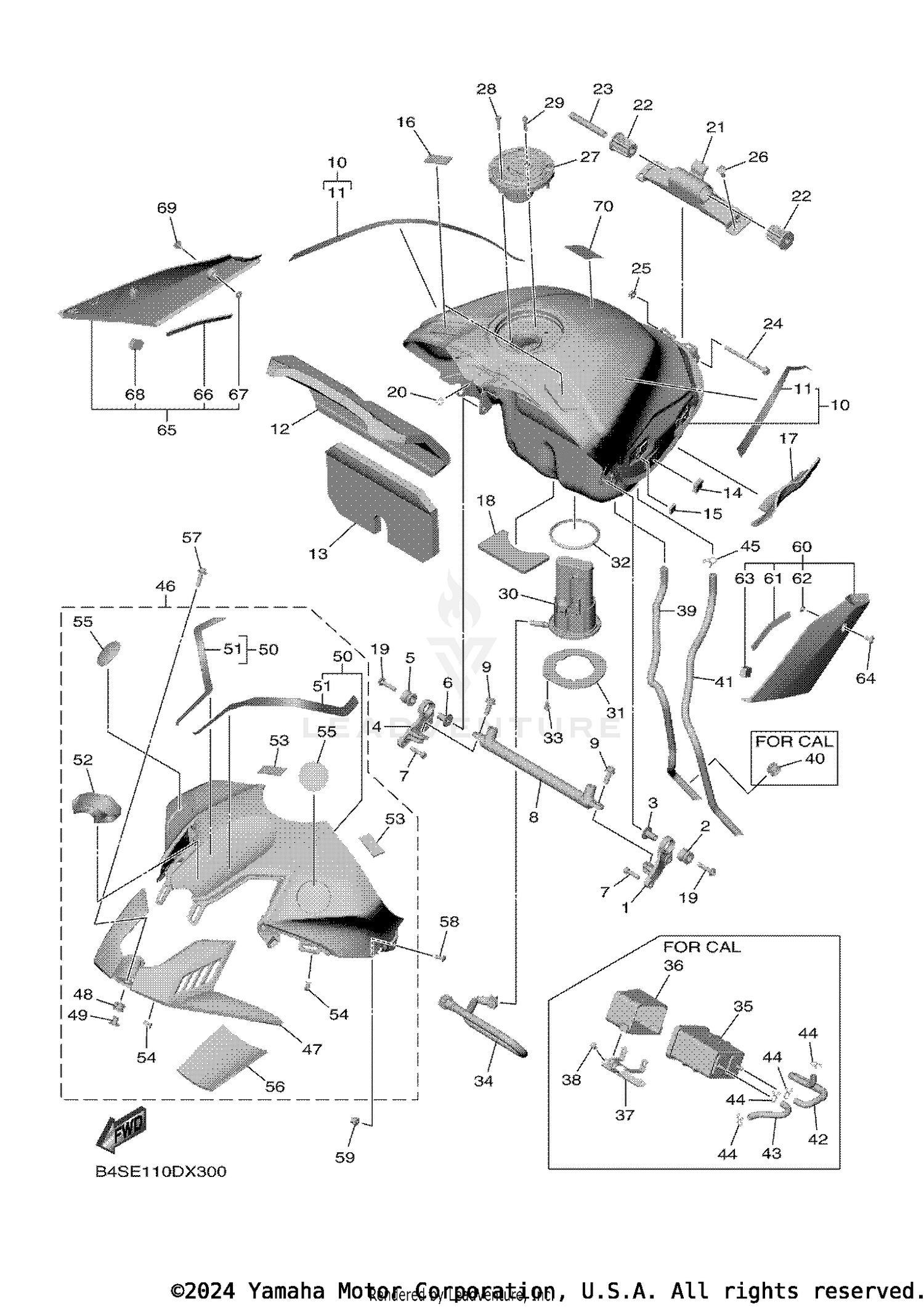

| Ref | Part Number | Description |
|---|
| 1 |
2CR-24191-00-00 |
BRACKET, FUEL TANK 1 Price: $28.99 |
| 2 |
90480-18008-00 |
GROMMET Price: $4.00 |
| 3 |
90387-06091-00 |
COLLAR Price: $9.49 |
| 4 |
2CR-24192-00-00 |
BRACKET, FUEL TANK 2 Price: $24.99 |
| 5 |
90480-18008-00 |
GROMMET Price: $4.00 |
| 6 |
90387-06091-00 |
COLLAR Price: $9.49 |
| 7 |
91317-06025-00 |
BOLT This part replaces 91312-06025-00. Price: $2.65 |
| 8 |
B3L-2142V-00-00 |
CROSS BAR Price: $230.99 |
| 9 |
90110-08097-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 11 |
2KS-24240-00-00 |
GRAPHIC SET Price: $83.99 |
| 12 |
2CR-2414H-00-00 |
DAMPER, PLATE 1 Price: $9.49 |
| 13 |
2CR-2414J-00-00 |
DAMPER, PLATE 2 Price: $5.99 |
| 14 |
4D9-24741-00-00 |
PAD, SEAT Price: $4.70 |
| 15 |
5PW-2411J-01-00 |
DAMPER, SIDE COVER Price: $8.49 |
| 16 |
2PP-2411G-00-00 |
HOOK, SIDE COVER 1 Price: $8.49 |
| 17 |
B3L-24141-00-00 |
PROTECTOR, FUEL TANK Price: $5.49 |
| 18 |
B3L-2414G-00-00 |
SEAL Price: $8.49 |
| 19 |
90110-06346-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 20 |
90183-05M02-00 |
NUT, SPRING Price: $0.50 |
| 21 |
B3L-2413Y-00-00 |
BRACKET, TANK FITTING Price: $43.99 |
| 22 |
5SL-24183-00-00 |
DAMPER, LOCATING 3 Price: $8.49 |
| 23 |
90387-06055-00 |
COLLAR Price: $5.49 |
| 24 |
95812-06090-00 |
BOLT, FLANGE Price: $4.60 |
| 25 |
95702-06500-00 |
NUT, WITH WASHER Price: $2.60 |
| 26 |
90111-06038-00 |
BOLT, HEX. SOCKET BUTTON This part replaces 90111-06071-00. Price: $4.65 |
| 27 |
2CR-24602-01-00 |
CAP ASSY This part replaces 2CR-24602-00-00. Price: $245.99 |
| 28 |
90110-05112-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 29 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 30 |
2CR-13907-01-00 |
FUEL PUMP COMP. Price: $514.99 |
| 31 |
2CR-24491-00-00 |
BRACKET, FUEL PUMP Price: $25.99 |
| 32 |
1RC-24486-00-00 |
O-RING Price: $33.99 |
| 33 |
90119-05015-00 |
BOLT, WITH WASHER Price: $9.49 |
| 34 |
B3L-13971-01-00 |
PIPE, FUEL 1 Price: $52.99 |
| 39 |
2CR-24312-00-00 |
PIPE 2 Price: $18.99 |
| 41 |
2CR-24313-00-00 |
PIPE 3 Price: $12.99 |
| 45 |
90467-090A2-00 |
CLIP Price: $4.75 |
| 48 |
90480-12023-00 |
GROMMET Price: $9.49 |
| 49 |
90387-06203-00 |
COLLAR Price: $9.49 |
| 53 |
5XT-2411G-00-00 |
HOOK, SIDE COVER 1 Price: $12.99 |
| 54 |
90464-04005-00 |
CLAMP Price: $5.49 |
| 55 |
1RC-2413B-02-00 |
EMBLEM This part replaces 1RC-2413B-01-00. Price: $22.99 |
| 56 |
B3L-2414K-00-00 |
DAMPER, PLATE 3 Price: $3.35 |
| 57 |
90110-06233-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 58 |
98902-05014-00 |
SCREW, BIND Price: $1.85 |
| 59 |
90179-05523-00 |
NUT Price: $7.49 |
| 61 |
90520-03016-00 |
DAMPER, PLATE Price: $1.70 |
| 62 |
90387-05035-00 |
COLLAR Price: $8.49 |
| 63 |
4D9-24741-00-00 |
PAD, SEAT Price: $4.70 |
| 64 |
90111-05057-00 |
BOLT,HEX. SOCKET BUTTON Price: $2.45 |
| 66 |
90520-03016-00 |
DAMPER, PLATE Price: $1.70 |
| 67 |
90387-05035-00 |
COLLAR Price: $8.49 |
| 68 |
4D9-24741-00-00 |
PAD, SEAT Price: $4.70 |
| 69 |
90111-05057-00 |
BOLT,HEX. SOCKET BUTTON Price: $2.45 |
