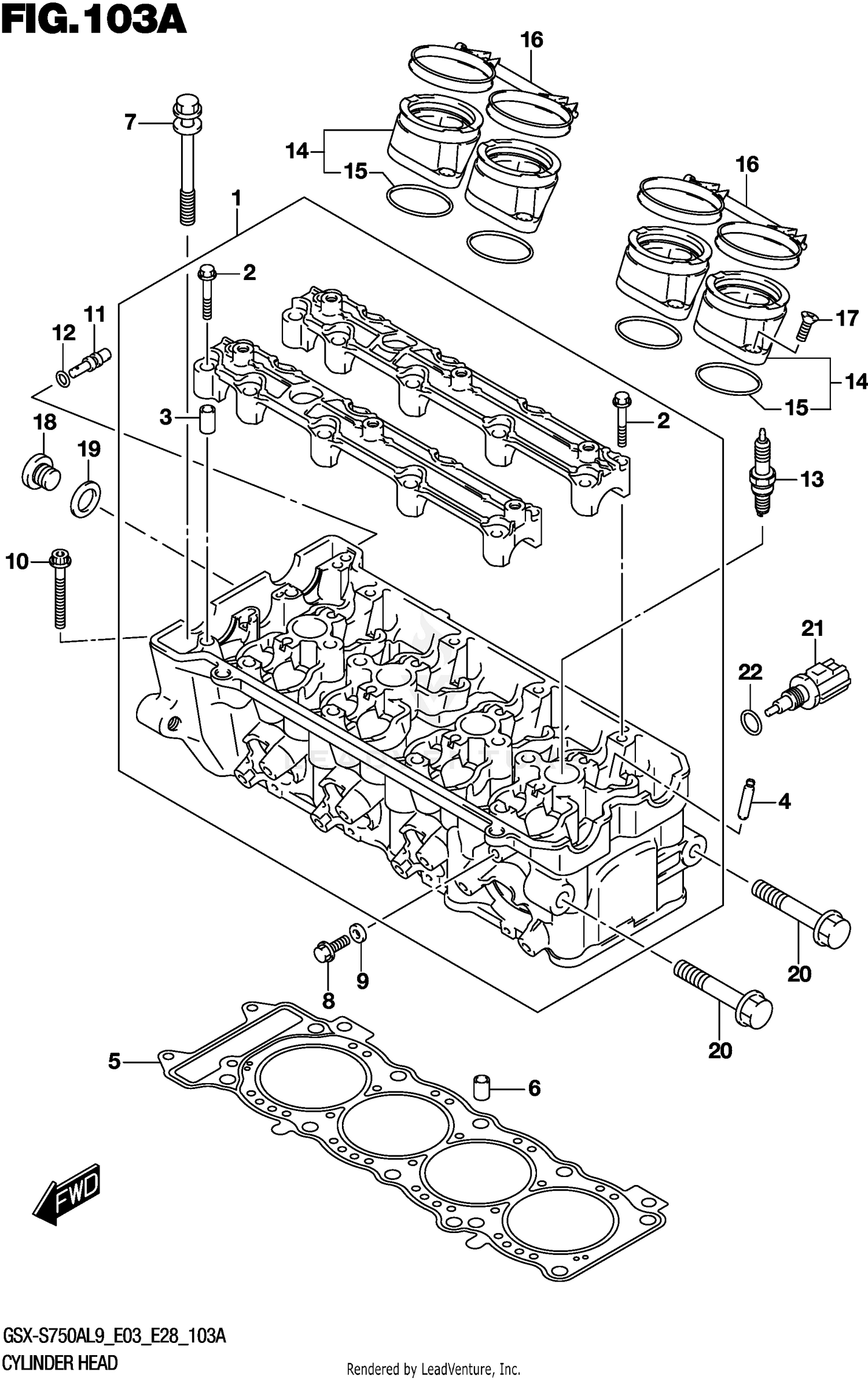

CYLINDER HEAD
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11100-13K00 | HEAD ASSY, CYLINDER Price: $1,537.83 |
| 6 | 04211-11169 | PIN Price: $2.15 |
| 7 | 11117-30G00 | BOLT, CYLINDER HEAD (L:105) Price: $11.50 |
| 8 | 01550-0612A | BOLT Price: $2.37 |
| 9 | 09168-06023 | GASKET (5.8X13X1.2) Price: $2.45 |
| 10 | 07120-0650A | BOLT Price: $3.91 |
| 11 | 09493-80005 | JET (#80) Price: $17.07 |
| 12 | 09280-04004 | O-RING (D:1.2,ID:4) Price: $1.99 |
| 14 | 13101-08J00 | PIPE ASSY, INTAKE Price: $57.16 |
| 15 | 09280-40020 | O-RING (D:2.4,ID:39.7) This part replaces 09280-40010. Price: $3.49 |
| 16 | 13170-08J00 | CLAMP,INTAKE PIPE Price: $31.81 |
| 17 | 02122-0616B | SCREW Price: $2.39 |
| 18 | 09248-16012 | PLUG (16X8) Price: $5.66 |
| 19 | 09168-16009 | GASKET (16X22X0.8) Price: $3.02 |
| 20 | 09106-10094 | BOLT, ENG MTG HEAD (L:50) Price: $5.31 |
| 21 | 13650-49X00 | SENSOR,TEMP Price: $111.41 |
