| Ref | Part Number | Description |
|---|
| 1 |
BRY-14101-00-00 |

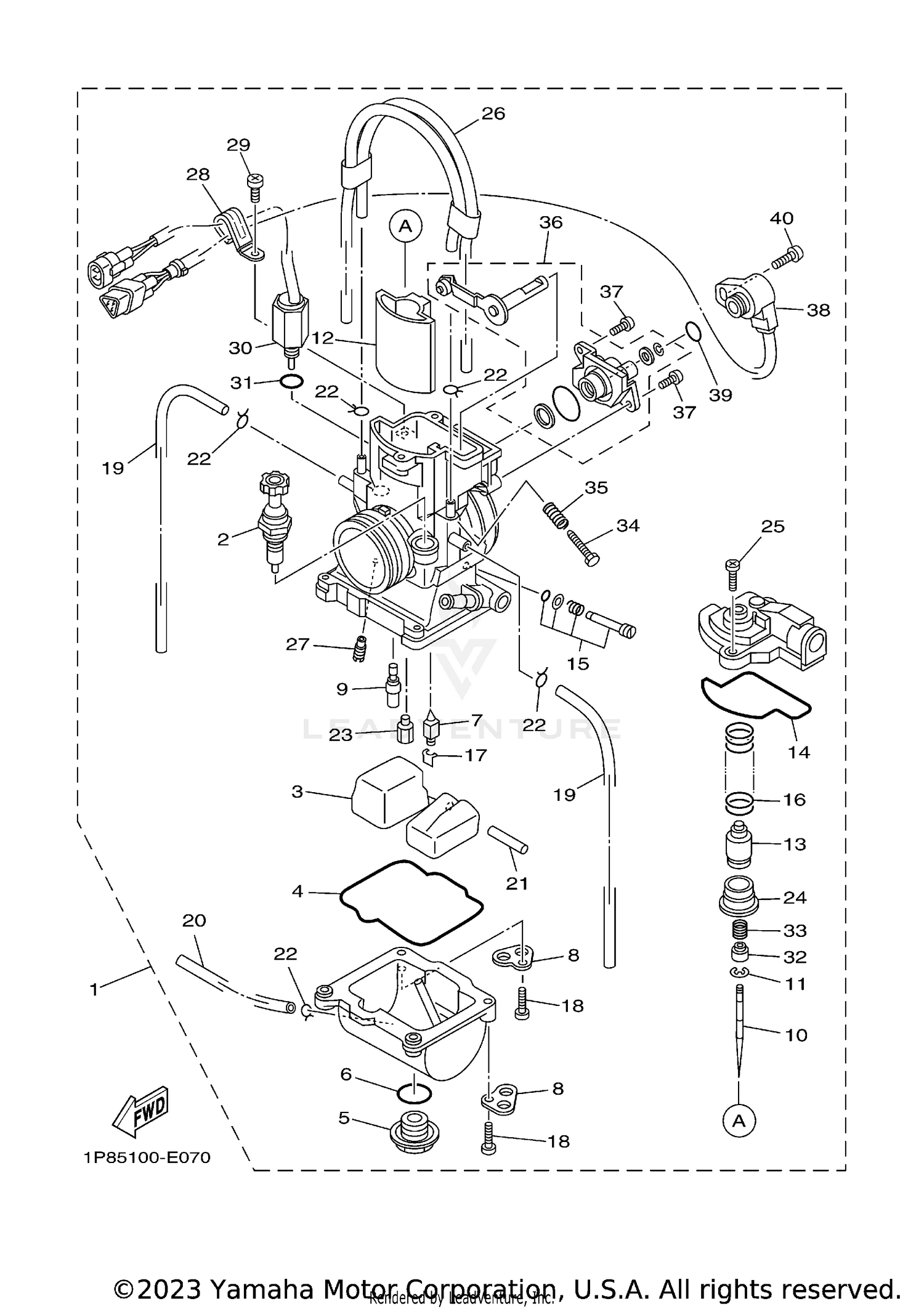

CARBURETOR ASSY 1 Price: $728.99 |
| 2 |
4JT-14171-00-00 |
PLUNGER, STARTER Price: $44.99 |
| 3 |
4SR-14985-00-00 |
FLOAT Price: $73.99 |
| 4 |
4JT-14984-00-00 |
GASKET, FLOAT CHAMBER Price: $31.99 |
| 5 |
4MX-14115-00-00 |
PLUG, SCREW Price: $35.99 |
| 6 |
4MX-14561-00-00 |
O-RING Price: $7.49 |
| 7 |
4MX-14392-00-00 |
PILOT SCREW SET Price: $47.99 |
| 8 |
5BE-14146-00-00 |
PLATE This part replaces 4XL-14146-00-00. Price: $8.49 |
| 11 |
4MX-14919-00-00 |
CLIP Price: $8.49 |
| 12 |
5HC-14340-A7-00 |
VALVE ASSY Price: $203.99 |
| 13 |
5HC-14261-00-00 |
HOLDER Price: $48.99 |
| 14 |
5HC-14126-00-00 |
GASKET Price: $19.99 |
| 15 |
4SR-14105-01-00 |
PILOT SCREW SET Price: $21.99 |
| 16 |
5HC-14131-00-00 |
SPRING, THROTTLE VALVE Price: $28.99 |
| 17 |
633-14159-00-00 |
CLIP This part replaces 663-14159-00-00. Price: $16.49 |
| 18 |
98580-04014-00 |
SCREW, PAN HEAD This part replaces 98502-04014-00. Price: $3.30 |
| 19 |
4XL-14197-10-00 |
PIPE Price: $11.99 |
| 20 |
4XL-14196-10-00 |
PIPE, OVER FLOW 1 Price: $12.99 |
| 21 |
663-14548-00-00 |
PIN, FLOAT ARM This part replaces 676-14548-00-00. Price: $5.55 |
| 22 |
3TJ-14137-40-00 |
CLIP Price: $8.49 |
| 24 |
4MX-14194-00-00 |
RING Price: $25.99 |
| 25 |
98517-04012-00 |
SCREW,PANHEAD This part replaces 98502-04012-00. Price: $4.20 |
| 26 |
4XL-1410E-00-00 |
HOSE Price: $48.99 |
| 28 |
1P8-14146-01-00 |
PLATE Price: $8.49 |
| 29 |
98580-04006-00 |
SCREW, PAN HEAD Price: $3.20 |
| 31 |
4JT-14147-00-00 |
O-RING Price: $5.49 |
| 32 |
5HC-14264-00-00 |
COLLAR Price: $43.99 |
| 33 |
5HC-14275-00-00 |
SPRING Price: $7.49 |
| 34 |
5HC-14922-00-00 |
SCREW, THROTTLE Price: $18.99 |
| 35 |
5HC-14934-00-00 |
SPRING, THROTTLE STOP Price: $8.49 |
| 36 |
1P8-14208-00-00 |
LEVER COMP. 1 Price: $112.99 |
| 37 |
5HC-14216-09-00 |
SCREW Price: $4.96 |
| 38 |
5NX-85885-12-00 |
THROTTLE SENSOR ASSY This part replaces 5NX-85885-11-00. Price: $212.99 |
| 39 |
33D-14562-00-00 |
O-RING This part replaces 5NX-14562-00-00. Price: $8.49 |
