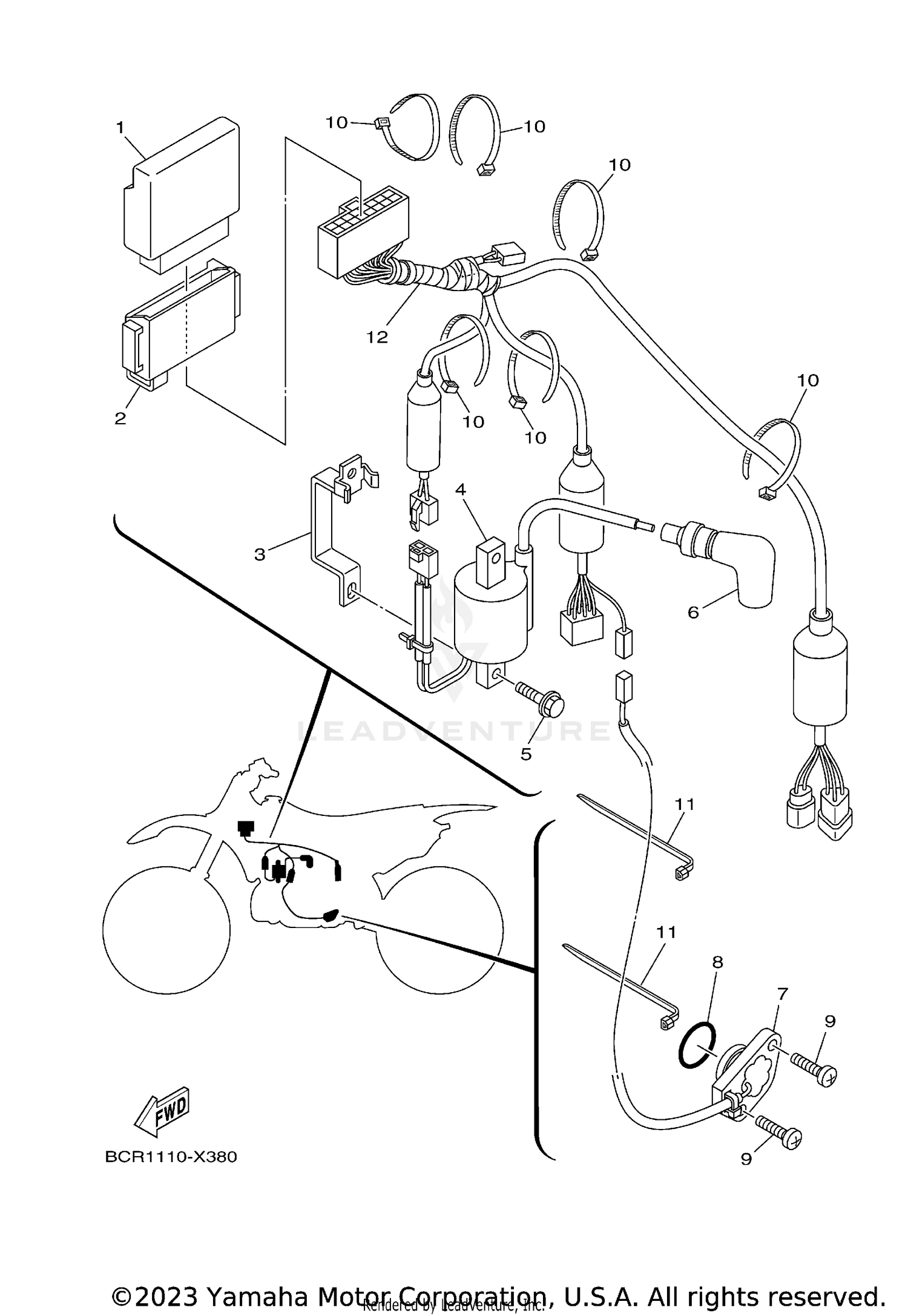

ELECTRICAL 1
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1P8-85540-03-00 | C.D.I. UNIT ASSY This part replaces 1P8-85540-01-00. Price: $324.99 |
| 2 | 1P8-85546-00-00 | BAND Price: $19.99 |
| 3 | 1P8-8231U-10-00 | CORE, SIDE Price: $21.99 |
| 4 | 1P8-82310-03-00 | IGNITION COIL ASSY This part replaces 1P8-82310-02-00. Price: $123.99 |
| 5 | 90105-06060-00 | BOLT, FLANGE Price: $4.20 |
| 6 | 8DG-82370-00-00 | PLUG CAP ASSY Price: $53.99 |
| 7 | 1P8-82540-02-00 | NEUTRAL SWITCH ASSY This part replaces 1P8-82540-00-00. Price: $64.99 |
| 8 | 93210-21001-00 | O-RING Price: $6.49 |
| 9 | 98902-05014-00 | SCREW, BIND This part replaces 90154-05022-00. Price: $1.85 |
| 10 | 90464-15152-00 | CLAMP This part replaces 90465-13275-00. Price: $6.49 |
| 11 | 90464-15195-00 | CLAMP Price: $4.41 |
