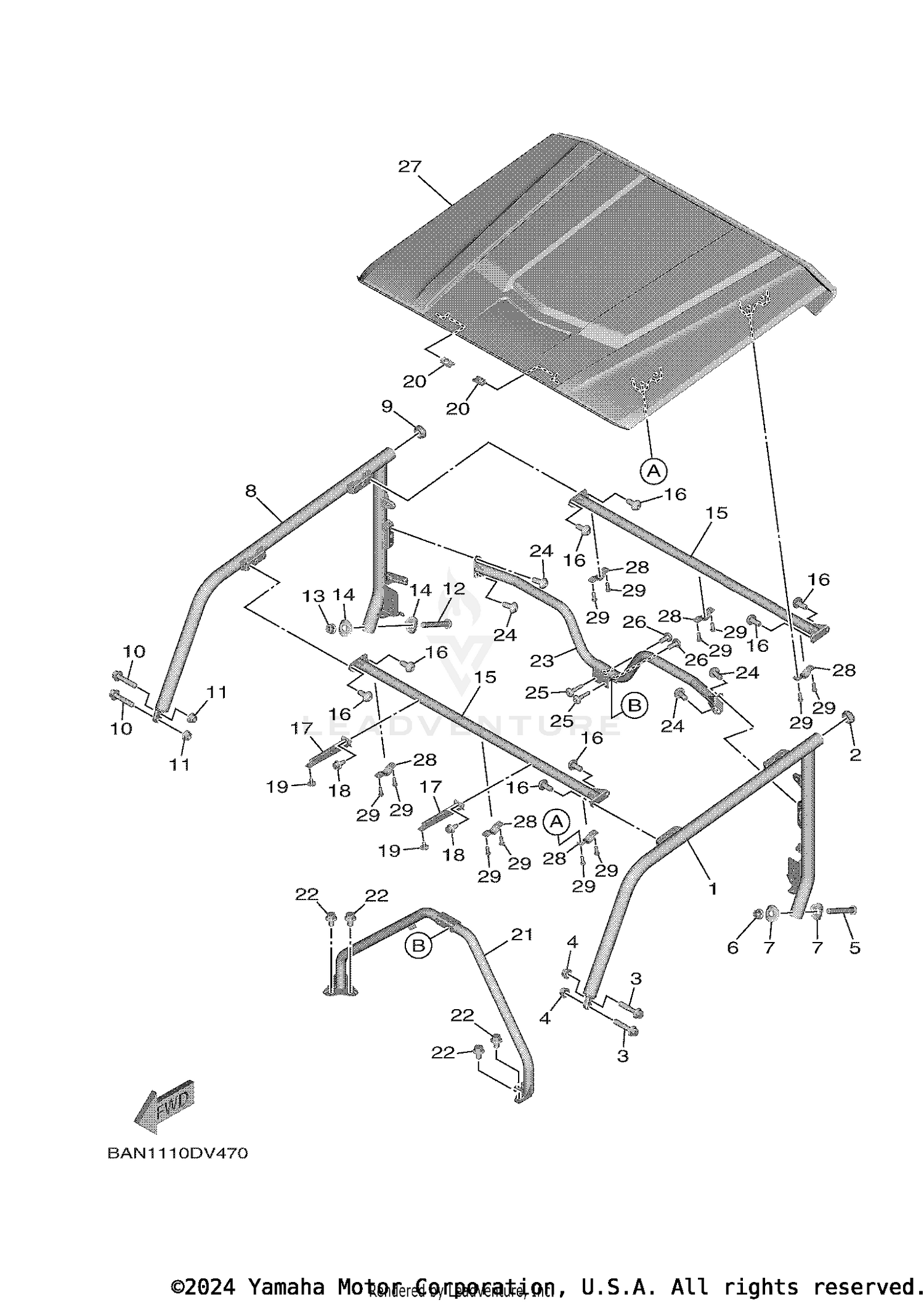

| Ref | Part Number | Description |
|---|
| 1 |
B8K-K831A-10-00 |
SUPPORT, ROOF 3 Price: $698.99 |
| 2 |
B8K-F2417-00-00 |
PLUG Price: $2.70 |
| 3 |
95817-10045-00 |
BOLT, WASHER BASED Price: $6.99 |
| 4 |
90185-10819-00 |
NUT, SELF-LOCKING Price: $1.25 |
| 5 |
92017-10070-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 6 |
90185-10819-00 |
NUT, SELF-LOCKING Price: $1.25 |
| 7 |
1XD-K7526-00-00 |
WASHER 2 Price: $5.99 |
| 8 |
B8K-K831E-10-00 |
SUPPORT, ROOF 4 Price: $700.99 |
| 9 |
B8K-F2417-00-00 |
PLUG Price: $2.70 |
| 10 |
95817-10045-00 |
BOLT, WASHER BASED Price: $6.99 |
| 11 |
90185-10819-00 |
NUT, SELF-LOCKING Price: $1.25 |
| 12 |
92017-10070-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 13 |
90185-10819-00 |
NUT, SELF-LOCKING Price: $1.25 |
| 14 |
1XD-K7526-00-00 |
WASHER 2 Price: $5.99 |
| 15 |
BG4-K8392-12-00 |
MEMBER, ROOF FRAME Price: $142.99 |
| 16 |
90111-10802-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.00 |
| 17 |
B8K-F2567-00-00 |
SUPPORT 1 Price: $7.49 |
| 18 |
90105-08867-00 |
BOLT, FLANGE Price: $1.95 |
| 19 |
90111-06083-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 20 |
90183-060A6-00 |
NUT, SPRING Price: $5.99 |
| 21 |
B8K-K830B-10-00 |
ROOF SUPPORT ASSY Price: $281.99 |
| 22 |
95812-10016-00 |
BOLT, FLANGE Price: $10.49 |
| 23 |
B8K-K831M-10-00 |
REINFORCEMENT, ROO Price: $205.99 |
| 24 |
90111-10802-00 |
BOLT, HEX. SOCKET BUTTON Price: $3.00 |
| 25 |
5UG-K7519-00-00 |
BOLT Price: $3.00 |
| 26 |
5UG-K7573-00-00 |
NUT, SPECIAL Price: $5.49 |
| 27 |
B8K-K8314-00-00 |
COVER, SUN ROOF Price: $242.99 |
| 28 |
BAN-K8366-00-00 |
CLAMP, SUPPORT Price: $9.49 |
