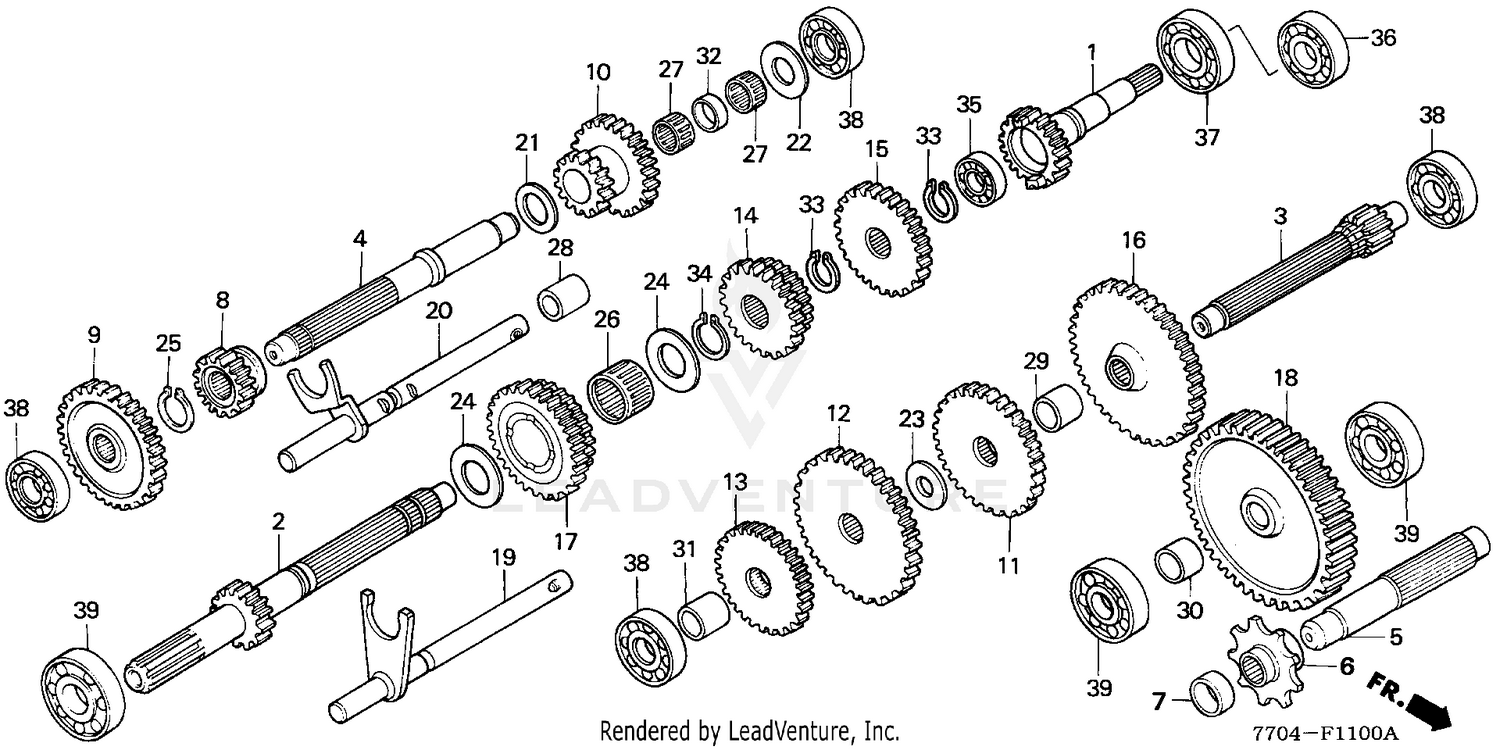

| Ref | Part Number | Description |
|---|
| 1 |
23112-734-000 |
SHAFT, INPUT (22T) Price: $118.48 |
| 2 |
23151-770-000 |
SHAFT, P.T.O. Price: $158.72 |
| 3 |
23221-734-000 |
COUNTERSHAFT (11T) Price: $90.14 |
| 4 |
23231-734-000 |
SHAFT, AUXILIARY Price: $121.34 |
| 5 |
23251-734-000 |
SHAFT, FINAL Price: $90.24 |
| 6 |
23252-733-000 |
SPROCKET, DRIVE (9T) Price: $60.14 |
| 7 |
23253-734-000 |
COLLAR A, FINAL SHAFT Price: $7.94 |
| 8 |
23412-734-000 |
GEAR, CHANGE (17T) Price: $39.54 |
| 9 |
23415-734-A11 |
GEAR, REVERSE IDLE (34T) Price: $54.34 |
| 10 |
23417-734-000 |
GEAR, AUXILIARY IDLE (25T/17T) Price: $77.28 |
| 11 |
23421-734-630 |
GEAR, COUNTERSHAFT FIRST (33T) Price: $70.16 |
| 12 |
23423-734-000 |
GEAR, COUNTERSHAFT SECOND (39T) Price: $67.14 |
| 13 |
23431-770-000 |
GEAR, FIRST DRIVEN (36T) Price: $78.08 |
| 14 |
23451-734-630 |
GEAR, CHANGE (26T/15T) Price: $76.38 |
| 15 |
23455-770-000 |
GEAR, REDUCTION DRIVEN (30T) Price: $81.58 |
| 16 |
23461-734-000 |
GEAR, SECOND IDLE (45T) Price: $75.60 |
| 17 |
23461-770-000 |
GEAR, FIRST IDLE (23T/30T) Price: $149.66 |
| 18 |
23581-734-010 |
GEAR, FINAL (54T) Price: $100.66 |
| 19 |
24110-734-000 |
SHAFT, GEARSHIFT FORK (A) Price: $54.98 |
| 20 |
24120-734-000 |
SHAFT, GEARSHIFT FORK (B) Price: $54.98 |
| 21 |
90446-357-000 |
WASHER, THRUST (17.2MM) (Honda Code 0322180). Price: $4.98 |
| 22 |
90451-166-000 |
SEE PART DETAILS - PRI; WASHER, THRUST (15MM) Price: $2.16 |
| 23 |
90505-734-000 |
WASHER, THRUST (17.2X25) Price: $4.24 |
| 24 |
90454-428-000 |
SEE PART DETAILS - PRI; WASHER, THRUST (20X1.00) Price: $3.34 |
| 25 |
90601-001-000 |
CIRCLIP (OUTER) (17MM) Price: $1.82 |
| 26 |
91051-727-000 |
BEARING, NEEDLE (20X24X17) Price: $34.86 |
| 27 |
91051-734-003 |
BEARING, NEEDLE (17X21X13) Price: $20.62 |
| 28 |
91552-734-000 |
COLLAR, FORK SHAFT Price: $6.18 |
| 29 |
91553-734-000 |
COLLAR, COUNTERSHAFT (A) Price: $5.60 |
| 30 |
91554-734-010 |
COLLAR, FINAL SHAFT (20.8X25.4X11.0) Price: $5.86 |
| 31 |
91555-734-000 |
COLLAR, COUNTERSHAFT (B) Price: $5.86 |
| 32 |
91558-734-000 |
COLLAR, AUXILIARY IDLE GEAR Price: $3.74 |
| 33 |
94510-18000 |
CIRCLIP (OUTER) (18MM) Price: $1.64 |
| 34 |
94510-20000 |
CIRCLIP (OUTER) (20MM) Price: $1.66 |
| 35 |
96100-60010-00 |
BEARING, RADIAL BALL (6001) Price: $10.60 |
| 36 |
96100-60030-00 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6003) Price: $12.46 |
| 37 |
96100-60040-00 |
BEARING, RADIAL BALL (6004) Price: $20.76 |
| 38 |
96100-62020-00 |
SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941). Price: $11.68 |
