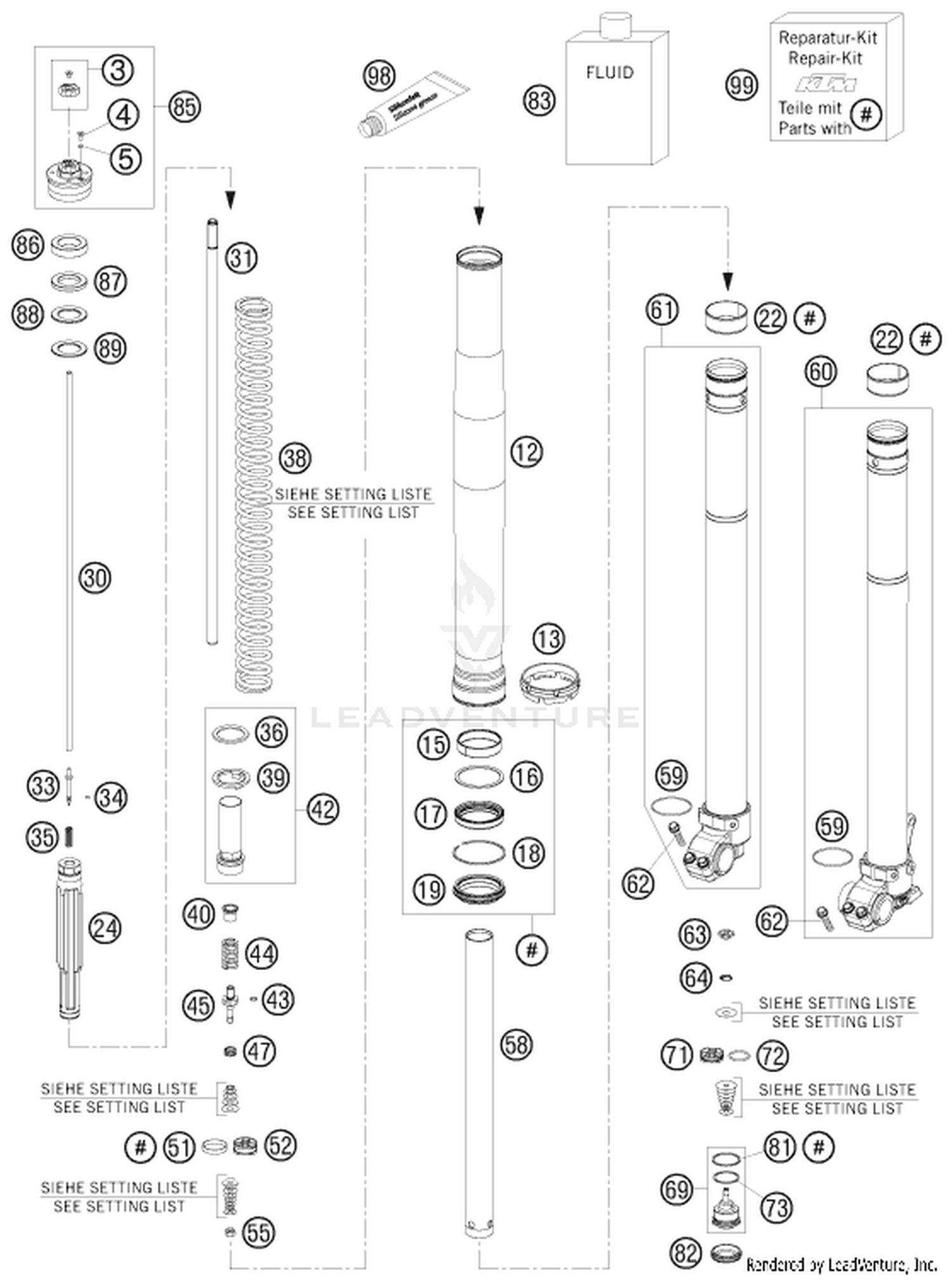

| Ref | Part Number | Description |
|---|
| 3 |
48600812ST |
ADJUSTING KNOB + SCREW This part replaces 48600564S. Price: Call Us |
| 4 |
48600058 |
Cross flat head screw M4x6 Price: Call Us |
| 5 |
48600009 |
O-ring 3,7x1,6 NBR70 Price: Call Us |
| 12 |
48600693 |
OUTER TUBE L577 D54/60MM 2L BL Price: Call Us |
| 13 |
48600698 |
Fork protection ring 62,1mm Price: Call Us |
| 15 |
48601009 |
Guide bushing 48x52x12 This part replaces 48600429. Price: Call Us |
| 16 |
48600013 |
Supportwasher 50x57,6x1,5 Price: Call Us |
| 17 |
S604800001000C1 |
Shaft seal SKF 48x58x11,4 black This part replaces 48600347. Price: Call Us |
| 18 |
48600070 |
Snap ring SB58x1,5 acc drawing Price: Call Us |
| 19 |
S604800000000C1 |
Dirtscarper SKF 48mm black This part replaces 48600400. Price: Call Us |
| 22 |
48601008 |
Guide bushing 47x49x20 This part replaces 48600428. Price: Call Us |
| 24 |
48600557S |
Stop 12,4x31,9x200 cpl. Price: Call Us |
| 30 |
48600730 |
ADJUSTING TUBE L=470 Price: Call Us |
| 31 |
48600729 |
Piston rod 12x504 Price: Call Us |
| 33 |
48600277 |
Needle 4,5x43,6 Price: Call Us |
| 34 |
48600298 |
O-ring 2x1,5 NBR70 Price: Call Us |
| 35 |
48600444 |
Spring (5,4) 4-23 rebound Price: Call Us |
| 36 |
48600113 |
Washer 32x42x2,5 plastic Price: Call Us |
| 38 |
91410064S |
SPRING D43.2L465 5.2N/MM D5.25 Price: Call Us |
| 38 |
91410065S-00 |
Mainspring D43.2 L465 5.4N/MM Price: Call Us |
| 38 |
91410068S |
SPRING D43.2 L465 5.6N/MM Price: Call Us |
| 39 |
48600021 |
Spring retainer 33,5x43x3 Price: Call Us |
| 40 |
48600525 |
Spring retainer 12,3x19x1,25 r Price: Call Us |
| 42 |
48600600S |
SCREW SLEEVE M29,3X1 L=65 CPL. Not Available Price: |
| 43 |
48600299 |
O-ring 6x1,2 NBR70 Price: Call Us |
| 44 |
48600511S |
Spring (13,9) 17-32 rebound cp This part replaces 48600511. Price: Call Us |
| 45 |
48600513 |
TAP REBOUND 07 Price: Call Us |
| 47 |
48600382 |
Spring (11,4) 0,4-8 valve Price: Call Us |
| 51 |
48600060 |
Pistonring 26x28x5 Price: Call Us |
| 52 |
48600042 |
Piston 6,05x27,65x12 rebound Price: Call Us |
| 55 |
40540486 |
Nut M6x0,5 h6,5 WAF10 rebound Price: Call Us |
| 58 |
48600081 |
TUBE 29,3X1X390 D=8,5MM Price: Call Us |
| 59 |
48600048 |
O-ring 46x2 NBR70 siliconized Price: Call Us |
| 60 |
48600534S2 |
AXLE CLAMP L/S + TUBE CPL. 08 Price: Call Us |
| 61 |
48600238S3 |
AXLE CLAMP R/S + TUBE CPL.08 Price: Call Us |
| 62 |
0025080256 |
HH collar screw M8x25 Price: Call Us |
| 63 |
48600163 |
Nut valve M6x0,5 h6,5 WAF17 Price: Call Us |
| 64 |
48600202 |
Spring (8,5) l6,5 valve Price: Call Us |
| 69 |
48600586S3 |
Compression, cmpl. This part replaces 48600586S. Price: Call Us |
| 71 |
48600047 |
Piston 6x27,8x9 compression Price: Call Us |
| 72 |
46811499 |
O-ring 21x2 NBR70 Price: Call Us |
| 73 |
35480320 |
O-ring 24x2 NBR70 Price: Call Us |
| 81 |
48600004 |
Copper disc 29,5x33,5x1 Price: Call Us |
| 82 |
48600141 |
Rubber cap 35x10 NBR80 Price: Call Us |
| 83 |
48601166S1 |
Fork Fluid Viscosity 4.0 5L This part replaces 48600765S1. Price: Call Us |
| 85 |
48600558S |
Screw cap M51X1.5 cmpl. 0 Price: Call Us |
| 86 |
48600038 |
Preload bush 26,5x42x10 Price: Call Us |
| 87 |
48600037 |
Preload bush 26,5x42x5 Price: Call Us |
| 88 |
48600036 |
Preload bush 42x26,5x2,5 Price: Call Us |
| 89 |
48600053 |
Preload bush 26,5x42x1,5 Price: Call Us |
| 98 |
T14034 |
Fuchs grease IPR (250g) This part replaces T511. Price: Call Us |
