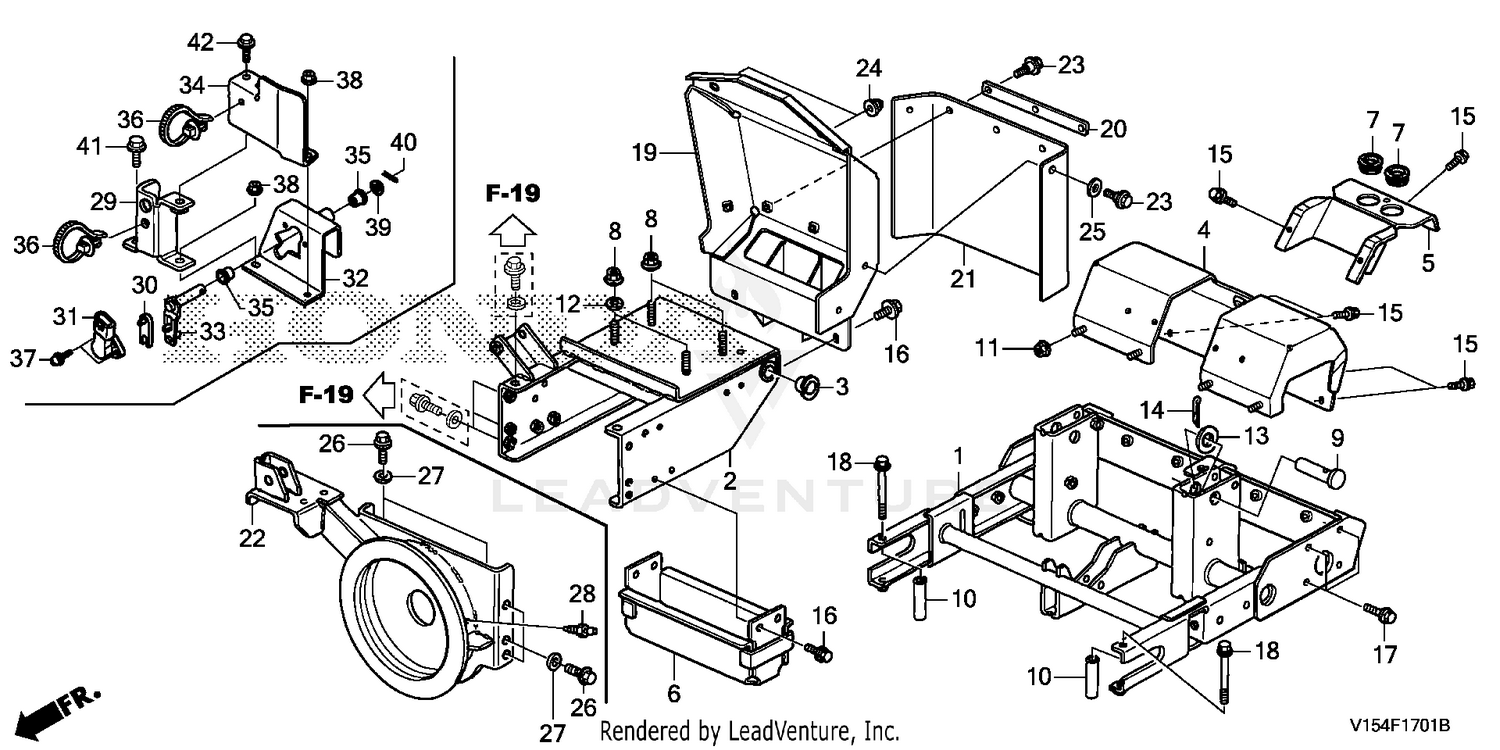

| Ref | Part Number | Description |
|---|
| 1 |
42860-V15-N00 |
FRAME, CRAWLER Price: $506.96 |
| 2 |
50100-V27-000 |
FRAME, MAIN Price: $444.04 |
| 3 |
50154-V15-003 |
BUSH, FRAME Price: $6.82 |
| 4 |
63101-V15-E00 |
COVER, MOTOR Price: $101.86 |
| 5 |
63106-V15-E01 |
COVER, MOTOR (UPPER) Price: $63.42 |
| 6 |
63611-V15-F01 |
COVER, BELT Price: Call Us |
| 7 |
64225-KBV-000 |
GROMMET, TURN SIGNAL (NOT AVAILABLE) Price: $4.09 |
| 8 |
90002-S10-000 |
NUT, FLANGE (10MM) Price: $5.64 |
| 9 |
90751-V15-N00 |
PIN, FRAME Price: $21.96 |
| 10 |
91557-V15-000 |
COLLAR, FRAME CRAWLER Price: $20.92 |
| 11 |
94050-06000 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623). Price: $0.82 |
| 12 |
94101-10000 |
SEE PART DETAILS - PRI; WASHER, PLAIN (10MM) Price: $1.44 |
| 13 |
94101-20000 |
WASHER, PLAIN (20MM) Price: $1.56 |
| 14 |
94201-30350 |
PIN, COTTER (3.0X35) Price: $1.30 |
| 15 |
95701-06012-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277. Price: $2.04 |
| 16 |
95701-08016-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016. Price: $2.26 |
| 17 |
95701-08020-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606. Price: $2.34 |
| 18 |
95701-08085-00 |
BOLT, FLANGE (8X85) Price: $3.28 |
| 19 |
19617-V15-N00 |
GUARD, FAN COVER Price: $98.80 |
| 20 |
51188-V15-J00 |
PLATE, ENGINE GUARD SEAL Price: $12.96 |
| 21 |
51189-V15-J00 |
SEAL, ENGINE GUARD Price: $44.96 |
| 22 |
76735-V27-730ZA |
STAY, HOUSING *NH1* (BLACK) Price: $187.62 |
| 23 |
90140-SA5-000 |
BOLT, SPLASH GUARD Price: $12.22 |
| 24 |
90201-428-900 |
NUT, CAP Price: $2.80 |
| 25 |
94101-10700 |
WASHER, PLAIN (10MM) Price: $1.34 |
| 26 |
90163-S5A-000 |
BOLT, FLANGE (10X20) Price: $1.70 |
| 27 |
90401-437-000 |
WASHER, PLAIN (10MM) (Honda Code 0768051). Price: $3.52 |
| 28 |
96201-10000 |
NIPPLE, GREASE (A.T6) (M6X1.0) Price: $3.18 |
| 29 |
22141-V27-000 |
STOPPER, CLUTCH Price: $35.24 |
| 30 |
24419-V15-000 |
ARM, TURN LEVER Price: $9.60 |
| 31 |
35750-V15-003 |
SENSOR ASSY., ANGLE Price: $115.46 |
| 32 |
50106-V27-000 |
BRACKET, ROLLING SENSOR Price: $75.92 |
| 33 |
50132-V27-000 |
SHAFT, ROLLING SENSOR Price: $67.34 |
| 34 |
53999-V27-000 |
GUARD, FR. COVER Price: $38.22 |
| 35 |
54412-952-770 |
BUSH, CLUTCH LEVER Price: $4.60 |
| 36 |
91507-SNA-003 |
CLIP, HARNESS BAND (164.5MM) (BROWN) Price: $0.72 |
| 37 |
93893-05018-00 |
SCREW-WASHER (5X18) (NOT AVAILABLE) Price: $0.84 |
| 38 |
94050-08000 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143). Price: $1.18 |
| 39 |
94102-08000 |
WASHER, PLAIN (8MM) (Honda Code 0199596). Price: $1.18 |
| 40 |
94201-20220 |
PIN, COTTER (2.0X22) Price: $1.30 |
| 40 |
94201-20350 |
PIN, COTTER (2.0X35) Price: $1.30 |
| 41 |
95701-08016-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016. Price: $2.26 |
